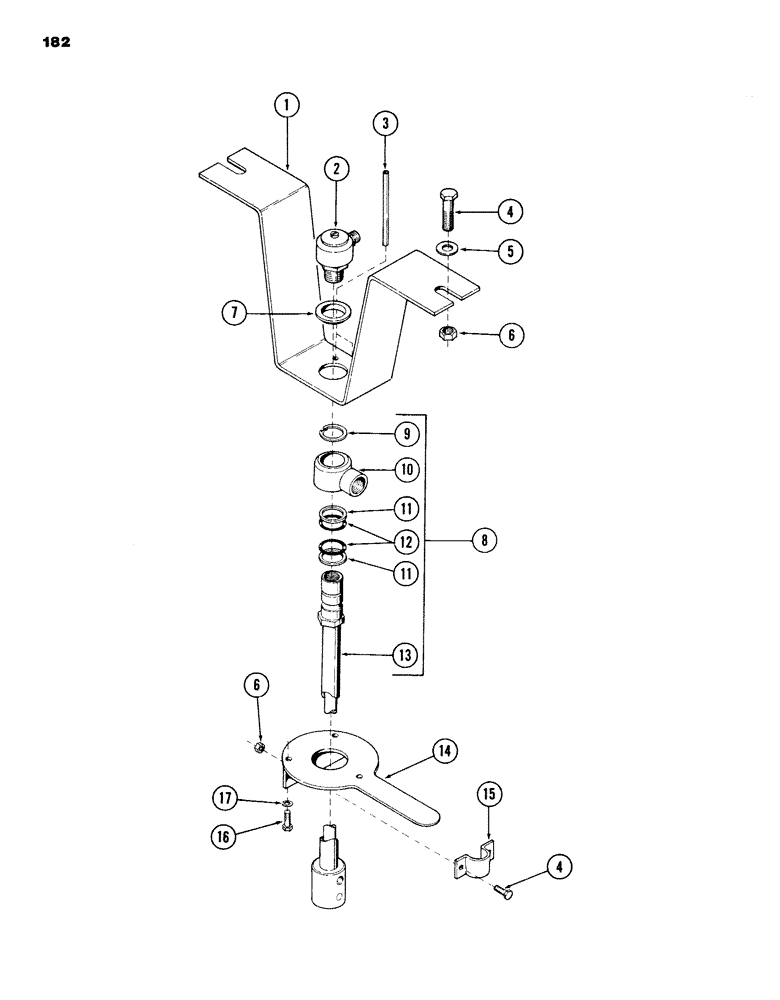

Запчасти Case 980B (182) - INNER SWIVEL, (USED WITH TRACK BRAKE AND HI-LOW RANGE SHIFT), (USED ON UNITS PRIOR TO PIN 6204051) (04) - UNDERCARRIAGE

1

S229692

PLATE

1шт.

2

REF

INSTRUCTION

SWIVEL, service - (for breakdown, see Figure 186)

1шт.

3

138-169

LOCK PIN,5/16" x 4", Slotted

Pin, 5/16" x 4", Slotted

2шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

195-103

WASHER,5/16"

flat - 3/8"

2шт.

6

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

7

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING, nylon

1шт.

8

S229478

SWIVEL CONNECTION

SWIVEL ASSEMBLY, inner, Includes: Ref. 9 - 13

1шт.

9

C13513

RING

retaining

1шт.

10

S111313

SLEEVE

1шт.

11

A35698

BACK-UP RING

RING, back-up

2шт.

12

S6480

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - .737" ID x .939" OD

2шт.

13

S229479

TUBE,0.746" OD x 23.05" L

ASSEMBLY, inner swivel

1шт.

14

S209353

PLATE

lower swivel mounting

1шт.

15

A55980

CLAMP

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

P/N S616976 - PRESSURE REDUCING KIT PRIOR TO PIN 6204250 SEE CE S/B 3-82.

1шт.
