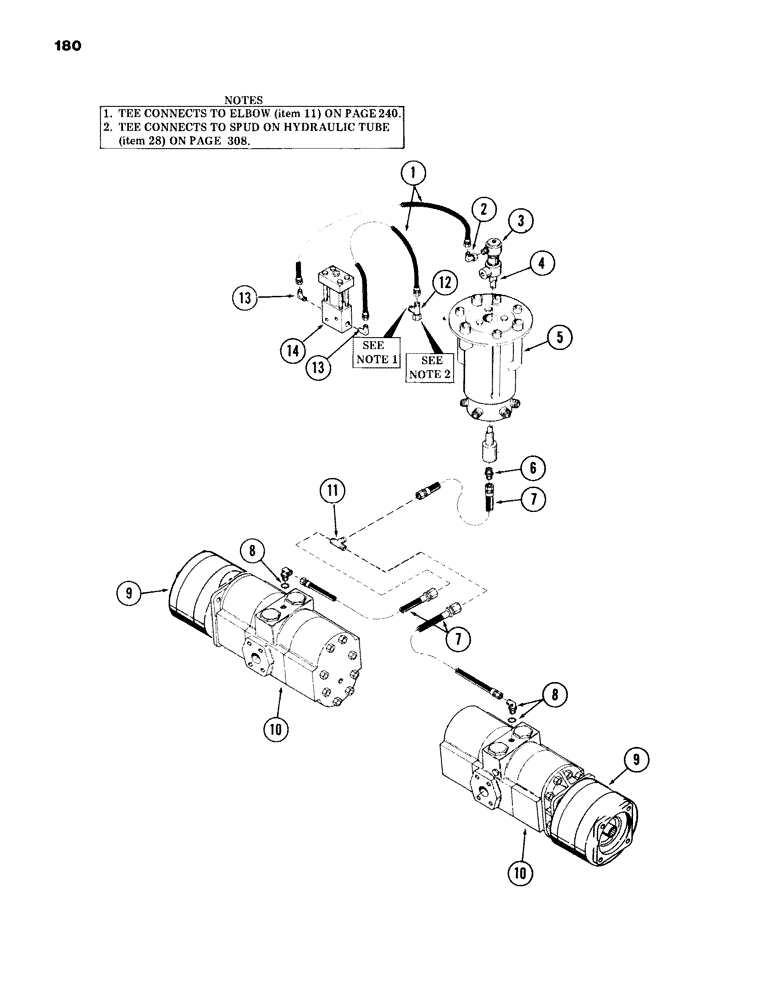

Запчасти Case 980B (180) - TWO SPEED DRIVE MOTOR TUBING, (USED ON UNITS WITH PIN 6204051 AND AFTER) (04) - UNDERCARRIAGE

1

S77121

HOSE

- solenoid valve to service swivel

2шт.

2

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees - 3/8" tube x 9/16" - 18 swivel

1шт.

3

REF

INSTRUCTION

SWIVEL - service - (See Figure 186)

1шт.

4

REF

INSTRUCTION

SWIVEL - inner - (See Figure 184)

1шт.

5

REF

INSTRUCTION

SWIVEL - 7 port hydraulic - (See Figure 324)

1шт.

6

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - 1/2" tube x 3/4" - 16

1шт.

7

S11227

HOSE

- inner swivel to drive motor

3шт.

8

S64376

ELBOW

- 90 degrees - 1/2" tube x 3/4"- 16

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

2шт.

9

REF

INSTRUCTION

BRAKE - track drive - (See Figures 190 and 192)

2шт.

10

REF

INSTRUCTION

MOTOR - track drive - (See Figure 228)

2шт.

11

218-594

TEE,3/4"-16, 37 Degree

- 1/2" tube x 1/2" tube x 3/4" - 16

1шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 3/8" tube x 3/8" tube x 9/16" - 18

1шт.

13

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees - 3/8" tube x 3/8" PT

2шт.

14

REF

INSTRUCTION

VALVE - two speed solenoid - (See Figure 189A)

1шт.
