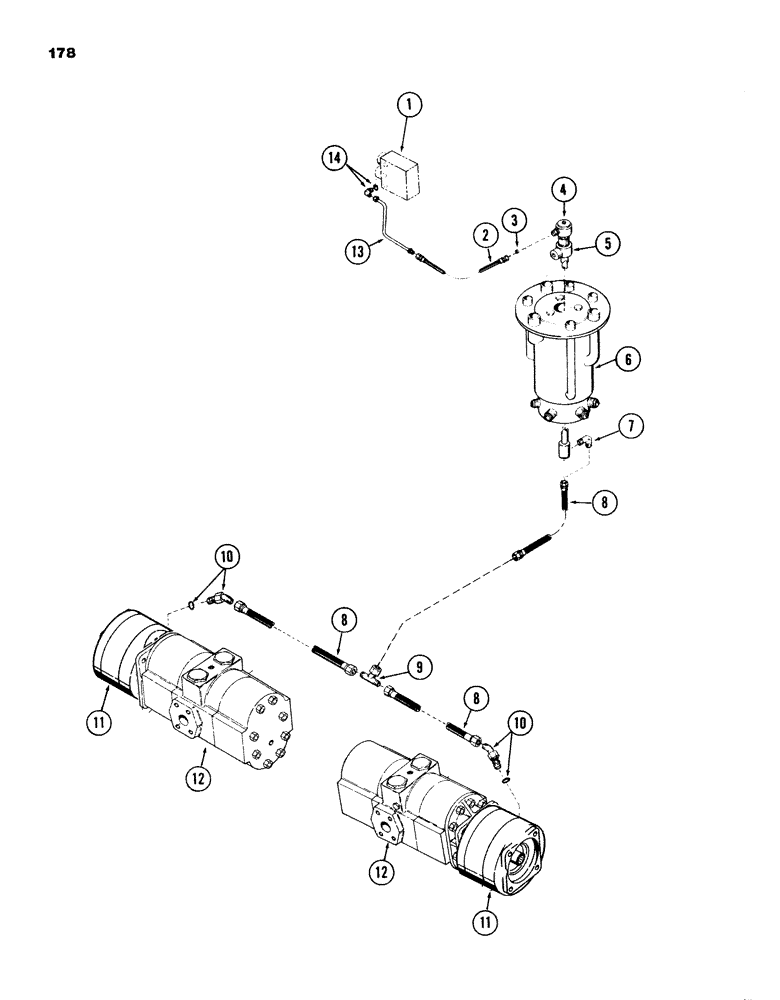

Запчасти Case 980B (178) - DRIVE BRAKE TUBING, (USED ON UNITS WITH PIN 6204051 AND AFTER) (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

VALVE - solenoid monoblock - (See Figure 282)

1шт.

2

S77121

HOSE

- service swivel to solenoid valve

1шт.

3

S89669

VALVE

RESTRICTOR- flow

1шт.

4

REF

INSTRUCTION

SWIVEL - service - (See Figure 186)

1шт.

5

REF

INSTRUCTION

SWIVEL - inner - (See Figure 184)

1шт.

6

REF

INSTRUCTION

SWIVEL - 7 port hydraulic - (See Figure 324)

1шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees 1/4" tube x 1/4" PT

1шт.

8

S77467

HOSE

- inner swivel to drive brakes

3шт.

9

218-591

TEE,7/16"-20, 37 Degree

- 1/4" tube x 1/4" tube x 7/16" - 20

1шт.

10

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degrees - 1/4" tube x 7/16" - 20

2шт.

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

11

REF

INSTRUCTION

BRAKE - track drive - (See Figures 190 and 192)

2шт.

12

REF

INSTRUCTION

MOTOR - track drive - (See Figure 228)

2шт.

13

S231454

TUBE - service swivel to solenoid valve 0.375" OD x 6.36, 6.58" L

1шт.

14

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3/8" tube 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.
