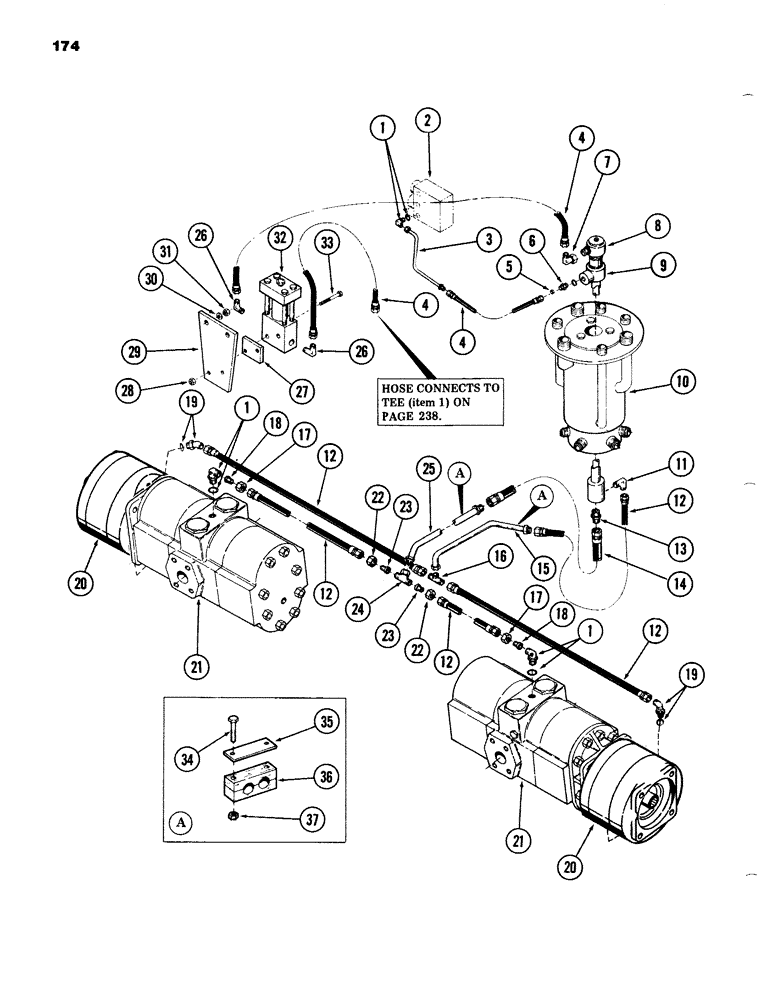

Запчасти Case 980B (174) - HI-LOW RANGE AND DRIVE BRAKE TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (04) - UNDERCARRIAGE

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degrees adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

3шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

2

REF

INSTRUCTION

VALVE, solenoid monoblock, - (for breakdown, see Figure 280)

1шт.

3

S231454

LINE, hydraulic 0.375" OD x 6.36, 6.58" L

1шт.

4

S99421

HOSE ASSY.

HOSE, high pressure - 1/4" ID x 20" long - (with 9/16" - 18 female pressed couplings)

3шт.

5

S89669

VALVE

RESTRICTOR, flow

1шт.

6

S218-5352

CONNECTOR - (3/8" tube) - 9/16" - 18 male - 9/16" 18 female - 37 degrees flared

1шт.

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O-RING" - .351" ID x .495" OD

1шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 degrees swivel - (3/8" tube) - 9/16" - 18 male - 9/16" 18 female - 37 degrees flared

1шт.

8

REF

INSTRUCTION

SWIVEL, service - (for breakdown, see Figure 186)

1шт.

9

REF

INSTRUCTION

SWIVEL, inner - (see Figure 182 for inner swivel and attaching parts)

1шт.

10

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (for breakdown, see Figure 324)

1шт.

11

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degrees - (1/4" tube) - 7/16" - 20 male x 1/8" NPT male - 37 degrees flared

1шт.

12

S77467

HOSE

high pressure - 1/4" ID x 38" long - (with 7/16" - 20 female pressed on couplings)

5шт.

13

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

1шт.

14

D39245

HOSE

high pressure - 3/8" ID x 28" long - (with 3/4" - 16 female pressed on couplings)

1шт.

15

S229168

LINE, hydraulic

1шт.

16

218-591

TEE,7/16"-20, 37 Degree

- (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male x 7/16" - 20 male - 37 degrees flared

1шт.

17

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT, sleeve - (3/8" tube) - 9/16" - 18 female - 37 degrees flared

2шт.

18

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

ADAPTER, reducing - (3/8" x 1/4" tube reduction) - 7/16" - 20 male - 37 degrees flared

2шт.

19

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

45 degrees adjustable - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male - 37 degrees flared

2шт.

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O-RING" - .351" ID x .495" OD

2шт.

20

REF

INSTRUCTION

BRAKE, track drive - (for breakdown, see Figures 190 and 192)

2шт.

21

REF

INSTRUCTION

MOTOR, track drive - (for breakdown, see Figure 228)

2шт.

22

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, sleeve - (1/2" tube) - 3/4" - 16 female - 37 degress flared

2шт.

23

218-791

REDUCER,37 Degree, 1/2" x 1/4" Tube

ADAPTER, reducing - (1/2" x 1/4" tube reduction) - 7/16"

1шт.

24

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

25

S229166

TUBE

LINE, hydraulic

1шт.

26

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degrees - (3/8" tube) - 9/16" - 18 male x 3/8" NPT male - 37 degrees flared

1шт.

27

S106054

BAR

1шт.

28

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

29

S229694

BRACKET

1шт.

S99421

HOSE ASSY.

Hose, Brake Return

1шт.

30

195-103

WASHER,5/16"

flat - 3/8"

2шт.

31

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

32

REF

INSTRUCTION

VALVE, hi-low range selector solenoid - (for breakdown, see Figure 188)

1шт.

33

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

CPSW - 1/4" - 20 NC x 2-1/4" Gr 5

2шт.

34

113-47

CPSW - 1/2" - 13 NC x 3-1/2" Gr 5

4шт.

35

S105360

BAR

2шт.

36

S229163

CLAMP, wood block

2шт.

37

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.
