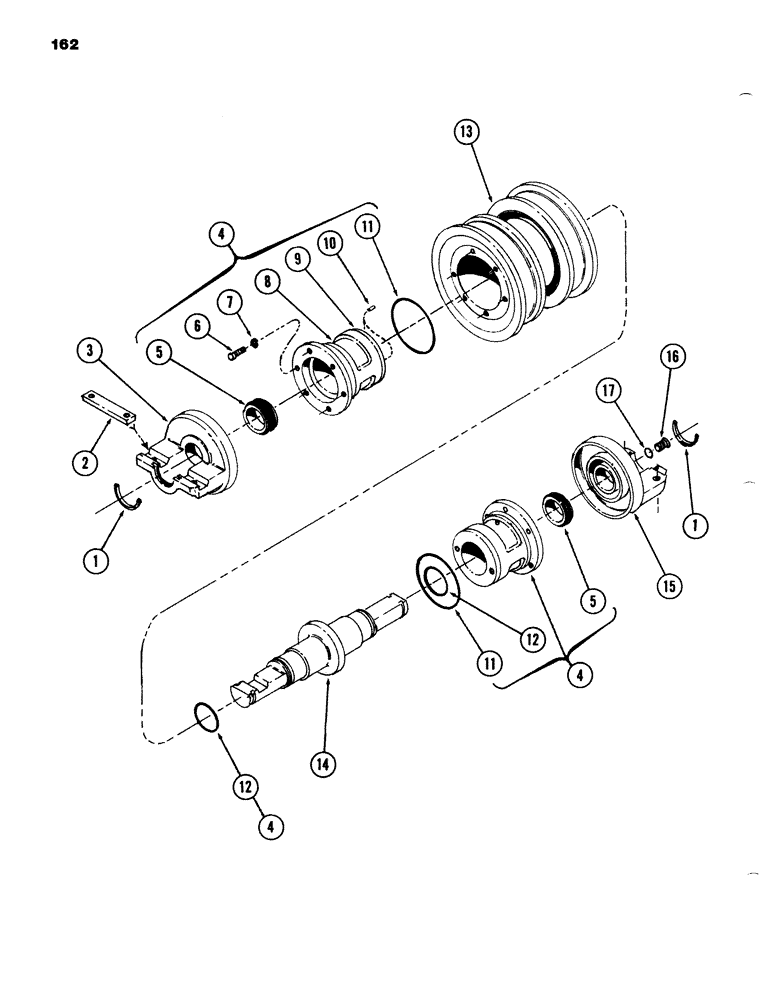

Запчасти Case 980B (162) - DOUBLE FLANGE TRACK ROLLER, TYPE "I" (04) - UNDERCARRIAGE

S507721

ROLLER

- double flange track, Includes: Ref. 1 - 17

4шт.

1

S89317

RING, LOCKING

LOCK - key

2шт.

2

S89310

LOCK

KEY

1шт.

3

S89309

COLLAR

- inner

1шт.

4

S112381

BUSHING

ASSY, Includes: Ref. 5 - 12

2шт.

5

S112384

KIT

SEAL ASSY

1шт.

6

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" NF (Grade 5)

6шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

NSS

NOT SOLD SEPARAT

CASE - bushing

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

10

NSS

NOT SOLD SEPARAT

PIN

2шт.

11

S112382

O-RING

1шт.

12

S112383

O-RING

, Serial Range: (collar-shaft)

2шт.

13

S114841

SHELL

RIM

1шт.

14

S89314

COLLAR

SHAFT

1шт.

15

S89314

COLLAR

- outer

1шт.

16

S113081

PLUG

- o-ring 3/4" NC socket head, Includes: Ref. 17

1шт.

17

S113087

O-RING

1шт.
