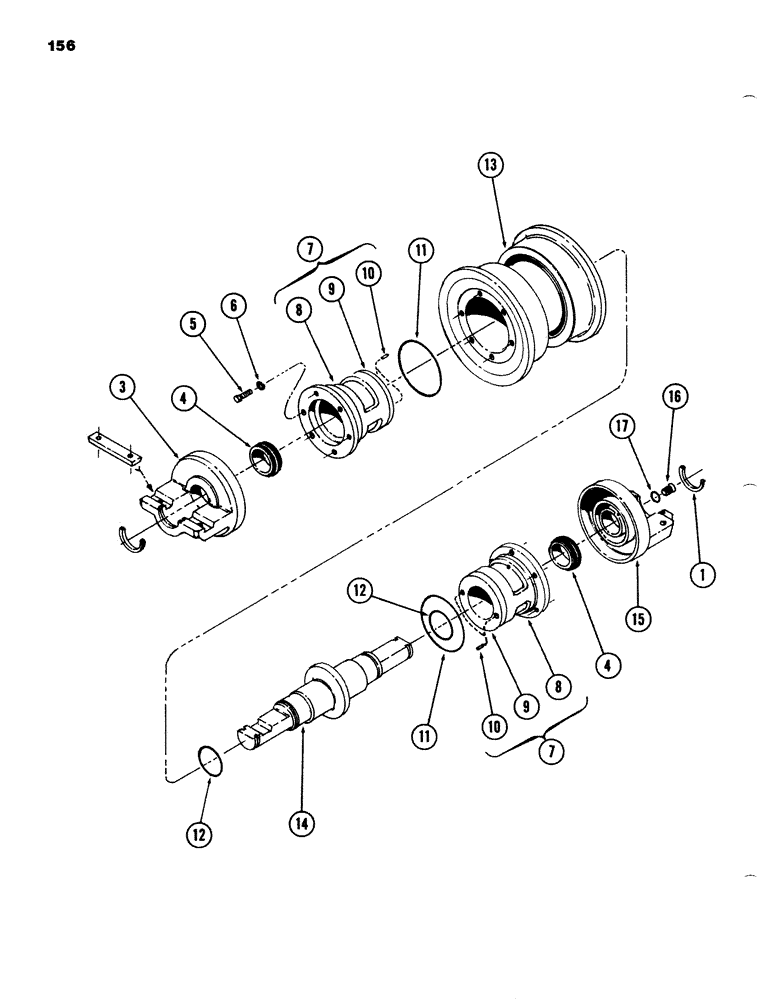

Запчасти Case 980B (156) - SINGLE FLANGE TRACK ROLLER, TYPE "I" (04) - UNDERCARRIAGE

S505093

ROLLER

- single flange track, Includes: Ref. 1 - 17

18шт.

1

S89317

RING, LOCKING

LOCK

2шт.

2

S89310

LOCK

KEY

1шт.

3

S112378

COLLAR - inner

1шт.

4

S112384

KIT

SEAL - set (replaced as a set only)

2шт.

5

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" NF (Grade 5)

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

S112381

BUSHING

ASSY, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

CASE - brushing

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

10

NSS

NOT SOLD SEPARAT

PIN

2шт.

11

S112382

O-RING

2шт.

12

S112383

O-RING

, Serial Range: (collar-shaft)

2шт.

13

S112377

RIM

1шт.

14

S89316

SHAFT

1шт.

15

S89315

BUSHING

COLLAR - outer

1шт.

16

S113081

PLUG

- o-ring 3/4" NC socket head, Includes: Ref. 17

1шт.

17

S113087

O-RING

1шт.
