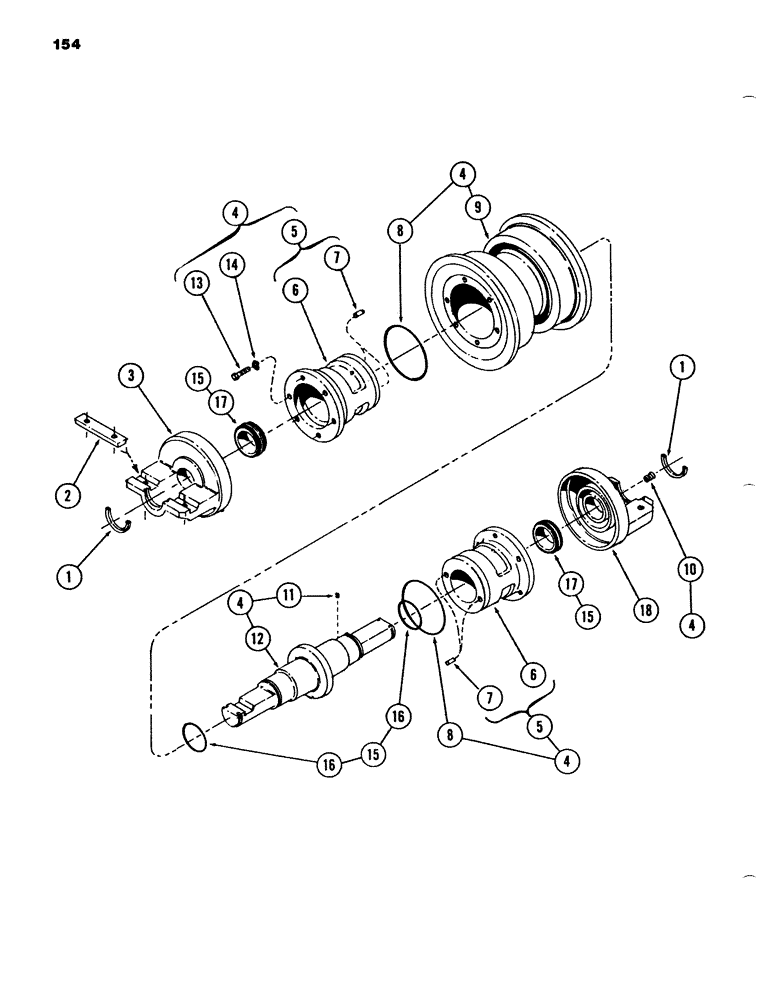

Запчасти Case 980B (154) - SINGLE FLANGE TRACK ROLLER, TYPE "C" (04) - UNDERCARRIAGE

S505093

ROLLER

- single flange track, Includes: Ref. 1 - 17

18шт.

1

S89317

RING, LOCKING

RING

2шт.

2

S89310

LOCK

1шт.

3

S89309

COLLAR

- inner

1шт.

4

S89306

ROLLER

and SHAFT ASSY, Includes: Ref. 5 - 14

1шт.

5

S112381

BUSHING

ASSY, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

BEARING

1шт.

7

S89318

PIN

2шт.

8

S89318

PIN

SEAL

2шт.

9

S112400

RIM

1шт.

10

S87854

PLUG

- 3/4" dia

1шт.

11

S112399

PLUG - shaft

2шт.

12

S89316

SHAFT

1шт.

13

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- 3/8" x 1-1/8" NC (Grade 5)

12шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

15

S209139

SEAL

KIT - seal, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL

2шт.

18

S89314

COLLAR

- outer

2шт.
