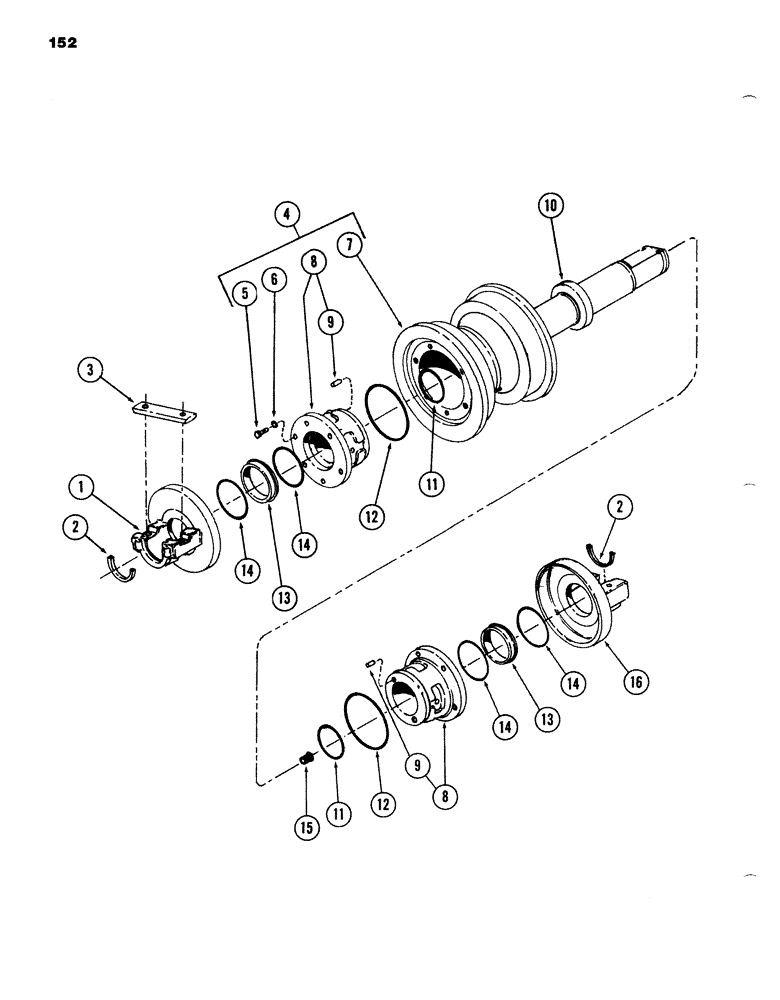

Запчасти Case 980B (152) - SINGLE FLANGE TRACK ROLLER, TYPE "B" (04) - UNDERCARRIAGE

S505093

ROLLER

- single track drive, Includes: Ref. 1 - 16

20шт.

1

S80309

STEM

COLLAR - inner

1шт.

2

S89317

RING, LOCKING

RING - snap, Serial Range: (shaft-collars)

2шт.

3

S89310

LOCK

1шт.

4

S89306

ROLLER

ASSY, Includes: Ref. 5 - 9

1шт.

5

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- 3/8" x 1-1/8" NC (Grade 5)

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

S89307

RIM

1шт.

8

S89315

BUSHING

ASSY, Includes: Ref. 9

2шт.

9

S89318

PIN

2шт.

10

S89316

SHAFT

1шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- collar to shaft

2шт.

12

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- bushing seal

2шт.

13

S95098

SEAL

GROUP, Includes: Ref. 14

2шт.

14

S97896

RING

O-RING

4шт.

15

S87854

PLUG

- pipe 3/4" - 16

1шт.

16

S89314

COLLAR

- output

1шт.
