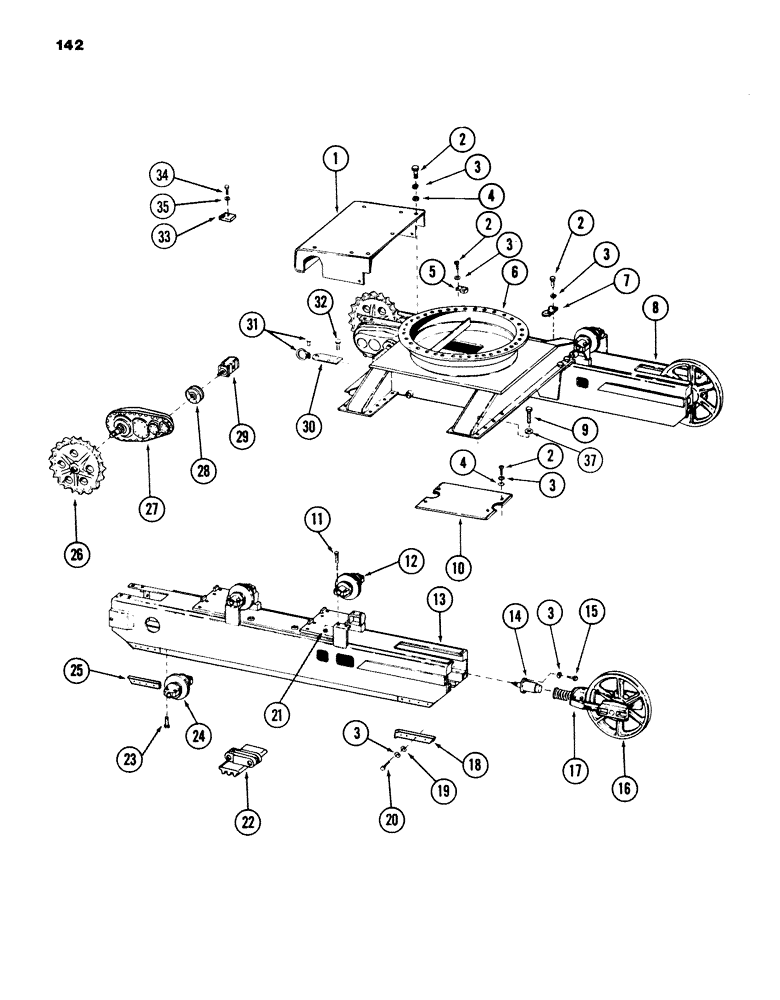

Запчасти Case 980B (142) - CRAWLER UNDERCARRIAGE AND RELATED PARTS (04) - UNDERCARRIAGE

1

S614953

GUARD, motor - (Supercedes S608986)

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

195-105

WASHER,7/16"

flat - 1/2"

1шт.

5

S229180

STOP, track adjusting - (used on units on prior to PIN 6204051)

4шт.

6

S610366

SUPPORT, bearing - (used on units with PIN 6204051 and after)

1шт.

7

S209072

STOP, track adjusting - (used on units prior to PIN 6204051)

2шт.

8

S955131

FRAME ASSY

FRAME, track adjusting - (LEFT HAND) - (used on units with PIN 6204051 and after)

1шт.

S955689

FRAME,. track adjusting - (LEFT HAND) - (used on units with PIN 6203390 thru 6204050)

1шт.

S954524

FRAME, track - (LEFT HAND) - (used on units prior to PIN 6203990)

1шт.

9

26-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- 7/8" x 3" NC hex (Grade 8) - (to track frame)

32шт.

S92341 Washer, Hardened

1шт.

10

S229182

PLATE; swivel guard

1шт.

11

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

12

REF

INSTRUCTION

ROLLER, track - (for breakdown, see Figures 152 thru 162)

18шт.

13

S955130

FRAME ASSY

FRAME, track - (RIGHT HAND) - (used on units with PIN 6204051 and after)

1шт.

S955688

FRAME, track - (RIGHT HAND) - (used on units with PIN 6203990 thru 6204050)

1шт.

S954529

FRAME, track - (RIGHT HAND) - (used on units prior to PIN 6203990)

1шт.

14

REF

INSTRUCTION

CYLINDER, track adjustment - (for breakdown, see Figure 166)

2шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

16

REF

INSTRUCTION

WHEEL, front idler - (for breakdown, see Figure 164)

2шт.

17

REF

INSTRUCTION

TRACK ADJUSTMENT GROUP - (for breakdown, see figure 164)

2шт.

18

S511363

BAR

wear - (RIGHT HAND)

4шт.

19

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

32шт.

20

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

CPSW - 1/2" -13 NC x 1-1/2" Gr 8

32шт.

21

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" - 11 NC

16шт.

22

REF

INSTRUCTION

TRACK ASSEMBLY - (for breakdown, see Figures 168 thru 172)

2шт.

23

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

CPSW - 5/8" - 11 NC x 2" Gr 8

72шт.

24

REF

INSTRUCTION

ROLLER, track - (for breakdown, see Figures 152 thru 162)

4шт.

25

S511364

BAR ASSY.

BAR, wear - (LEFT HAND)

4шт.

26

REF

INSTRUCTION

WHEEL, sprocket drive - (see ref 46 on Figure 150)

2шт.

27

REF

INSTRUCTION

TRANSMISSION, final drive - (for breakdown, see Figure 148)

2шт.

28

REF

INSTRUCTION

BRAKE, track drive - (for breakdown, see Figures 190 and 192)

2шт.

29

REF

INSTRUCTION

MOTOR, track drive - (for breakdown, see Figure 228)

2шт.

30

S209710

PLATE

draw bar - (OPTIONAL)

1шт.

31

240-11

SHACKLE

round pin - (OPTIONAL)

1шт.

32

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Optional) Hex, 3/4"-10 x 3", G5

4шт.

33

S110499

BAR, stop - (used on units with PIN 6204051 and after)

6шт.

34

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Used on units with PIN 6204051 and after) Hex, 1/2"-13 x 1", G5, Full Thd

12шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used on units with PIN 6204051 and after 1/2"

12шт.

36

S92341

WASHER

hardened flat - 1/2" - (used on units with PIN 6204051 and after)

28шт.

37

S92341

WASHER

flat - 29/32" - (hardened)

32шт.
