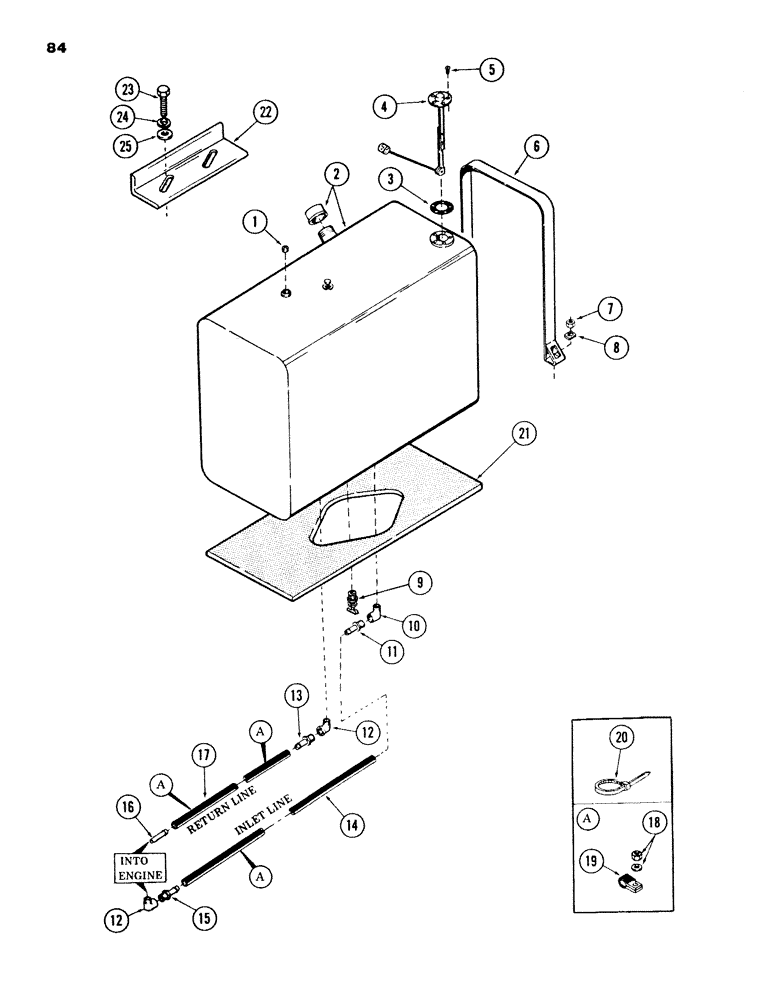

Запчасти Case 980B (084) - FUEL TANK AND LINES, (USED ON UNITS WITH PIN 6204051 AND AFTER) (02) - FUEL SYSTEM

1

221-662

PLUG,Hex Hd, 1/4"-18

- pipe 1/4" PT

1шт.

2

S514118

FUEL TANK

TANK - fuel

1шт.

A18870

FILLER CAP

CAP - fuel tank

1шт.

3

S49745

GASKET

GASKET

1шт.

4

S502600

SENDER UNIT

SENDING UNIT - fuel gauge

1шт.

5

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

- machine No. 10 x 3/4" NF

5шт.

6

S98363

STRAP - fuel tank mounting

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC hex

4шт.

8

S108148

SPACER

4шт.

9

217-81

VALVE

drain

1шт.

10

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree - 3/8" PT

1шт.

11

220-7

FITTING

END - hose 3/8" tube x 3/8" PT

1шт.

12

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree - 1/4" PT

2шт.

13

220-2

FITTING

END - hose 1/4" tube x 1/4" PT

1шт.

14

S63654

HOSE

- hydraulic 90" long (2286 mm)

1шт.

15

220-3

FITTING

END - hose 3/8" tube x 3/8" PT

1шт.

16

S66490

TUBE

END - hose 1/4" tube

1шт.

17

S80943

FLEXIBLE HOSE

HOSE - hydraulic 80" long (2032 mm)

1шт.

18

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC hex

1шт.

195-103

WASHER,5/16"

- flat 3/8"

1шт.

19

49885

CLAMP

- hose

1шт.

20

S73387

CLIP

TIE - cable

1шт.

21

S224325

PAD

- fuel tank

1шт.

22

S238105

ANGLE

- fuel tank mounting

1шт.

23

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25

S95569

WASHER

- flat 1/2"

2шт.
