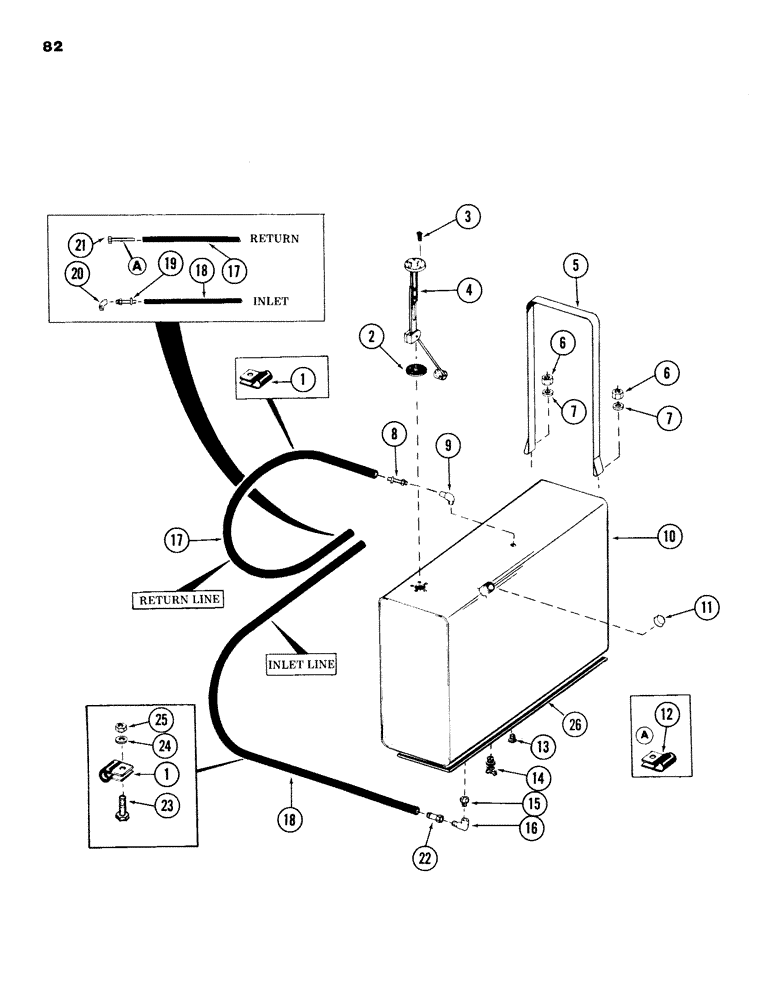

Запчасти Case 980B (082) - FUEL TANK AND LINES, (USED ON UNITS PRIOR TO PIN 6204051) (02) - FUEL SYSTEM

1

NLS

NO LONGER SERVICED

hose

5шт.

2

S49745

GASKET

GASKET

1шт.

3

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

machine - No. 10 - 32 NF x 3/4"

5шт.

4

S502600

SENDER UNIT

SENDING UNIT, fuel gauge

1шт.

5

S93863

STRAP

fuel tank mounting

2шт.

6

131-52

NUT,3/8"-16, GC

NUT, self-locking - 3/8" - 16 NC

4шт.

7

S108148

SPACER

4шт.

8

220-3

FITTING

END - hose - 3/8" tube x 3/8" PT

1шт.

9

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90deg. - 1/4" NPT male x 1/4" NPT female

1шт.

10

S514118

FUEL TANK

TANK, fuel - (Replaces S502212), Includes: Ref. 11

1шт.

11

A18870

FILLER CAP

CAP, fuel tank

1шт.

12

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP, hose

2шт.

13

221-1662

PLUG

pipe - 1/4" NPT male - (tank drain)

1шт.

14

217-81

VALVE

drain

1шт.

15

221-1086

REDUCER,3/8" NPT x 1/4" NPT

BUSHING, reducing - 3/8" NPT male x 1/4" NPT female

1шт.

16

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

90O - 3/8" NPT male x 3/8" NPT female

1шт.

17

S63654

HOSE

fuel line - (BULK) - 1 piece - 3/8" ID x 86" long

1шт.

18

S63654

HOSE

fuel line - (BULK) - 1 piece - 3/8" ID x 86" long

1шт.

19

220-3

FITTING

END, hose - 3/8" tube x 3/8" PT

1шт.

20

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90 degree - 1/4" NPT male x 1/4" NPT female

1шт.

21

S209418

LINE, fuel - 3/8"

1шт.

22

220-7

FITTING

END, hose - 3/8" tube x 3/8" PT

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

24

195-103

WASHER,5/16"

flat - 3/8"

1шт.

25

131-52

NUT,3/8"-16, GC

NUT, self-locking - 3/8" - 16 NC

1шт.

26

S224325

PAD

rubber - (under fuel tank) - (used on units with PIN 6204051 and after)

1шт.
