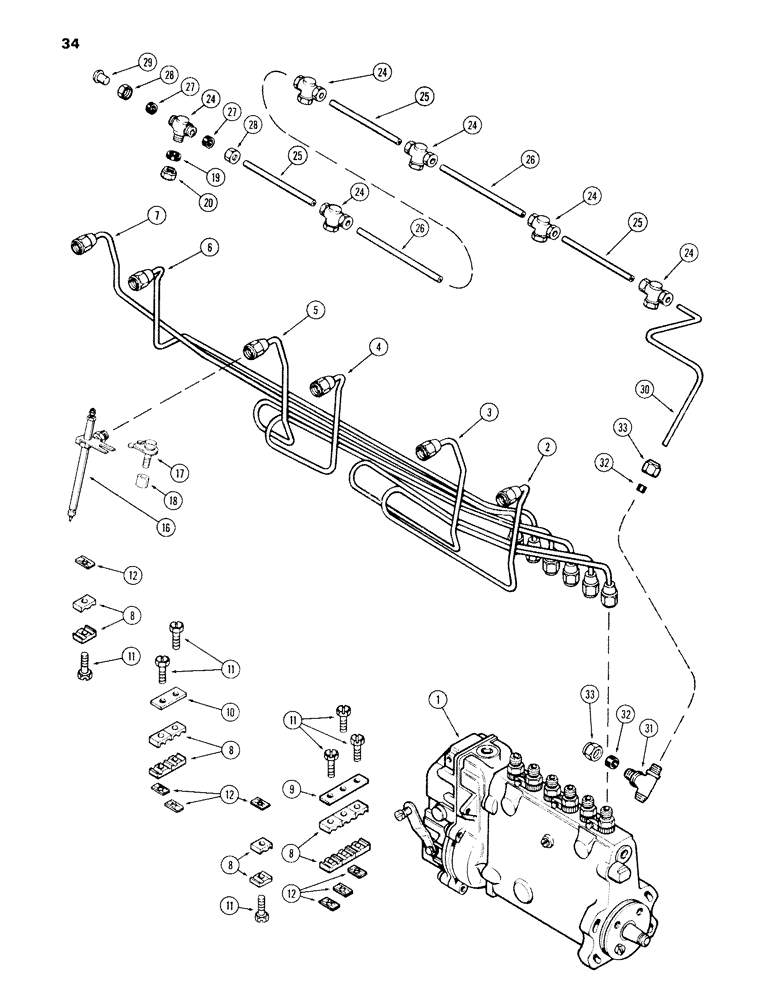

Запчасти Case 980B (034) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figure 38)

1шт.

2

A58702

TUBE

ASSY - injection, No. 1 cylinder

1шт.

3

A58703

TUBE

ASSY - injection, No. 2 cylinder

1шт.

4

A58704

TUBE

ASSY - injection, No. 3 cylinder

1шт.

5

A58705

TUBE

ASSY - injection, No. 4 cylinder

1шт.

6

A58706

TUBE

ASSY - injection, No. 5 cylinder

1шт.

7

A58707

TUBE

ASSY - injection, No. 6 cylinder

1шт.

8

A58709

BRACKET

- injection tube clamp

14шт.

9

A58708

PLATE

- injection tube bracket (for 3 tubes)

1шт.

10

A58710

PLATE

- injection tube bracket (for 2 tubes)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- brackets, #10 x 1" NC slotted hex head

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

7шт.

16

REF

INSTRUCTION

NOZZLE ASSY - fuel injector (See Figure 40)

6шт.

17

A58695

CLAMP

ASSY - nozzle

6шт.

18

A58696

SPACER

- nozzle clamp

6шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- injector nozzle to leak-off tee

6шт.

20

A58961

NUT

- injector nozzle to leak-off tee

6шт.

24

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - injector nozzle and leak-off lines

6шт.

25

A58965

TUBE

- fuel leak-off, 4-5/8" long (117.48mm)

3шт.

26

A58964

TUBE

- fuel leak-off, 5-5/8" long (142.88mm)

2шт.

27

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

12шт.

28

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35mm)

12шт.

29

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - fuel leak-off tee

1шт.

30

A58963

TUBE

- fuel leak-off (to injection pump)

1шт.

31

A59097

VALVE

ASSY - check (one way valve), Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

2шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35mm)

2шт.
