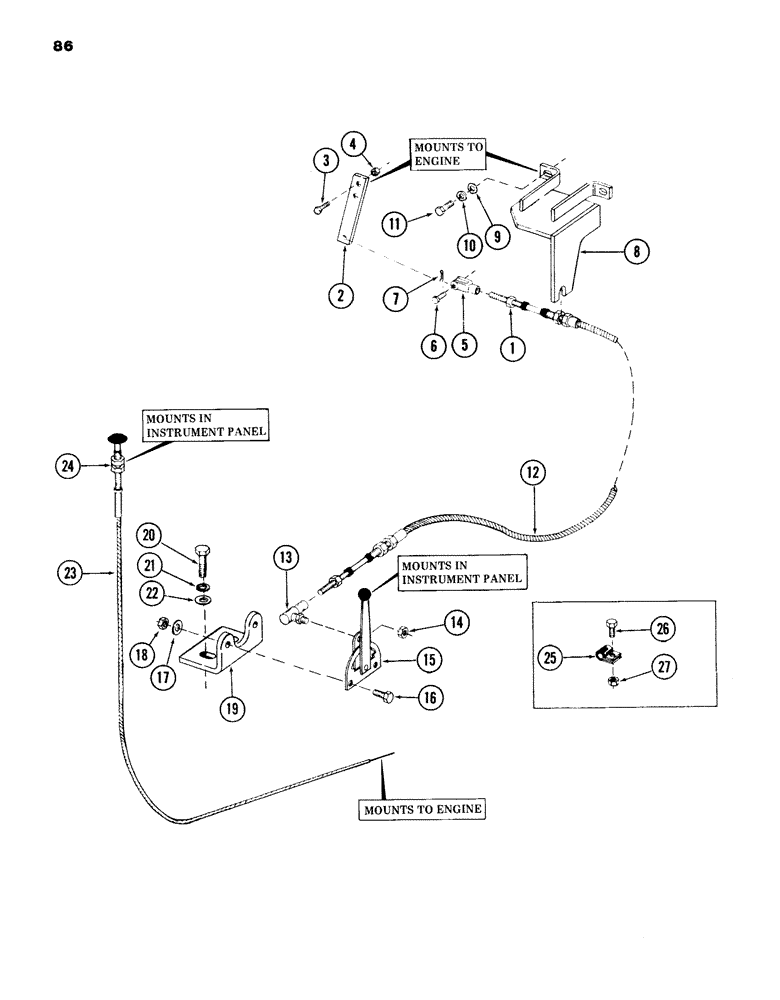

Запчасти Case 980B (086) - THROTTLE AND SHUT-OFF CONTROL CABLES (01) - ENGINE

1

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

S92444

BAR

LEVER, throttle control

1шт.

Replaced by S514567

1шт.

3

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

CPSW - 1/4" - 20 NC x 7/8" Gr 5

2шт.

4

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

5

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

6

S10714

CLEVIS PIN

PIN, clevis - 1/4" x .648" grip length

1шт.

7

132-325

PIN, cotter - 7/64" x 3/4" long

1шт.

8

S505829

BRACKET

cable support

1шт.

9

195-103

WASHER,5/16"

flat - 3/8"

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

S238507

CABLE

throttle - (Replaces S 220635)

1шт.

13

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT, ball

1шт.

14

131-498

LOCK NUT,1/4"-28, GB

NUT, self locking - 1/4" - 20 NC

2шт.

15

S91894

CONTROL LEVER

LEVER, throttle

1шт.

P/N S91894 THE KNOB FOR THIS IS NSS.

1шт.

16

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CPSW - 1/4" - 20 NC x 1-1/2" Gr 5

2шт.

17

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

18

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

19

S231357

ANGLE

throttle lever mounting

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

195-103

WASHER,5/16"

flat - 1/4"

2шт.

22

195-21

WASHER,5/16"

lock - 1/4"

2шт.

23

S231430

CABLE

control - (for engine shut-off)

1шт.

24

195-102

WASHER,1/4"

flat - 5/16"

1шт.

25

T41928

CLAMP,3/16", Insul, 1/4" Bolt

1шт.

26

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

27

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.
