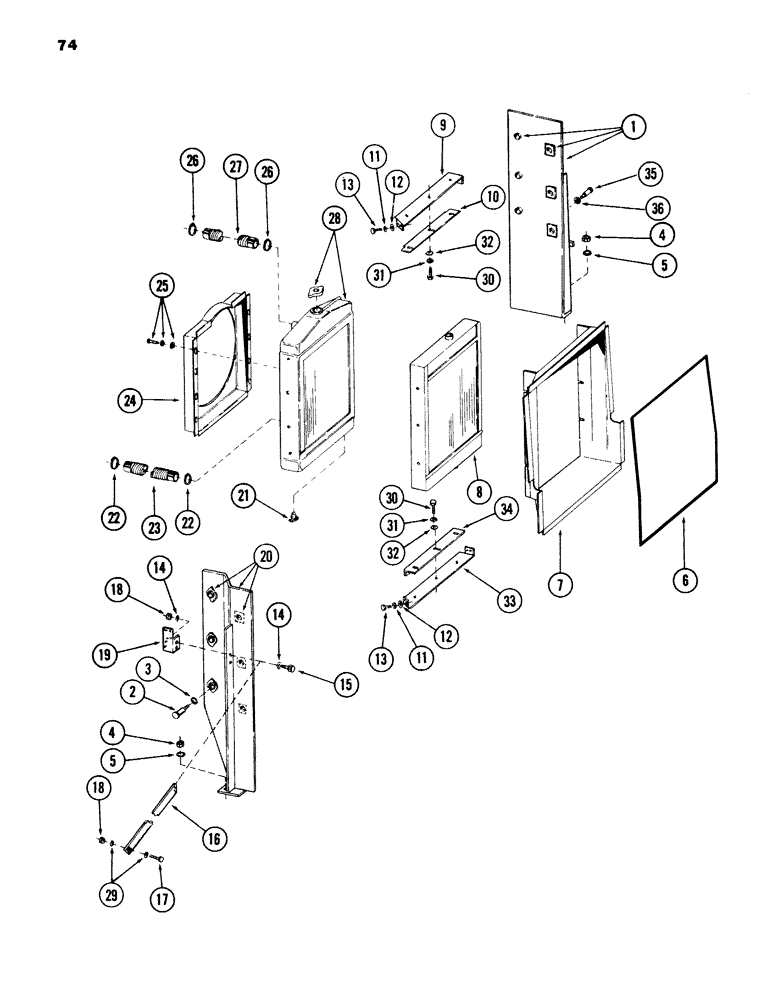

Запчасти Case 980B (074) - RADIATOR, OIL COOLER AND HOSES (01) - ENGINE

1

S513224

BRACKET - radiator and oil cooler mounting - (LEFT HAND) - (used on units with PIN 6204051 and after)

1шт.

S76804

MOUNTING PARTS

MOUNT - rubber

3шт.

S116023

SPACER - radiator mounting bracket

3шт.

S511177

BRACKET - radiator and oil cooler mounting - (LEFT HAND) - (used on units prior to PIN 6204051)

1шт.

S76804

MOUNTING PARTS

MOUNT - rubber

6шт.

The S76804 mounts should be changed to S222918

1шт.

2

S76819

STEP BOLT

BOLT - shoulder, Serial Range: (radiator-bracket)

6шт.

3

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

4

131-492

NUT,1/2"-13

NUT - lock 1/2" NC

6шт.

5

S95569

WASHER

- hardened

6шт.

6

S76711

SEAL

STRIP - weather (BULK) - 1 piece - 147" long

1шт.

7

S610746

SHROUD - air duct

1шт.

8

S609652

COOLER

- oil

1шт.

9

S231560

BRACKET - radiator to cooler (upper)

1шт.

10

S237248

STRIP

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

12

195-102

WASHER,1/4"

- flat 5/16"

8шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- 5/16" NC x 3/4" (Grade 5)

8шт.

14

195-103

WASHER,5/16"

- flat 3/8"

4шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

16

S108292

BRACE

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC

3шт.

19

S510380

BRACKET

- relay mounting

1шт.

20

S513222

BRACKET - radiator and oil mounting - (RIGHT HAND) - (used on units with PIN 6204051 and after)

1шт.

S76804

MOUNTING PARTS

MOUNT - rubber

3шт.

S116023

SPACER

3шт.

S511175

BRACKET - radiator and oil cooler mounting - (RIGHT HAND) - (used on units prior to PIN 6204051)

1шт.

S76804

MOUNTING PARTS

MOUNT - rubber

6шт.

The S76804 mounts should be changed to S222918

1шт.

21

A23656

COCK, DRAIN

DRAIN - radiator

1шт.

22

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

23

S111055

RADIATOR HOSE,2.50" ID x 13.50", SAE 20R4

Lower (Replaces S95994) 2.50" ID x 13.50", SAE 20R4

1шт.

24

S602527

SHROUD

- fan

1шт.

25

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- machine 1/4" NC x 5/8"

8шт.

195-518

WASHER,1/4", SAE

- flat, 1/4"

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

26

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

27

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

28

S614013

RADIATOR

- (used on units with PIN 6204051 and after)

1шт.

S600781

RADIATOR

- (used on units prior to PIN 6204051)

1шт.

#28 - PART #S600781 THE CAP IS PART #D25826.

1шт.

29

195-525

WASHER,3/8", SAE

- flat 13/32"

4шт.

30

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

32

195-101

WASHER,3/16"

- flat 1/4"

6шт.

33

S231558

BRACKET - radiator to cooler - (lower)

1шт.

34

S237270

ANGLE

STRIP

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Mounts oil cooler to bracket) - (Used on units with PIN 6204051 and after) Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

S76819

STEP BOLT

BOLT - shoulder - (mounts oil cooler to bracket) - (used on units prior to PIN 6204051)

6шт.

36

193-20

WASHER,Ext-Int Tooth, 7/16"

- lock - 5/16" - (used on units with PIN 6204051 and after)

6шт.

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - lock 5/16" - (internal tooth) - (used on units prior to PIN 6204051)

6шт.
