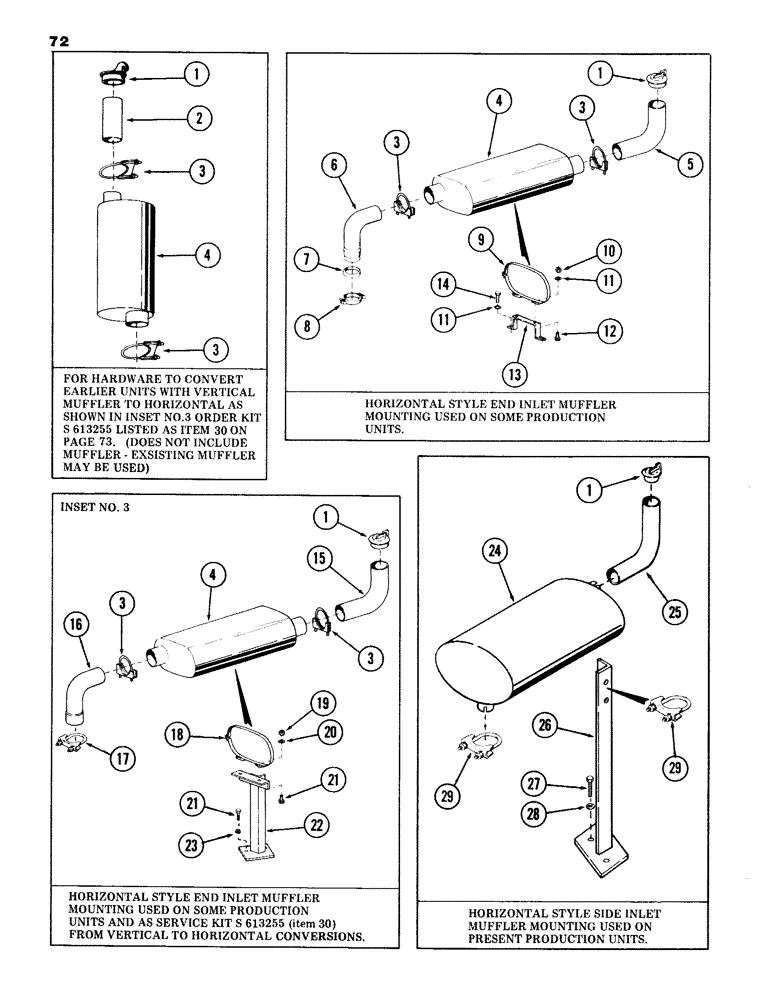

Запчасти Case 980B (072) - MUFFLER ASSEMBLY (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A19795
CAP
exhaust pipe
1шт.
2
S98927
PIPE CLAMP
PIPE, exhaust
1шт.
3
A17851
CLAMP
2шт.
4
S508420
MUFFLER
1шт.
5
S99158
ELBOW
PIPE, exhaust
1шт.
6
NSS
NOT SOLD SEPARAT
ELBOW ASSEMBLY, flex-joint - (order kit ref 30 listed below)
1шт.
7
S107152
GASKET
1шт.
8
S107151
CLAMP
1шт.
9
A16574
BAND
CLAMP -, Serial Range: (muffler-bracket)
2шт.
10
113-52
BOLT,Hex, 1/4" - 20 x 6", Gr 5
NUT, self-locking - 3/8" - 16 NC
4шт.
11
195-525
WASHER,3/8", SAE
flat - 3/8"
8шт.
12
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
13
S233209
BRACKET
-, Serial Range: (muffler-shroud)
2шт.
14
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
15
S111779
PIPE, EXHAUST SYSTEM
PIPE, exhaust
1шт.
Part of muffler conversion kit, P/N S613255
1шт.
16
S236830
TUBE
PIPE, exhaust
1шт.
Part of muffler conversion kit, P/N S613255
1шт.
17
A17851
CLAMP
1шт.
Part of muffler conversion kit, P/N S613255
1шт.
18
A16574
BAND
CLAMP -, Serial Range: (muffler-bracket)
1шт.
Part of muffler conversion kit, P/N S613255
1шт.
19
113-52
BOLT,Hex, 1/4" - 20 x 6", Gr 5
NUT, self-locking - 3/8" - 16 NC
2шт.
Part of muffler conversion kit, P/N S613255
1шт.
20
195-525
WASHER,3/8", SAE
flat - 3/8"
2шт.
Part of muffler conversion kit, P/N S613255
1шт.
21
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
Part of muffler conversion kit, P/N S613255
1шт.
22
S236334
BRACKET
-, Serial Range: (muffler-engine)
1шт.
Part of muffler conversion kit, P/N S613255
1шт.
23
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
Part of muffler conversion kit, P/N S613255
1шт.
24
S231674
MUFFLER
1шт.
25
S99158
ELBOW
PIPE, exhaust
1шт.
26
S234041
BRACKET
-, Serial Range: (muffler-engine)
1шт.
27
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
2шт.
28
196-1
WASHER,13/32" x 13/16" x .089", HDN
flat - 17/32"
2шт.
29
A17851
CLAMP
2шт.
30
S613255
KIT
muffler conversion, Includes: Ref. 15 thru 23)
1шт.
Выбрано товаров: 39
