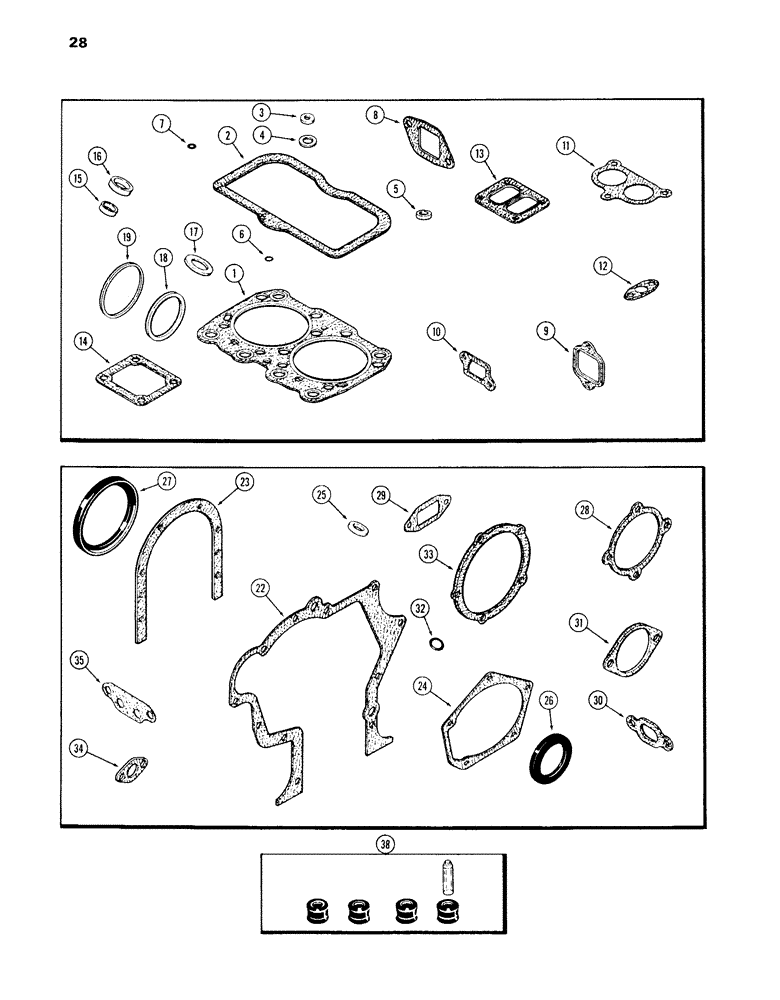

Запчасти Case 980B (028) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE (01) - ENGINE

A151404

GASKET

KIT - valve grind, Includes: Ref. 1 - 19

1шт.

For complete engine overhaul order 1 - A151404 valve grind kit, 1 - A44075 cylinder block kit and 1 - A152479 oil pan kit from figure 12

1шт.

1

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

2

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

3

A34133

GASKET

- breather tube, upper, 1/4 x 1/2 x 1/16" (6.35 x 12.7 x 1.59 mm)

3шт.

4

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower, 11/16 x 1-1/4 x 1/4" (17.46 x 31.75 x 6.35 mm)

3шт.

5

A23684

GASKET

GASKET - valve cover, 1/2 x 7/8 x 1/8" (12.7 x 22.35 x 3.18 mm)

6шт.

6

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube, 3/16 x 5/16 x 1/16" (4.76 x 7.94 x 1.59 mm)

3шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (See Ref. 38)

12шт.

8

A58662

MANIFOLD GASKET

- intake manifold

6шт.

9

A140252

MANIFOLD GASKET

- exhaust manifold

6шт.

10

A58637

MANIFOLD GASKET

- water manifold

3шт.

11

A58639

GASKET

- thermostat housing

1шт.

12

A58892

GASKET,1.59mm Thk

- oil drain tube (turbo-charger)

1шт.

13

A58899

GASKET,0.45mm Thk

- turbo-charger base

2шт.

14

A58910

GASKET

- air intake elbow (turbo-charger)

1шт.

15

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzles

6шт.

16

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle body

6шт.

17

1342829C1

GASKET

WASHER - (Not used this application); Replaces A76640

6шт.

18

A138817

RING,2.64mm Thk

SEAL - (Not used this application)

1шт.

19

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- (Not used this application)

1шт.

A44075

GASKET KIT

- cylinder block, Includes: Ref. 22 - 35

1шт.

For complete engine overhaul order 1 - A151404 valve grind kit, 1 - A44075 cylinder block kit and 1 - A152479 oil pan kit from figure 12

1шт.

22

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

23

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

24

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

26

A62049

OIL SEAL

- oil, crankshaft, front, 2-5/8 x 3-5/8 x 1/2" (66.68 x 92.08 x 12.7mm), cylinder block kit

1шт.

27

A62050

OIL SEAL

- oil, crankshaft rear 4-3/4 x 5-3/4 x 1/2" (120.65 x x 146.05 x 12.7 mm), cylinder block kit

1шт.

28

A58646

GASKET

- water pump to body, cylinder block kit

1шт.

29

A58649

GASKET

- water pump body to block, cylinder block kit

1шт.

30

A58670

GASKET

- oil cooler water opening, cylinder block kit

1шт.

31

A58617

GASKET

- auxiliary drive cover, cylinder block kit

1шт.

32

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil, pump, 1-5/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38mm), cylinder block kit

1шт.

33

A76656

GASKET

- (Not used this application), cylinder block kit

1шт.

34

A58680

OIL PAN GASKET SET

- (Not used this application, cylinder block kit

1шт.

35

A58165

GASKET - (Not used this application), cylinder block kit

1шт.

38

M20614

SEAL KIT

SEAL KIT - valves (Includes 4 seals and installation sleeve), cylinder block kit

3шт.
