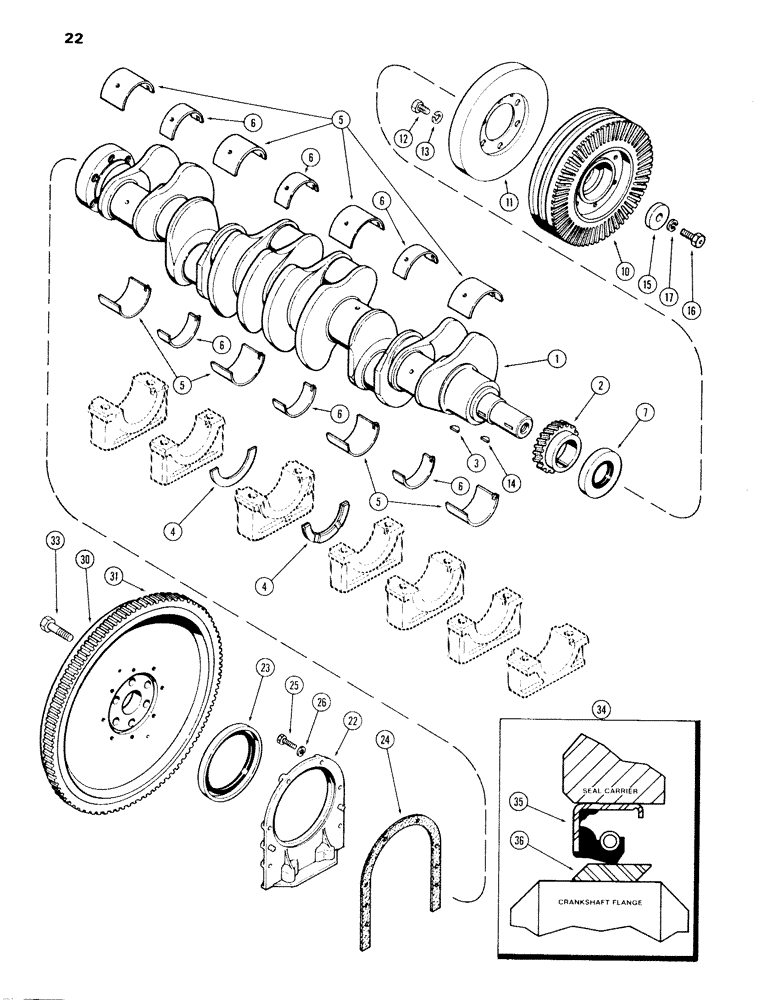

Запчасти Case 980B (022) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (01) - ENGINE

1

A77270

CRANKSHAFT

ASSY - (Replaces A66728), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, standard (0.156")

2шт.

4

A42447

WASHER

- thrust, oversize (0.162")

2шт.

5

A43090

BEARING LINER

LINER SET - main bearing, standard (wide) (Set of 2)

4шт.

5

A43124

LINING

LINER SET - main bearing, -.002" (-0.06 mm) (wide) (Set of 2)

4шт.

5

A43125

CRANKSHAFT BEARING

LINER SET - main bearing, -.010" (-0.26 mm) (wide) (Set of 2)

4шт.

5

A43156

RETAINER

LINER SET - main bearing, -.020" (-0.51 mm) (wide) (Set of 2)

4шт.

5

A43127

LINING

LINER SET - main bearing, -.030" (-0.77 mm) (wide) (Set of 2)

4шт.

6

A43089

BEARING LINER

LINER SET - main bearing, standard (narrow) (Set of 2)

3шт.

6

A43120

LINING

LINER SET - main bearing, -.002" (-0.06 mm) (narrow) (Set of 2)

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER SET - main bearing, -.010" (-0.26 mm) (narrow) (Set of 2)

3шт.

6

A43122

LINING

LINER SET - main bearing, -.020" (-0.51 mm) (narrow) (Set of 2)

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER SET - main bearing, -.030" (-0.77 mm) (narrow) (Set of 2)

3шт.

7

A62049

OIL SEAL

- oil, front, 2-5/8 x 3-5/8 x 1/2" (66.68 x 92.08 x 12.7)

1шт.

10

A58828

PULLEY

- fan drive

1шт.

11

A58900

DAMPER

- pulley

1шт.

12

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Damper to pulley Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

15

A27903

WASHER

- pulley, 5/8 x 2-1/8 x 3/8" (15.88 x 53.98 x 9.53 mm)

1шт.

16

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley to crankshaft Hex, 5/8"-18 x 1 1/2", G5

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A57457

RETAINER

- rear oil seal

1шт.

23

A62050

OIL SEAL

- oil, rear, 4-3/4 x 5-3/4 x 1/2" (See Ref. 34) (120.65 x 146.05 x 12.7 mm)

1шт.

24

A32830

GASKET

- rear oil seal retainer

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

30

A58683

FLYWHEEL

ASSY, Includes: Ref. 31

1шт.

31

A27920

GEAR

- ring

1шт.

33

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel to crankshaft, 5/8 x 1-1/2 NF hex

6шт.

33a

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

hardened, not shown

1шт.

34

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, 4-7/8 x 5-3/4 x 1/2" (123.83 146.05 x 12.7mm), wear seal kit

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4 x 4-7/8 x 9/16" (120.65 x 123.83 x 14.29 mm), seal kit

1шт.
