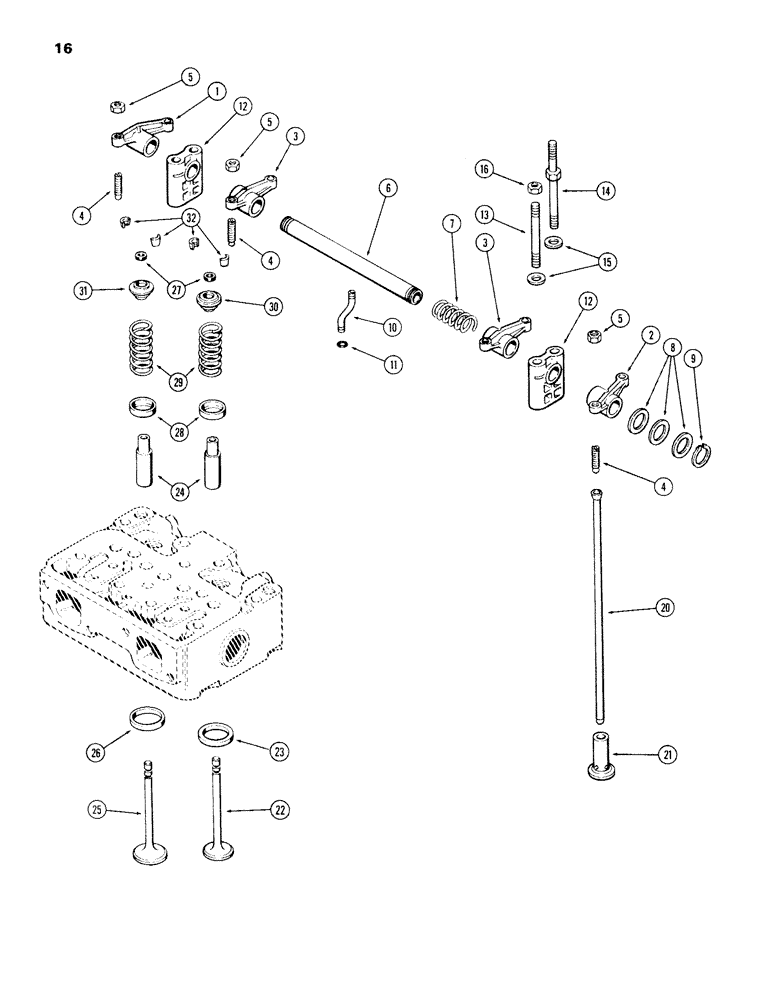

Запчасти Case 980B (016) - VALVE MECHANISM, 504BDT DIESEL ENGINE (01) - ENGINE

1

A148137

ROCKER ARM

ARM ASSY - rocker, exhaust valves (1st, 3rd and 5th cylinders), Includes: Ref. 4 and 5

3шт.

2

A148138

ARM

ASSY - rocker, exhaust valves (2nd, 4th and 6th cylinders), Includes: Ref. 4 and 5

3шт.

3

A148136

ARM

ASSY - rocker, intake valves, Includes: Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" NF hex, jam

1шт.

Replaced by 129-163

1шт.

6

A57532

SHAFT

- rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft, 7/8 x 1-5/16 x 1/32" (22.23 x 33.34 x 0.79 mm)

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker arm shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube, 3/16 x 5/16 x 1/16" (4.76 x 7.94 x 1.59 mm)

3шт.

12

A61128

BRACKET

- rocker shaft

6шт.

13

A58659

STUD

- bracket, 7/16" NC x 4-5/16"

6шт.

14

A67121

STUD

- bracket, 7/16" NC x 6"

6шт.

15

195-29

WASHER,7/16"

- 1/2 x 15/16 x 1/16"

12шт.

16

25-107

NUT,7/16"-14, G5

- 7/16" NC hex

6шт.

Replaced by 129-104

1шт.

20

A141841

ROD

ASSY - push (Replaces A58596)

12шт.

21

A20865

TAPPET

LIFTER - push rods, standard

12шт.

21

A21857

TAPPET

LIFTER - push rods, +.010" (0.26 mm)

12шт.

22

A41753

VALVE

- exhaust (Set of 2)

3шт.

23

A66192

INSERT

- exhaust valve seat

6шт.

24

A41783

GUIDE

- intake and exhaust valves

12шт.

25

A41754

VALVE

- intake (Set of 2)

3шт.

26

A60557

INSERT

- intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valves

12шт.

28

A66328

SEAT

- valve springs

12шт.

29

A66444

SPRING

- intake and exhaust valves

12шт.

30

A66336

ROTATOR

RETAINER - exhaust valves (Roto-cap)

6шт.

31

A44645

KIT

RETAINER - intake valves (Set of 2 retainers and 4 locks)

3шт.

32

A27872

LOCK

- valve spring retainers (keepers)

24шт.
