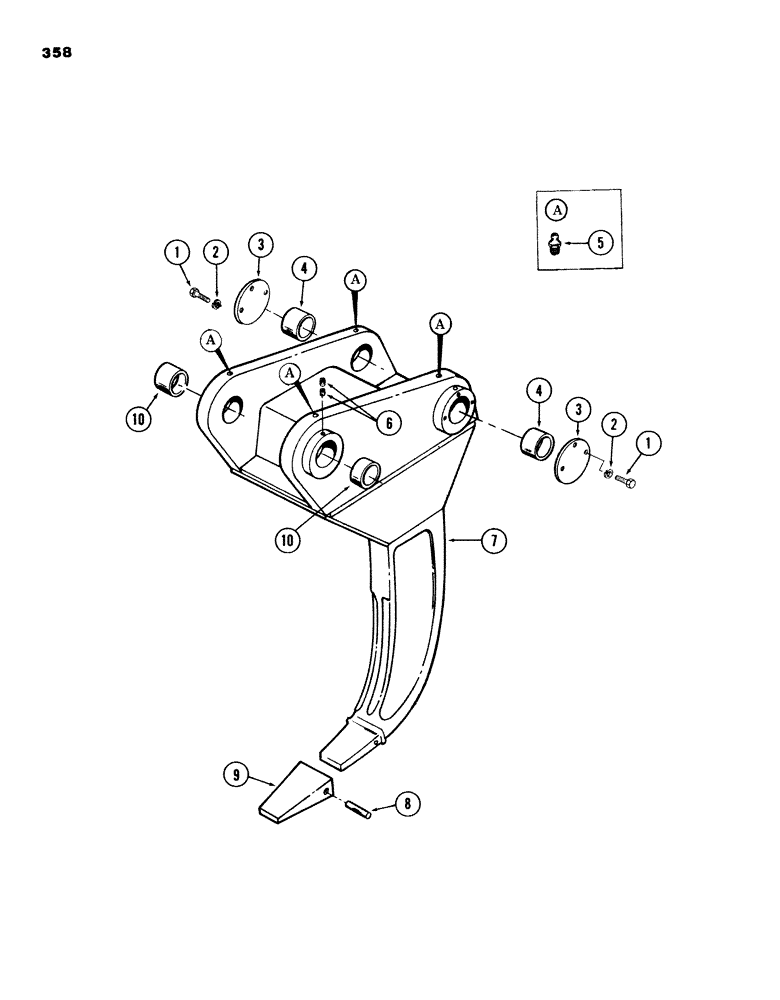

Запчасти Case 980B (358) - RIPPER TOOTH (19) - BUCKETS

1

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

CPSW - 3/8" - 16 NC x 7/8" Gr 5

6шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 7/8"

6шт.

3

D106642

COVER

2шт.

4

S234928

BUSHING

- (2-1/2")

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, GREASE - 1/8" NPT - (straight)

4шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

4шт.

7

S612394

RIPPER TOOTH, Includes: Ref. 8 and 9

1шт.

8

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

9

S25334

POINT

TIP, replaceable

1шт.

10

S229392

BUSHING

- (3")

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE, SERIAL - (NOT ILLUSTRATED)

1шт.

12

S23395

SCREW

drive - No. 7 NC x 5/16" - (NOT ILLUSTRATED)

2шт.
