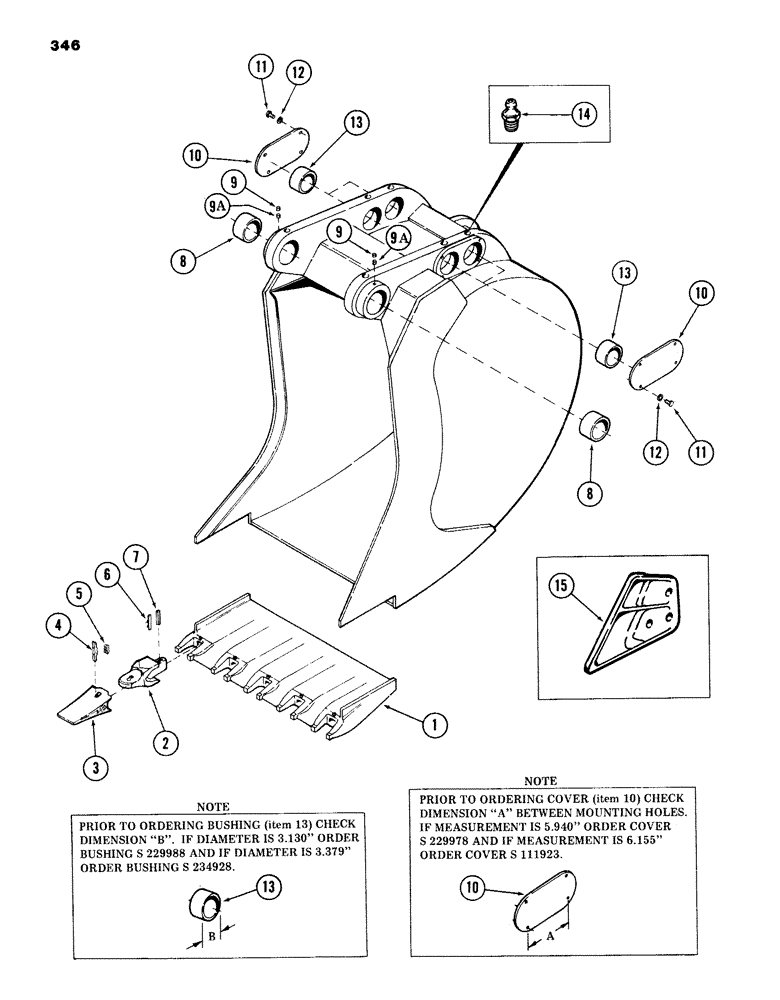

Запчасти Case 980B (346) - BACKHOE BUCKETS, SEVERE DUTY (19) - BUCKETS

S955483

BUCKET ASSEMBLY - backhoe - 1/2 cu. yd. (Machinery item) - 1/2 cu. yd Backhoe Bucket (24" wide), Includes: Ref. 1

1шт.

1

S98400

EDGE

cutting - Esco Lip - 1/2 cu. yd Backhoe Bucket (24" wide)

1шт.

S955489

BUCKET ASSEMBLY - backhoe - 1 cu. yd. (Machinery item) - 1 cu. yd. Backhoe Bucket (36" wide)

1шт.

S98402

LIP

EDGE, cutting - Esco Lip - 1 cu. yd. Backhoe Bucket (36" wide)

1шт.

S955492

BUCKET ASSEMBLY - backhoe - 1-1/4 cu. yd. (Machinery item) - 1-1/4 cu. yd. Backhoe Bucket (42" wide), Includes: Ref. 1

1шт.

1

S98404

EDGE, cutting - Esco Lip - 1-1/4 cu. yd. Backhoe Bucket (42" wide)

1шт.

2

S91258

ADAPTER

- Tooth Assemblies

1шт.

3

S91259

POINT

- Tooth Assemblies

1шт.

4

S91265

PIN

- Tooth Assemblies

1шт.

5

S90192

LOCK

- Tooth Assemblies

1шт.

6

S110285

WEDGE

- Tooth Assemblies

1шт.

7

S110286

SPOOL

- Tooth Assemblies

1шт.

8

S229392

BUSHING

- Bucket Related Parts

2шт.

9

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8" - Bucket Related Parts

2шт.

9a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set 3/8" - 16 NC x 3/8" - Bucket Related Parts

2шт.

10

REF

INSTRUCTION

COVER - Bucket Related Parts

2шт.

Prior to ordering cover (ref 10) check the dimension "A" between mounting holes. If measurement is 5.940" order cover S229978 and if measurement is 6.155" order cover S111923

1шт.

11

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

CPSW - 3/8" - 16 NC x 7/8" Gr 5 - Bucket Related Parts

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related parts 3/8"

8шт.

13

REF

INSTRUCTION

BUSHING - Bucket Related Parts

2шт.

Prior to ordering bushing (ref 13) check dimension "B". If diameter is 3.130" order bushing S229988 and if diameter is 3.379" order bushing S234928.

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (straight) - Bucket Related Parts

6шт.

15

S235283

CUTTER

side - 3" - (RIGHT HAND) - (includes quanity of 3 each - capscrews, lockwashers and nuts) - Bucket Related Parts

1шт.

S235284

CUTTER

side - 3" - (LEFT HAND) - (includes quanity of 3 each - capscrews, lockwashers and nuts) - Bucket Related Parts

1шт.

S235285

CUTTER

side - 4" - (RIGHT HAND) - (includes quanity of 3 each - capscrews, lockwashers and nuts) - Bucket Related Parts

1шт.

S235286

CUTTER

side - 4" - (LEFT HAND) - (includes quanity of 3 each - capscrews, lockwashers and nuts - Bucket Related Parts

1шт.

16

S23395

SCREW

drive - No. 7 NC x 5/16" - (NOT ILLUSTRATED) - Bucket Related Parts

2шт.

17

NSS

NOT SOLD SEPARAT

PLATE, serial - (NOT ILLUSTRATED) - Bucket Related Parts

1шт.

No lock washer rq'd

1шт.

P/N 131-198 lock nuts

1шт.

P/N 19-1440 bolts 3 rq'd

1шт.
