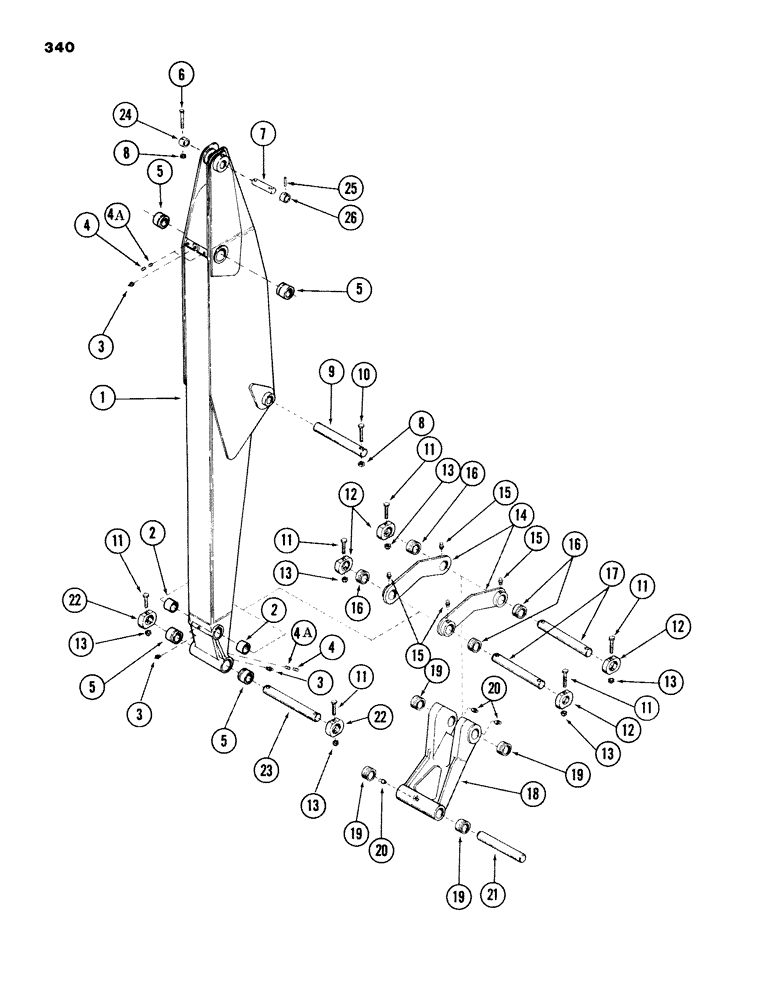

Запчасти Case 980B (340) - DIPPER AND ATTACHMENT LINKS WITH PINS (14) - DIPPERSTICKS

1

S954595

DIPPER

STICK - 9' - 0", Includes: Ref. 2 - 5

1шт.

S954594

DIPPER

STICK - 10' - 6", Includes: Ref. 2 - 5

1шт.

2

S229548

BUSHING

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

3шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

4шт.

4a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

4шт.

5

S229565

BUSHING

4шт.

6

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

CPSW - 1/2" - 13 NC x 5-3/4" Gr 8

1шт.

7

S233082

PIN

- (crowd cylinder rod end to dipperstick) - (used on units prior to PIN 6203914)

1шт.

S230530

PIN - (crowd cylinder rod end to dipperstick) - (used on units with PIN 6203914 and after)

1шт.

8

131-70

NUT,1/2"-13, GB

NUT - 1/2" - 13 NC

2шт.

9

S230474

PIN

- (tool cylinder base, Serial Range: end-dipperstick)

1шт.

10

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

1шт.

11

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

CPSW - 1/2" NC x 4-1/4" Gr 5

6шт.

Replaced by 113-423

1шт.

12

S117143

COLLAR

4шт.

13

129-544

NUT,Crown, 1/2"-13

self locking end cap - 1/2" - 13 NC

6шт.

14

S229605

LINK, Includes: Ref. 15 and 16

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

2шт.

16

S229548

BUSHING

2шт.

17

S234223

PIN

- (Link to dipperstick and dipperstick rod end and attachment link to, Serial Range: link-link)

2шт.

18

S510336

LINK

attachment, Includes: Ref. 19 and 20

1шт.

19

S229548

BUSHING

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

3шт.

21

S229561

PIN

- (attachment, Serial Range: link-attachment)

1шт.

Pin subs to p/n S233811 which has

1шт.

22

S117144

COLLAR

2шт.

23

S229550

PIN

-, Serial Range: (dipperstick-attachment)

1шт.

Pin has OD of 2.9880/2.9863 & length of 22.53 with 2 holes, 1 on each end.

1шт.

24

S230201

BUSHING - (used on units prior to PIN 6203914)

1шт.

25

138-209

LOCK PIN,1/2" x 2 3/4", Slotted

PIN, roll - 33/64" diameter x 2-3/4" long - (used on units prior to PIN 6203914)

1шт.

26

S230200

BUSHING

- (used on units prior to PIN 6203914)

1шт.

27

S111775

WASHER

- (for pin joints) - 2-1/2" ID x 4" OD - (1/8" thickness) - (NOT ILLUSTRATED)

1шт.

28

S111776

WASHER

- (for pin joints) - 3/16" ID x 5" OD - (1/8" thickness) - (NOT ILLUSTRATED)

1шт.

OD = 2.489/2.487 & length =17.73/17.67

1шт.

DIPPER STICK IS PART #S609372 PART TYPE 3 CALL TECH STAFF.

1шт.
