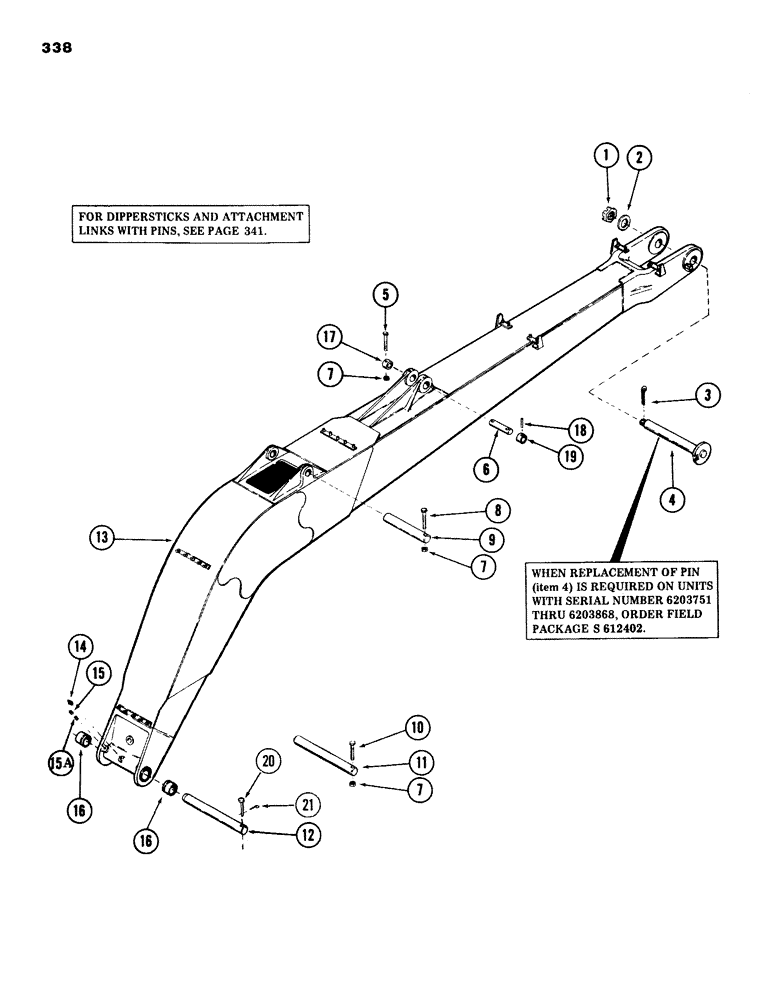

Запчасти Case 980B (338) - MAIN "E" BOOM AND PINS (09) - BOOMS

1

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, slotted - 2" - 4-1/2" NC

1шт.

2

S110511

WASHER

flat

1шт.

3

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

4

S235688

PIN ASSY.

PIN - (boom to dipper) BEFORE ORDERING PIN

1шт.

5

26-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 8

CPSW - 1/2" - 13 NC x 7" Gr 8

1шт.

6

S232623

PIN

- (crowd cylinder base end to boom) (used on units prior to PIN 6203914)

1шт.

7

S230531

PIN - (crowd cylinder base end to boom) (used on units with PIN 6203914 and after)

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

3шт.

8

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

CPSW - 1/2" - 13 NC x 5-3/4" Gr 8

1шт.

9

S230475

PIN

-(hoist cylinder rod, Serial Range: end-boom)

1шт.

10

26-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

CPSW - 1/2" - 13 NC x 6" Gr 8

1шт.

11

S230473

PIN

- (hoist cylinder base, Serial Range: end-turntable)

1шт.

12

S232621

PIN

-, Serial Range: (boom-turntable)

1шт.

13

S954605

BOOM

"E" BOOM, main, Includes: Ref. 14 - 16

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

1шт.

15

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

15a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

16

S229565

BUSHING

2шт.

17

S230200

BUSHING

- (used on units prior to PIN 6203914)

1шт.

18

138-209

LOCK PIN,1/2" x 2 3/4", Slotted

PIN, roll - 33/64" diamater x 2-3/4" long - (used on units prior to PIN 6203914)

1шт.

19

S230199

BUSHING - (used on units prior to PIN 6203914)

1шт.

20

S61977

PIN

clevis - 5/8" x 6.500" grip length

1шт.

21

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

22

S111775

WASHER

- (for pin joints) - 1-1/2" ID x 4" OD - (1/8" thickness) - (NOT ILLUSTRATED)

1шт.

23

S111776

WASHER

- (for pin joints) - 3-1/16" ID x 5" OD - (1/8" thickness) - (NOT ILLUSTRATED)

1шт.

24

S111777

WASHER

- (for pin joints) - 2-9/16" ID x 4-1/2" OD (1/16" thickness) - (NOT ILLUSTRATED)

1шт.

25

S111778

WASHER

- (for pin joints) - 3-1/16" ID x 5" OD - (1/16" thickness) - (NOT ILLUSTRATED)

1шт.
