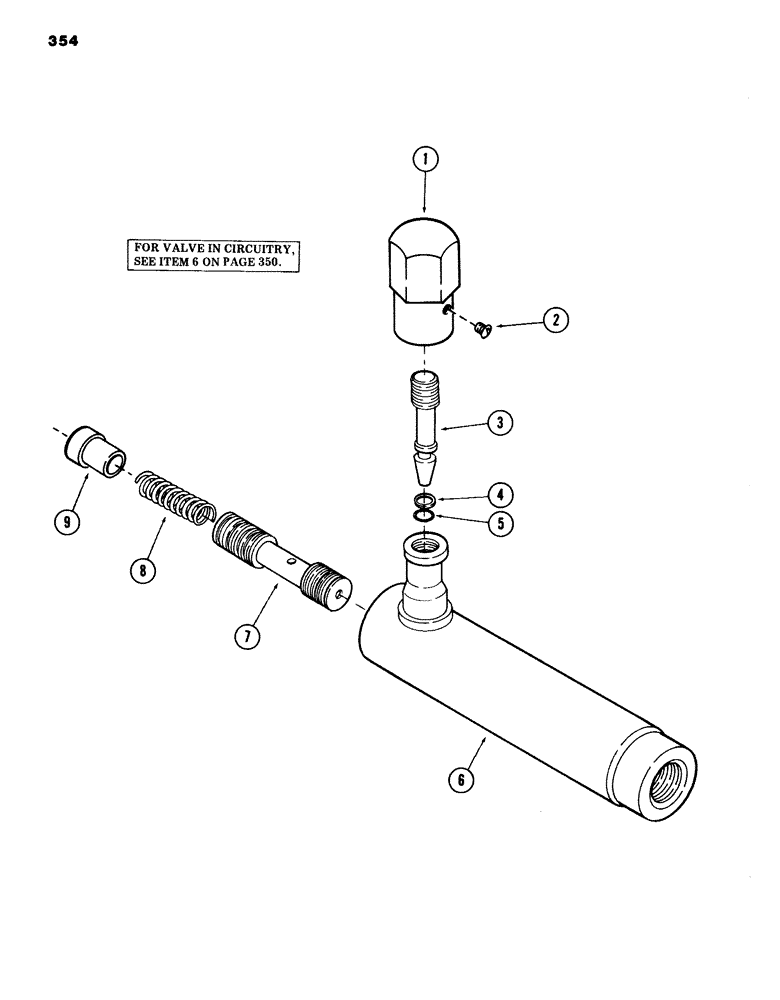

Запчасти Case 980B (354) - FLOW CONTROL VALVE, (USED IN WRIST-O-TWIST CIRCUIT) (07) - HYDRAULIC SYSTEM

S210358

LOCK VALVE

VALVE - flow control, Includes: Ref. 1 - 9

2шт.

1

S115296

KNOB

1шт.

2

S115295

SCREW - socket set

1шт.

3

NSS

NOT SOLD SEPARAT

NEEDLE

1шт.

4

L35505

FILTER

RING - back up

1шт.

Ring should be p/n L35305.

1шт.

5

S115293

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON

1шт.

8

S115299

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.
