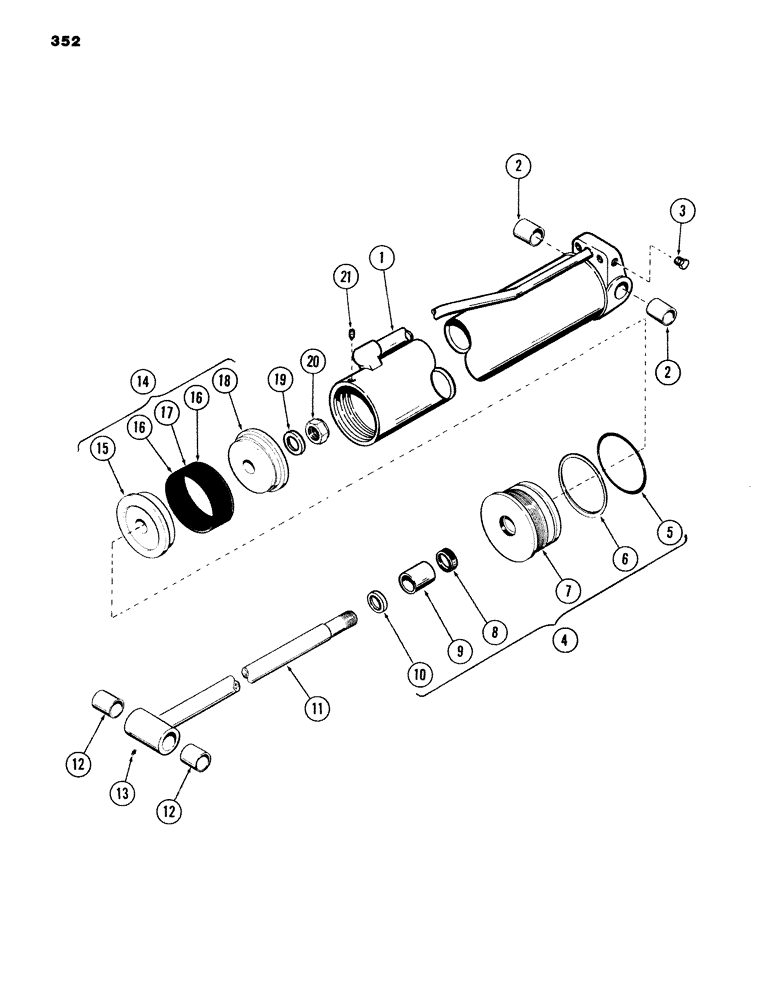

Запчасти Case 980B (352) - WRIST-O-TWIST CYLINDER (07) - HYDRAULIC SYSTEM

S614056

CYLINDER

- wrist-o-twist, Includes: Ref. 1 - 21

1шт.

1

S513881

TUBE - cylinder, Includes: Ref. 2 16.18" L

1шт.

2

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- tube

2шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Pipe Hex Hd, 1 5/16"-12 ORB

1шт.

4

G35224

GLAND

ASSY, Includes: Ref. 5 - 10

1шт.

5

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND

1шт.

8

D45571

ROD

SEAL

1шт.

9

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

BEARING

1шт.

10

S92644

RING

- back up

1шт.

11

S237578

PISTON ROD

ROD - piston, Includes: Ref. 12

1шт.

12

S202131

BUSHING

- piston rod

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" PT (straight)

3шт.

14

G35283

PISTON and SEAL ASSY, Includes: Ref. 15 - 18

1шт.

15

D49164

PISTON

- split (rod)

1шт.

16

D47207

GASKET KIT

V-RING PACKING

1шт.

17

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - center bearing

1шт.

18

D49165

PISTON

- split (bolt)

1шт.

19

G32666

WASHER

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

1шт.

21

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - No. 8 - 32 x 1/4" NC self tapping

1шт.
