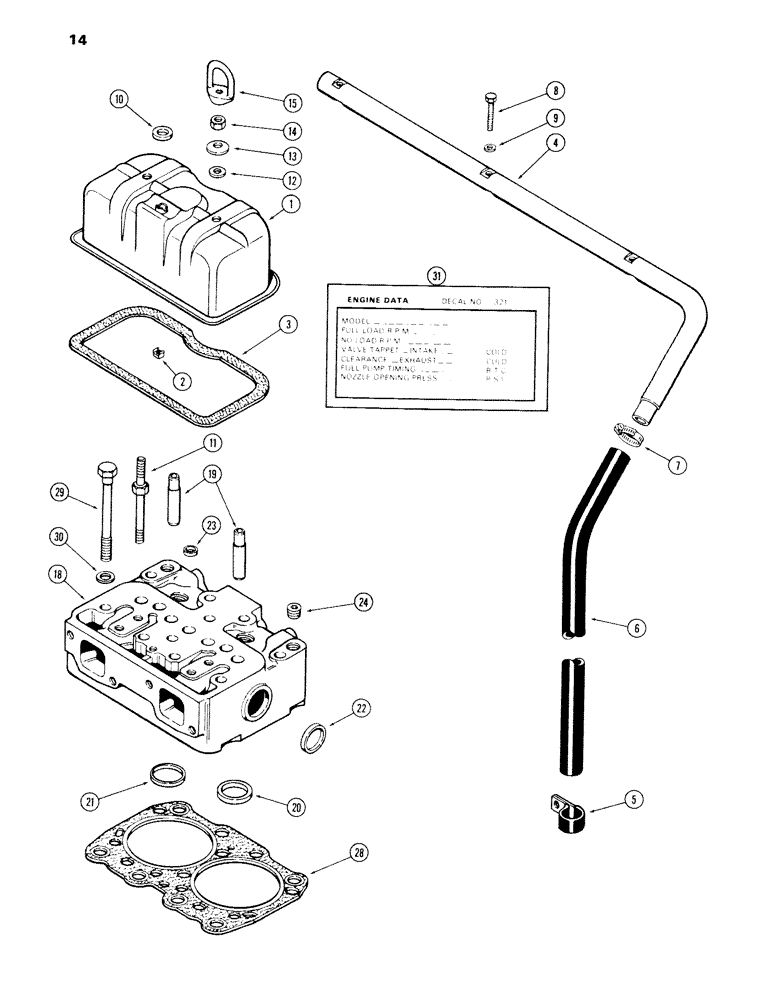

Запчасти Case 980B (014) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (01) - ENGINE

1

A58929

COVER

COVER ASSY - cylinder head

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover

3шт.

4

A66640

TUBE

TUBE - breather

1шт.

5

D34033

CLAMP

CLAMP - breather tube

1шт.

6

A66132

HOSE

HOSE - breather tube, 1" ID x 34" (25.4 x 863.6 mm)

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

1шт.

8

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, , Tube to cover Hex, 1/4"-20 x 2 1/2", G5

3шт.

9

A34133

GASKET

GASKET - tube, upper, 1/4 x 1/2 x 1/16" (6.35 x 12.7 x 1.59 mm), Includes: Ref. 11

3шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower, 11/16 x 1-1/4 x 1/4" (17.46 x 31.75 x 6.35 mm), Includes: Ref. 11

3шт.

11

A67121

STUD

STUD - cylinder head cover, 7/16" NC x 6"

6шт.

12

A23684

GASKET

GASKET - Cover stud, 1/2 x 7/8 x 1/8" (12.7 x 22.23 x 3.18 mm)

6шт.

13

A23683

WASHER

WASHER - cover stud (dished)

6шт.

14

25-107

NUT,7/16"-14, G5

NUT - cover stud, 7/16" NC hex

6шт.

15

A60567

EYE

EYE - engine lifting

2шт.

18

A66709

HEAD

HEAD ASSY - cylinder (Casting No. A60559) (Replaces A60558), Includes: Ref. 19 - 23

3шт.

18

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

18

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

19

A57448

GUIDE

GUIDE - intake and exhaust valves

4шт.

20

A66192

INSERT

INSERT - exhaust valve seat

2шт.

21

A60557

INSERT

INSERT - intake valve seat

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" cup type (41.28 mm)

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" cup type (19.05 mm)

1шт.

24

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" PT, hex socket head

6шт.

28

A138397

CYLINDER HEAD GASKET

GASKET - cylinder head (Replaces A138149)

3шт.

29

A76638

BOLT

BOLT - cylinder head, 5/8 x 5-1/4" NC hex

30шт.

P/N A76638 IS 5/8 x 6 1/4 PER T/S 221-80.

1шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 1/8" (15.88 x 25.4 x 3.18 mm)

30шт.

31

321-2308

DECAL - engine data

1шт.
