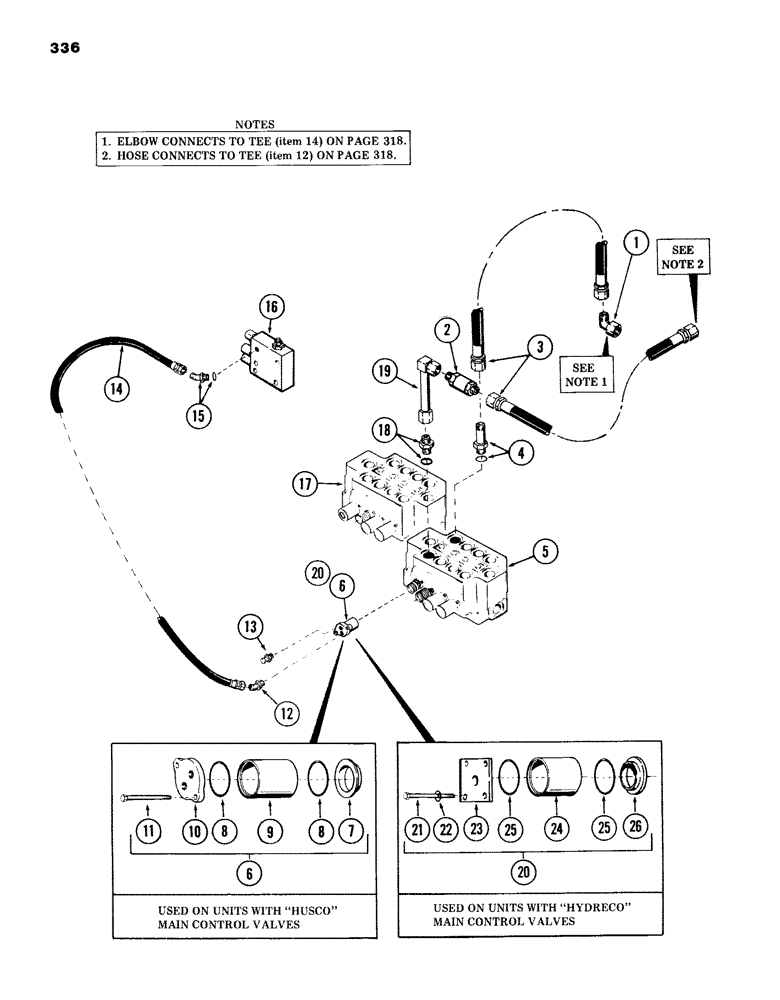

Запчасти Case 980B (336) - FAST HOIST TUBING, (USED ON UNITS WITH PIN 6204051 AND AFTER) (07) - HYDRAULIC SYSTEM

1

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree - 1" tube x 1-5/16" - 12, swivel

1шт.

2

S93154

VALVE

- check

1шт.

3

S8628

HOSE

- hydraulic

2шт.

4

S66480

CONNECTOR, ELEC

CONNECTOR - 1" tube x 1-5/16" - 12, straight

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

5

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 298)

1шт.

6

S232345

KIT

- spool end cap - (used on units with HUSCO control valves), Includes: Ref. 7 - 11

1шт.

7

S111267

WASHER

1шт.

8

S6394

O-RING

2шт.

9

S111268

SLEEVE

TUBE - cylinder

1шт.

10

S111269

HEAD

1шт.

11

S95658

BOLT

- 3/8" x 3-1/4" NC (Grade 8)

2шт.

12

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , 3/8" tube 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

13

D46258

PLUG

SCREW - bleeder

1шт.

14

S227396

HOSE ASSY.

HOSE - solenoid valve to main control valve

1шт.

15

S11252

ELBOW

- 45 degree - 3/8" tube x 9/16" - 18, adjustable

1шт.

16

REF

INSTRUCTION

VALVE - solenoid monoblock (See Figure 282)

1шт.

17

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 296)

1шт.

18

S7972

CONNECTOR, ELEC

CONNECTOR - 1" tube x 1-5/16" - 12

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

19

S234974

TUBE - main control valve to check valve 1" OD x 4.06" L

1шт.

20

S614908

CAP

KIT - spool end cap - (used on units with HYDRECO control valves), Includes: Ref. 22 - 26

1шт.

21

13-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

- 1/4" x 3-1/2" NC (Grade 5)

4шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

23

S238444

CAP

- end

1шт.

24

S238445

SLEEVE

1шт.

25

S5728

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2шт.

26

S238446

BACK-UP RING

RETAINER

1шт.
