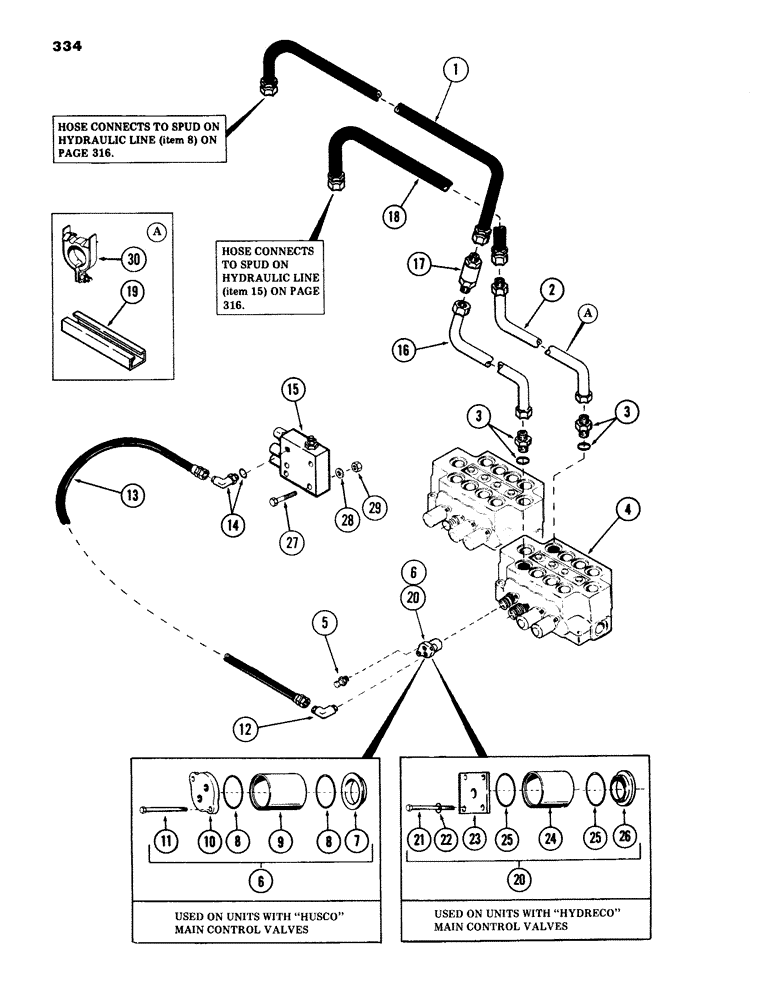

Запчасти Case 980B (334) - FAST HOIST TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S8628

HOSE

- hydraulic

1шт.

2

S229140

TUBE,1.25" OD x 9.85, 12.5" L

- main control valve to hose

1шт.

3

S7972

CONNECTOR, ELEC

CONNECTOR - 1" tube x 1-5/16" - 12

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

4

REF

INSTRUCTION

VALVE - 4 spool main control (See Figure 284)

1шт.

5

D46258

PLUG

SCREW - bleeder

1шт.

6

S232345

KIT

- spool end cap - (used on units with HUSCO control valves), Includes: Ref. 7 - 11

1шт.

7

S111267

WASHER

1шт.

8

S6394

O-RING

2шт.

9

S111268

SLEEVE

TUBE - cylinder

1шт.

10

S111269

HEAD

1шт.

11

S95658

BOLT

- 3/8" - 3-1/4" NC (Grade 8)

2шт.

12

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 3/8" tube x 9/16" - 18 x 1/4" NPT

1шт.

13

S227396

HOSE ASSY.

HOSE - hydraulic

1шт.

14

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable, 3/8" tube 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

REF

INSTRUCTION

VALVE - solenoid monoblock (See Figure 280)

1шт.

16

S231140

TUBE - main control valve to check valve 1.25" OD x 12.55, 10.15" L

1шт.

17

S93154

VALVE

- check

1шт.

18

S8628

HOSE

- hydraulic

1шт.

19

S98414

CHANNEL

1шт.

20

S614908

CAP

KIT - spool end cap - (used on units with HYDRECO control valves), Includes: Ref. 21 - 26

1шт.

21

13-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

- 1/4" NC x 3-1/2" (Grade 5)

4шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

23

S238444

CAP

- end

1шт.

24

S238445

SLEEVE

1шт.

25

S5728

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2шт.

26

S238446

BACK-UP RING

RETAINER

1шт.

27

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

28

195-102

WASHER,1/4"

- flat, 5/16"

2шт.

29

131-462

NUT,5/16"-18

NUT - self locking, 5/16" NC

2шт.

30

S93266

CLAMP

3шт.
