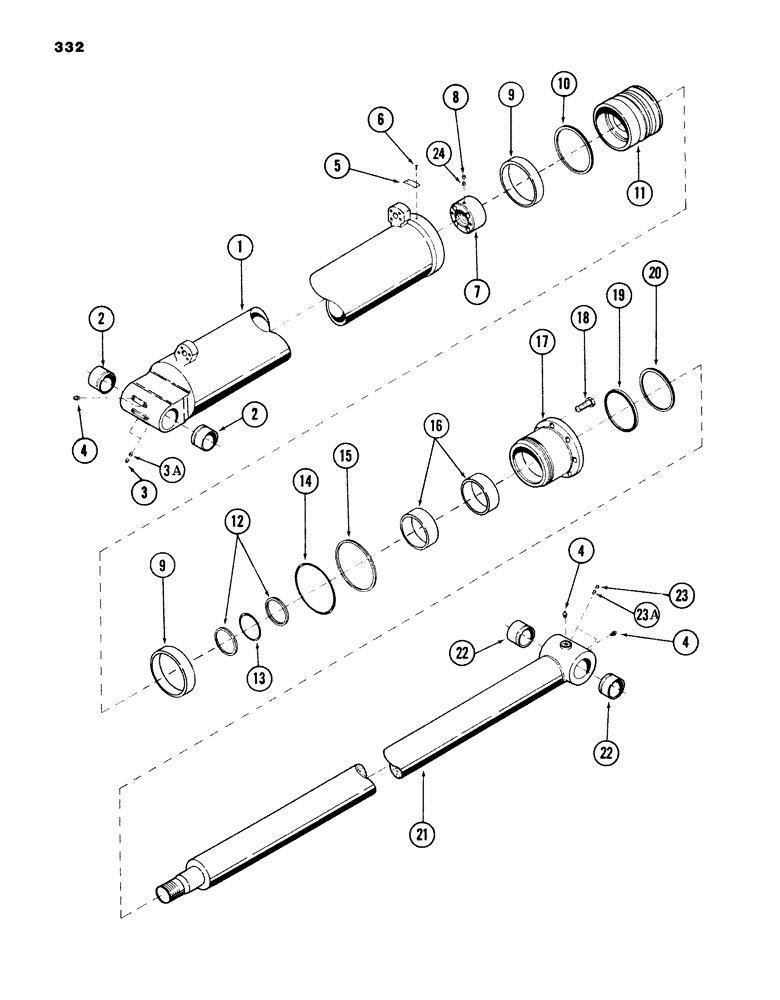

Запчасти Case 980B (332) - TOOL CYLINDER, (5.50" ID X 36.30" STROKE) (07) - HYDRAULIC SYSTEM

S955024

CYLINDER, tool, Includes: Ref. 1 - 24

1шт.

1

S608966

TUBE, cylinder, Includes: Ref. 2 - 3A 53" L

1шт.

2

S229548

BUSHING

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

3a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

4

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/8" NPT - (straight)

4шт.

5

NSS

NOT SOLD SEPARAT

TAG, identification

1шт.

6

S23395

SCREW

drive - No. 7 nc x 5/16"

2шт.

7

S510034

NUT

lock

1шт.

8

178-882

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, set - 1/4" - 20 NC x 3/8" (Replaces 83-46)

1шт.

9

S108947

RING

wear

2шт.

10

S228606

SEAL

SEAL

1шт.

11

S511152

PISTON

1шт.

12

S72731

OIL SEAL

RING, back-up

2шт.

13

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.512" OD

1шт.

14

S6793

O-RING,4.975" ID x 5.525" OD x 0.275"

"O" RING - 4.975" ID x 5.525" OD

1шт.

15

S114993

WASHER

back-up

1шт.

16

S236420

RING

wear

2шт.

17

S511153

HEAD

1шт.

18

114-714

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

CPSW - 3/4" - 16 NC x 2-1/4" Gr 8

8шт.

19

S105304

SEAL

rod

1шт.

20

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER

1шт.

21

S511154

ROD

Includes: Ref. 22 - 23A

1шт.

22

S229548

BUSHING

2шт.

23

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

23a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8"

2шт.

24

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8"

1шт.

S613323

SEAL,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

KIT, seal, Includes: Ref. 9, 10, 12 thru 16, 19 and 20

1шт.
