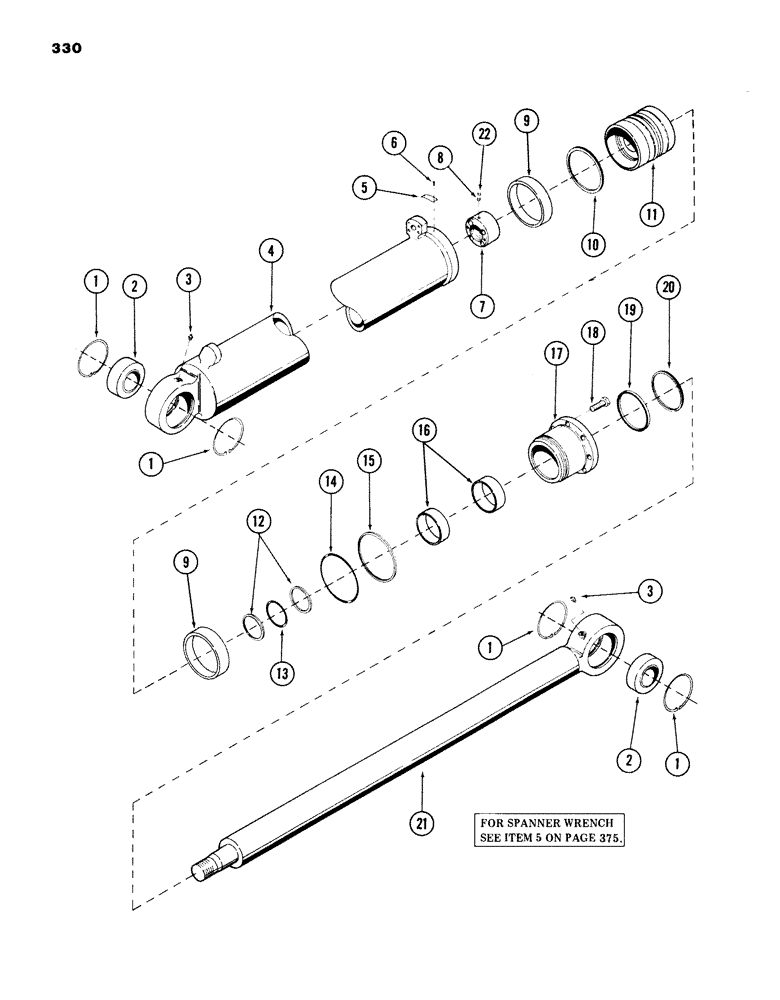

Запчасти Case 980B (330) - CROWD CYLINDER, (7" ID X 47.50" STROKE), (USED ON UNITS WITH PIN 6203914 AND AFTER) (07) - HYDRAULIC SYSTEM

S954307

CYLINDER

crowd, Includes: Ref. 1 - 22

1шт.

1

39325

SNAP RING,4.75", Int, #475

Ring, Snap, 4.75", Int, #475

4шт.

2

S104419

BUSHING

self aligning

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

2шт.

4

S608060

TUBE, cylinder 64.88" L

1шт.

5

NSS

NOT SOLD SEPARAT

TAG, identification

1шт.

6

S23395

SCREW

drive - No. 7 NC x 5/16"

2шт.

7

S509529

NUT

locking

1шт.

8

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8"

1шт.

9

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING, wear

2шт.

Part of seal kit, P/N S613319

1шт.

10

S234198

SEAL

1шт.

Part of seal kit, P/N S613319

1шт.

11

S509527

PISTON

1шт.

12

S114155

OIL SEAL

RING, back up

2шт.

Part of seal kit, P/N S613319

1шт.

13

S6596

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

"O" RING - 2.734" ID x 3.012" OD

1шт.

Part of seal kit, P/N S613319

1шт.

14

S6803

O-RING,6.475" ID x 7.025" OD x 0.275"

"O" RING - 6.475" ID x 7.025" OD

1шт.

Part of seal kit, P/N S613319

1шт.

15

S114167

BACK-UP RING

RING, back up

1шт.

Part of seal kit, P/N S613319

1шт.

16

S236422

OIL SEAL

RING, wear

2шт.

Part of seal kit, P/N S613319

1шт.

17

S509525

HEAD

1шт.

18

114-714

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

CPSW - 3/4" 16 NF x 2-1/4" Gr 8

10шт.

19

S116473

SEAL

rod (Replaces S103790)

1шт.

Part of seal kit, P/N S613319

1шт.

20

S104444

WIPER

1шт.

Part of seal kit, P/N S613319

1шт.

21

S509521

ROD

1шт.

22

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8"

1шт.

S613319

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

KIT, seal, Includes: Ref. 9, 10, 12 thru 16, 19 and 20

1шт.

Replaced by 178-882

1шт.
