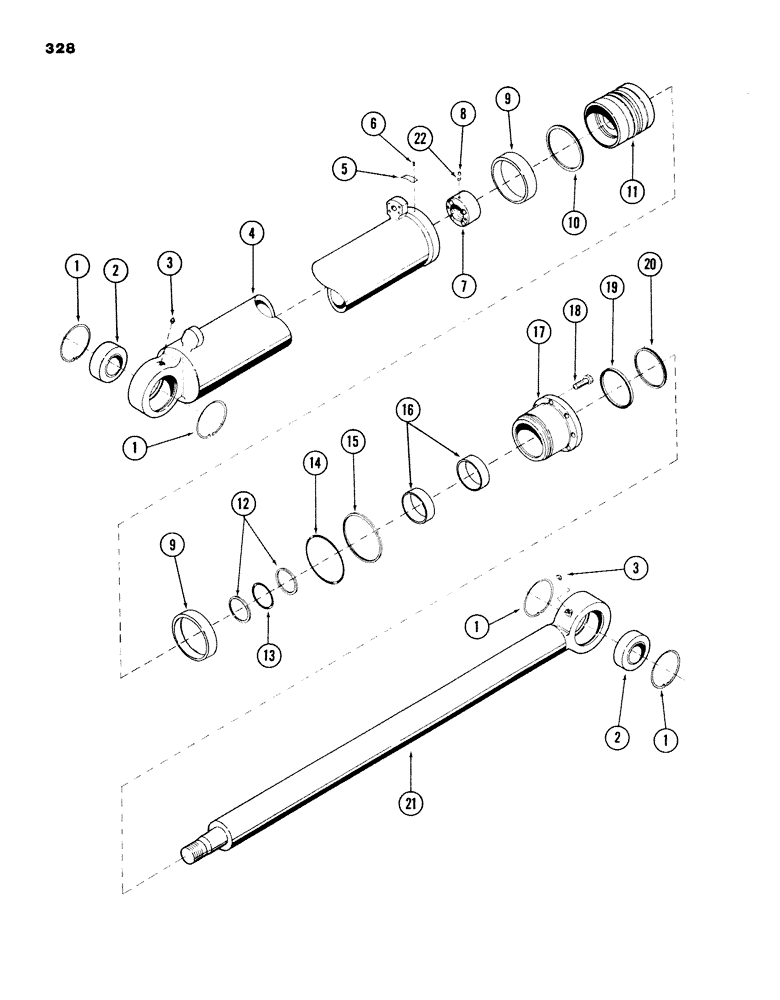

Запчасти Case 980B (328) - CROWD CYLINDER, (6.50" ID 47.50" STROKE), (USED ON UNITS PRIOR TO PIN 6203914) (07) - HYDRAULIC SYSTEM

S955023

CYLINDER, crowd, Includes: Ref. 1 - 22

1шт.

1

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, 4.331", Int, #433

4шт.

2

R37021

SPHERICAL BEARING,63.5mm ID x 111.13mm OD x 64.64mm W

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (straight)

2шт.

4

S608335

TUBE, cylinder 64.56" L

1шт.

5

NSS

NOT SOLD SEPARAT

TAG, identification

1шт.

6

S23395

SCREW

drive - No. 7 nc x 5/16"

2шт.

7

S510006

NUT

locking

1шт.

8

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8"

1шт.

Replaced by 178-882

1шт.

9

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR

2шт.

Part of seal kit, P/N S613322

1шт.

10

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

Part of seal kit, P/N S613322

1шт.

11

S511148

PISTON

1шт.

12

S114154

BACK-UP RING

RING, back up

2шт.

Part of seal kit, P/N S613322

1шт.

13

S6594

O-RING,2.484" ID x 2.762" OD x 0.139"

"O" RING - 2.484" ID x 2.750" OD

1шт.

Part of seal kit, P/N S613322

1шт.

14

S6801

O-RING,5.975" ID x 6.525" OD x 0.275"

"O" RING - 5.975" ID x 6.500" OD

1шт.

Part of seal kit, P/N S613322

1шт.

15

S114994

WASHER

RING, back up

1шт.

Part of seal kit, P/N S613322

1шт.

16

S236424

RING

wear

2шт.

Part of seal kit, P/N S613322

1шт.

17

S511149

HEAD

1шт.

18

114-714

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

CPSW - 3/4" - 16 NF x 2-1/4" Gr 8

10шт.

19

S109921

SEAL

rod

1шт.

Part of seal kit, P/N S613322

1шт.

20

S108245

WIPER SEAL

WIPER

1шт.

Part of seal kit, P/N S613322

1шт.

21

S511150

ROD

1шт.

22

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8"

1шт.

S613322

KIT

seal, Includes: Ref. 9, 10, 12 thru 16, 19 and 20

1шт.
