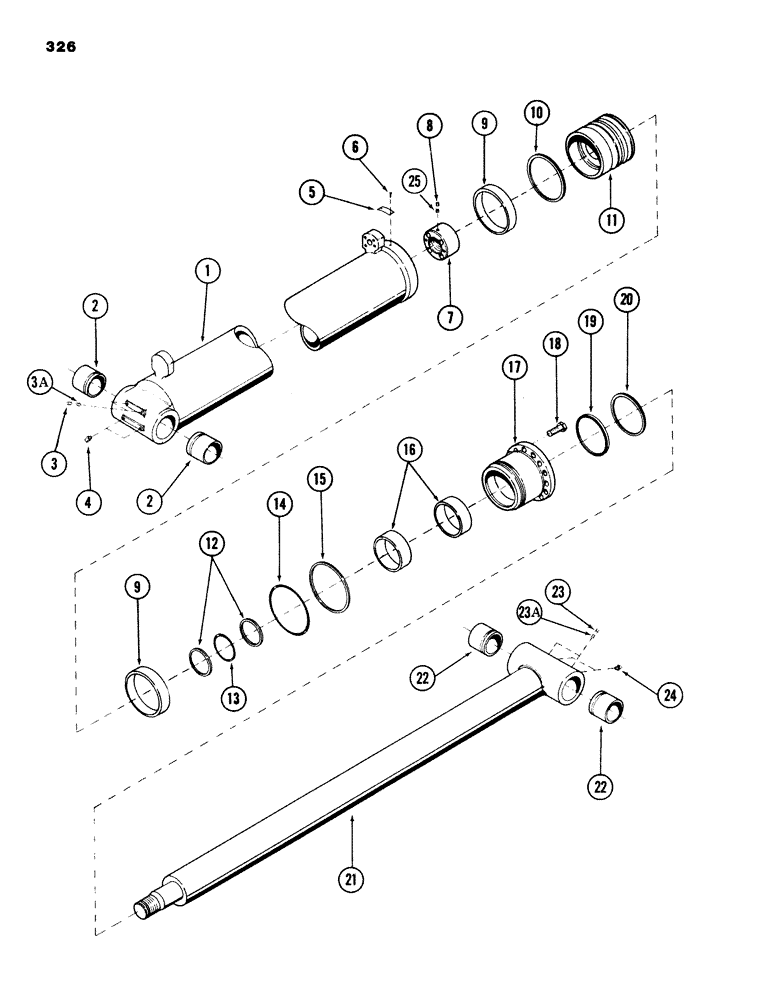

Запчасти Case 980B (326) - HOIST CYLINDER, (7" ID X 54.50" STROKE) (07) - HYDRAULIC SYSTEM

S954505

CYLINDER

hoist, Includes: Ref. 1 - 25

1шт.

1

S608332

TUBE,68.08" L

cylinder, Includes: Ref. 2 - 3A

1шт.

2

S229565

BUSHING

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8" (cup point)

2шт.

3a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8" (cone point)

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

NSS

NOT SOLD SEPARAT

TAG, identification

1шт.

6

S23395

SCREW

drive - No. 7 nc x 5/16"

2шт.

7

S509529

NUT

locking

1шт.

8

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8" (cup point)

1шт.

Replaced by 178-882

1шт.

9

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING, wear

2шт.

Part of seal kit, P/N S613319

1шт.

10

S234198

SEAL

1шт.

Part of seal kit, P/N S613319

1шт.

11

S509986

PISTON

1шт.

12

S114155

OIL SEAL

RING, back-up

2шт.

Part of seal kit, P/N S613319

1шт.

P/N S114155 (ref #12) IS A THICKER RING (REF#16) AND ONLY TAKES HALF AS MANY.

1шт.

13

S6596

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

"O" RING - 2.734" ID x 3.012" OD

1шт.

Part of seal kit, P/N S613319

1шт.

14

S6803

O-RING,6.475" ID x 7.025" OD x 0.275"

"O" RING - 6.475" ID x 7.025" OD

1шт.

Part of seal kit, P/N S613319

1шт.

15

S114167

BACK-UP RING

WASHER, back up

1шт.

Part of seal kit, P/N S613319

1шт.

16

S236422

OIL SEAL

RING, wear

2шт.

Part of seal kit, P/N S613319

1шт.

17

S509987

HEAD ASSY.

HEAD

1шт.

18

114-714

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

CPSW - 3/4" - 16 NF x 2-1/4" Gr 8

10шт.

19

S116473

SEAL

rod (Replaces S 103790)

1шт.

Part of seal kit, P/N S613319

1шт.

20

S104444

WIPER

1шт.

Part of seal kit, P/N S613319

1шт.

21

S509996

ROD

Includes: Ref. 22 - 23A

1шт.

22

S229565

BUSHING

2шт.

23

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8" (cup point)

2шт.

23a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" - 16 NC x 3/8" (cone point)

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (straight)

2шт.

25

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" - 20 NC x 3/8" (cone point)

1шт.

S613319

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

KIT, seal, Includes: Ref. 9, 10, 12 thru 16, 19 and 20

1шт.
