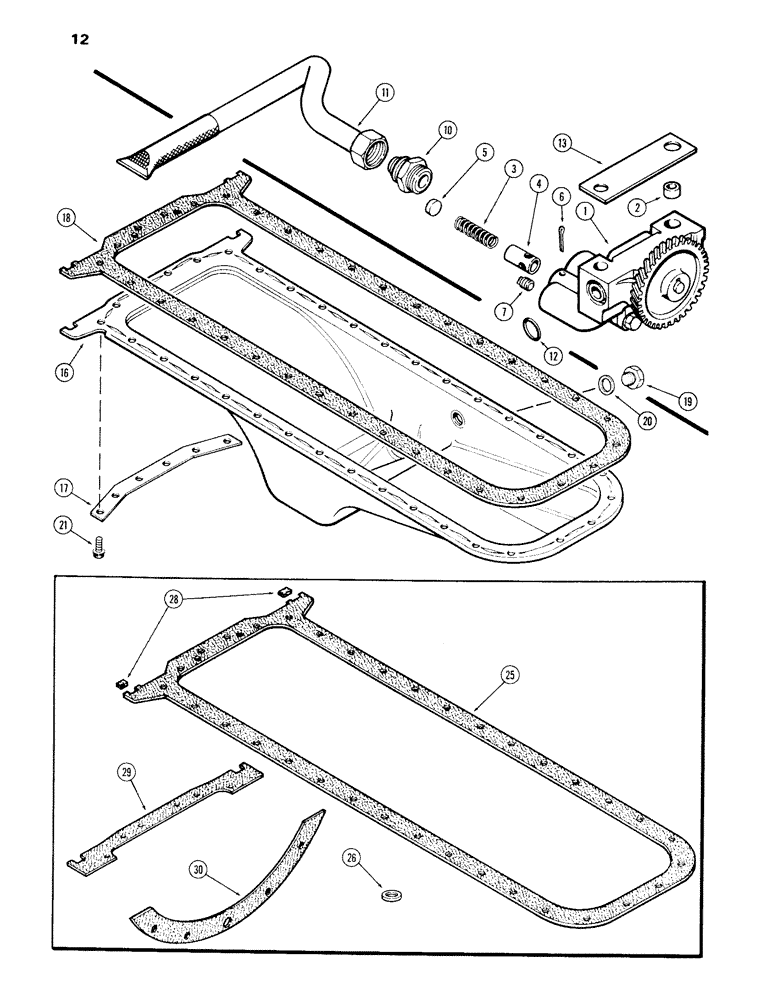

Запчасти Case 980B (012) - OIL PUMP, 504BDT DIESEL ENGINE (01) - ENGINE

1

A151665

PUMP

ASSY - oil (Replaces A144773), Includes: Ref. 2 - 7

1шт.

2

A58915

SLEEVE

- pump locating, 5/8 x 3/4 x 1/2" (15.88 x 19.05 x 12.7 mm)

1шт.

3

A151960

SPRING

- relief valve, 2" free length (50.8 mm) (Replaces A59111)

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1041

PLUG

- relief valve, 11/16" cup type (17.46 mm)

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, socket head

1шт.

10

A142004

CONNECTOR, ELEC

CONNECTOR - oil suction tube

1шт.

11

A139711

TUBE

SCREEN - oil suction tube

1шт.

12

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 mm)

1шт.

13

A58859

SHIM,.005" Thk

Oil pump to front brg. cap (0.13 mm) .005" Thk

1шт.

16

A148720

PAN, ENGINE OIL

PAN - oil

1шт.

17

A58932

STRAP

- pan reinforcement, oil

1шт.

18

A150688

GASKET

- oil pan (Order A152479 kit, see below)

1шт.

19

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

20

A27968

RING

- drain plug, 7/8 x 1-1/8 x 1/16" copper (22.23 x 28.58 x 1.59 mm), oil pan

1шт.

21

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT ASSY - 3/8 x 7/8" NC hex, Sems, oil pan

34шт.

A152479

GASKET KIT

- oil pan (Replaces A46005), Includes: Ref. 25 - 30

1шт.

For complete engine overhaul order 1 - A151404 valve grind kit, 1 - A44075 cylinder block kit and 1 - A152479 oil pan kit from figure 12

1шт.

25

A150688

GASKET

- oil pan kit

1шт.

26

A27988

LEVER

GASKET - drain plug, 7/8 x 1-1/8 x 1/16" copper (22.23 x 28.58 x 1.59 mm), oil pan kit

1шт.

A152424

GASKET

REAR SEAL KIT - (Used when crawler is split and oil pan is not removed), oil pan gasket kit, Includes: Ref. 28 - 30

1шт.

28

A150690

OIL PAN GASKET SET

- corners (not used), oil pan kit

2шт.

29

A150689

GASKET

- flywheel cover (not used), oil pan kit

1шт.

30

A57966

GASKET

- housing, oil pan kit

1шт.
