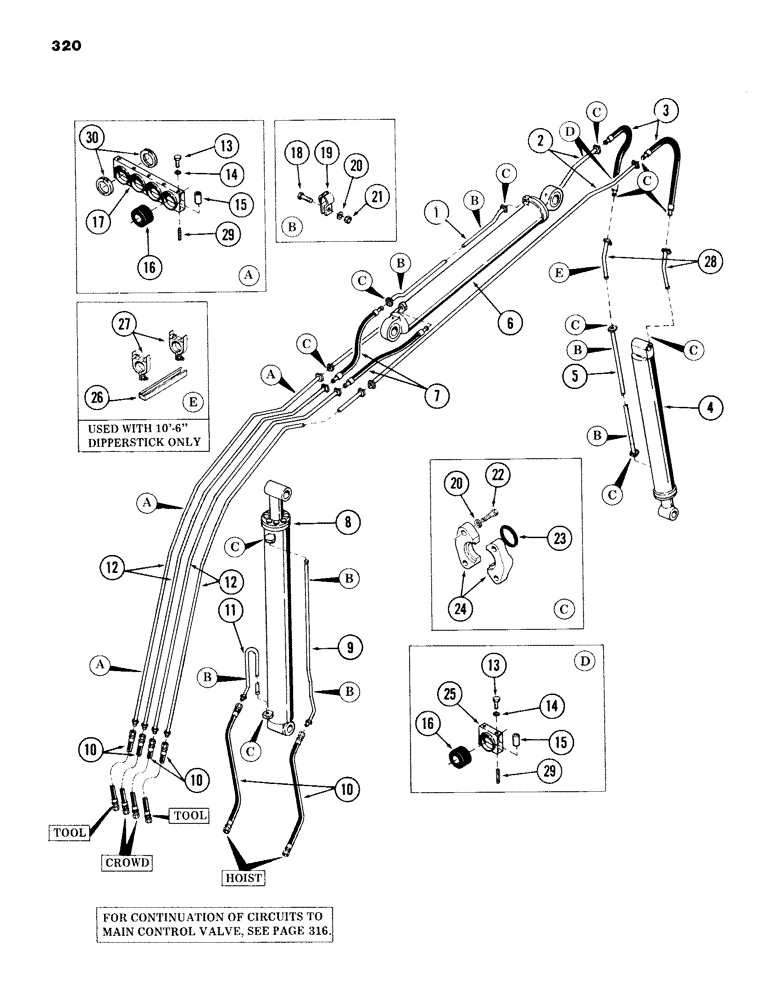

Запчасти Case 980B (320) - BOOM AND DIPPERSTICK TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S229982

TUBE ASSY.,1.25" OD x 52.83, 0.75" L

LINE, hydraulic

1шт.

2

S511790

TUBE,1.25" OD x 121.67, 4.25" L

LINE, hydraulic

2шт.

3

S229987

HOSE ASSY.

HOSE, high pressure

2шт.

4

REF

INSTRUCTION

CYLINDER, tool - (for breakdown, see Figure 332)

1шт.

5

S229983

TUBE,1.25" OD x 41.61, 0.75" L

LINE, hydraulic

1шт.

6

REF

INSTRUCTION

CYLINDER, crowd - (for breakdown, see Figure 328)

1шт.

7

S229986

HOSE ASSY.

HOSE, high pressure

2шт.

8

REF

INSTRUCTION

CYLINDER, hoist - (for breakdown, see Figure 326)

1шт.

9

S511049

LINE, hydraulic 1.25" OD

1шт.

10

S233927

HOSE

high pressure - 1" ID x 36" long - (with 1-5/16" - 12 female pressed on couplings)

6шт.

11

S513076

TUBE,1.25" OD x 14.81, 5.06" L

LINE, hydraulic

1шт.

12

S610599

TUBE,1.25" OD x 99.13, 58.38" L

LINE, hydraulic

4шт.

S111303

COLLAR

- (on tube)

8шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

S106647

TUBE NUT

NUT - 3/8" - 16 NC

1шт.

16

S106646

BUSHING

split

1шт.

17

S106645

CLAMP

1шт.

18

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

19

S106606

CLAMP

1шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

129-104

NUT,7/16"-14, G5

1шт.

22

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

23

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.750" OD

1шт.

24

A12301

CLAMP,Half

half

1шт.

25

S106643

CLAMP

1шт.

26

S105626

CHANNEL

1шт.

27

S93266

CLAMP

2шт.

28

S235041

TUBE ASSY.,1.25" OD x 15.44, 0.58" L

LINE, hydraulic - (used with 10'-6" dipperstick only)

2шт.

29

S109217

STUD

1шт.

30

S111303

COLLAR

8шт.
