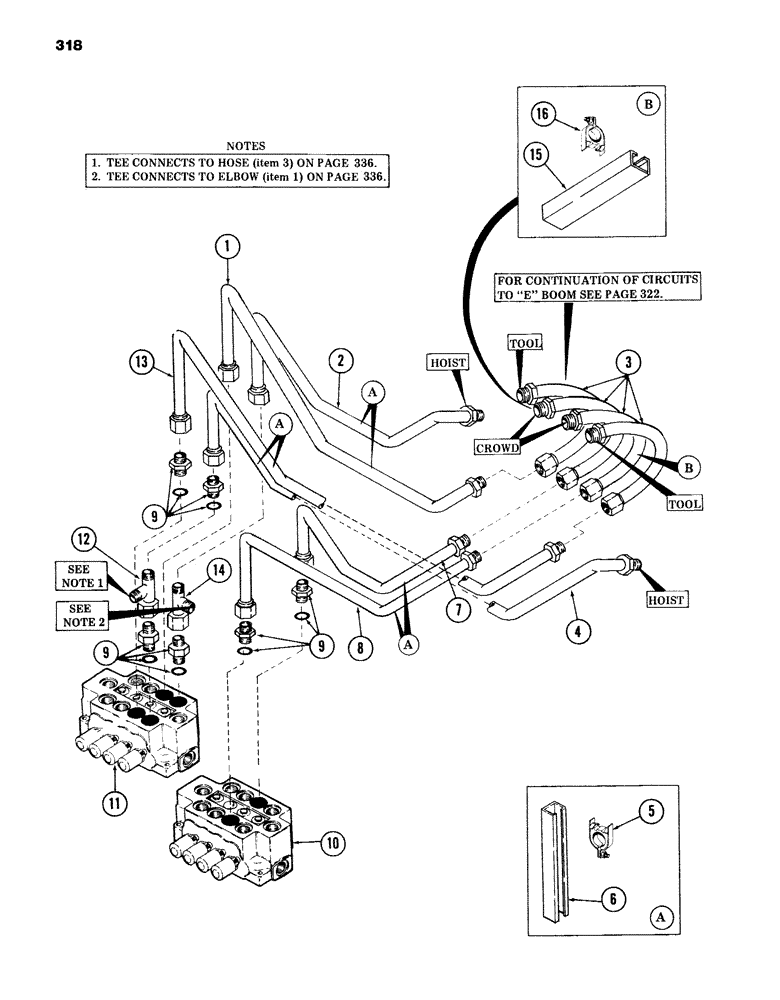

Запчасти Case 980B (318) - CROWD, HOIST AND TOOL TUBING, (MAIN VALVES TO BOOM), (USED ON UNITS WITH PIN 6204051 AND AFTER) (07) - HYDRAULIC SYSTEM

1

S512392

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

2

S512427

TUBE ASSY.

TUBE - hydraulic

1шт.

3

S234334

TUBE ASSY.

TUBE - hydraulic

4шт.

4

S512394

TUBE ASSY.

TUBE - hydraulic

1шт.

5

S93266

CLAMP

- tube

6шт.

6

S98963

CHANNEL - tube mounting

2шт.

7

S512419

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

8

S512391

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

9

S7972

CONNECTOR, ELEC

CONNECTOR - 1" tube x 1-5/16" - 12

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

6шт.

10

REF

INSTRUCTION

VALVE - 4-spool main control (INSIDE) (See Figure 296

1шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control (OUTSIDE) (See Figure 298)

1шт.

12

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1" tube x 1" tube x 1-5/16" - 12

1шт.

13

S512393

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

14

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1" tube x 1" tube x 1-5/16" - 12

1шт.

15

S98782

CHANNEL

- tube mounting

1шт.

16

S93266

CLAMP

- tube

4шт.
