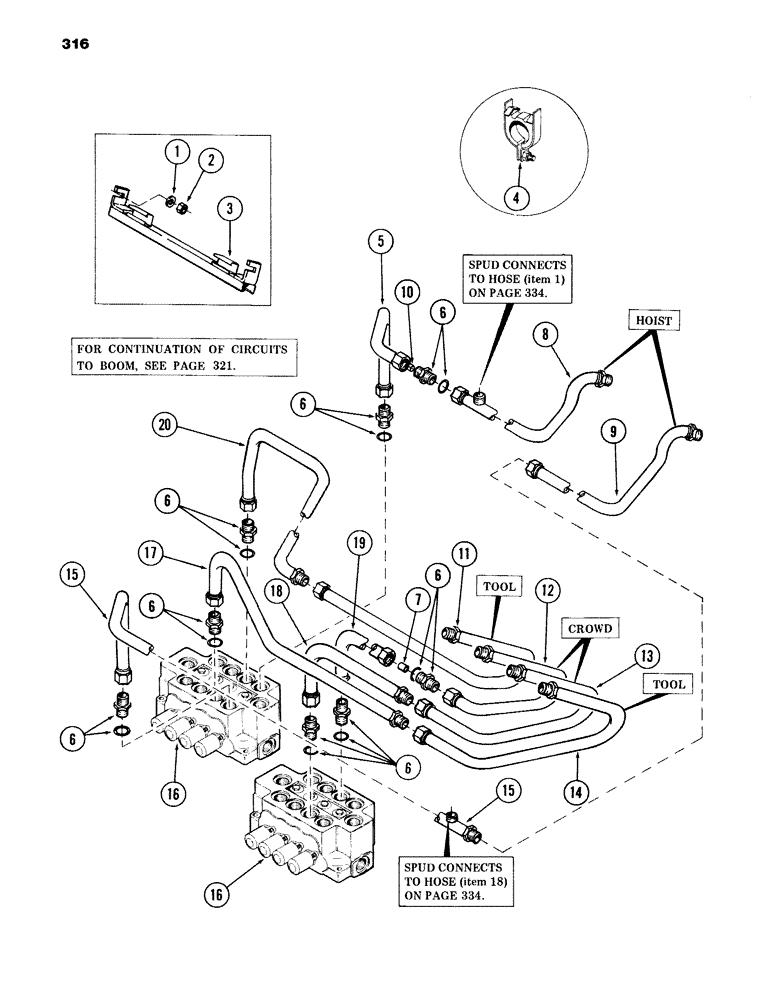

Запчасти Case 980B (316) - CROWD, HOIST AND TOOL TUBING FROM VALVE TO BOOM, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S95569

WASHER

flat - 1/2"

2шт.

2

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

2шт.

3

S231312

BRACKET, clamp mounting

1шт.

4

S93266

CLAMP

1шт.

5

S510967

TUBE,1.25" OD

LINE, hydraulic

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

8шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

8шт.

7

D56252

FITTING

RESTRICTOR, flow

1шт.

8

NSS

NOT SOLD SEPARAT

LINE, hydraulic

1шт.

9

S510965

TUBE,1.25" OD

LINE, hydraulic

1шт.

10

S109311

RESTRICTOR

RESTRICTER, flow

1шт.

11

S510970

TUBE,1.25" OD

LINE, hydraulic

1шт.

12

S510969

TUBE,1.25" OD

LINE, hydraulic

1шт.

13

S510968

TUBE,1.25" OD

LINE, hydraulic

1шт.

14

S231142

TUBE,1.25" OD

LINE, hydraulic

1шт.

15

S231150

TUBE,1.25" OD

LINE, hydraulic

1шт.

16

REF

INSTRUCTION

VALVE, 4-spool main control - (for breakdown, see Figures 284 or 286)

1шт.

17

S231143

TUBE,1.25" OD

LINE, hydraulic

1шт.

18

S231145

LINE, hydraulic 1.25" OD x 16.05, 7.27" L

1шт.

19

S237061

TUBE ASSY.,1.25" OD x 13.53, 7.27" L

LINE, hydraulic

1шт.

FIG 19 LONG END IS 13.471/13.53 SHORT END IS 7.17/7.27

1шт.

20

S513665

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.
