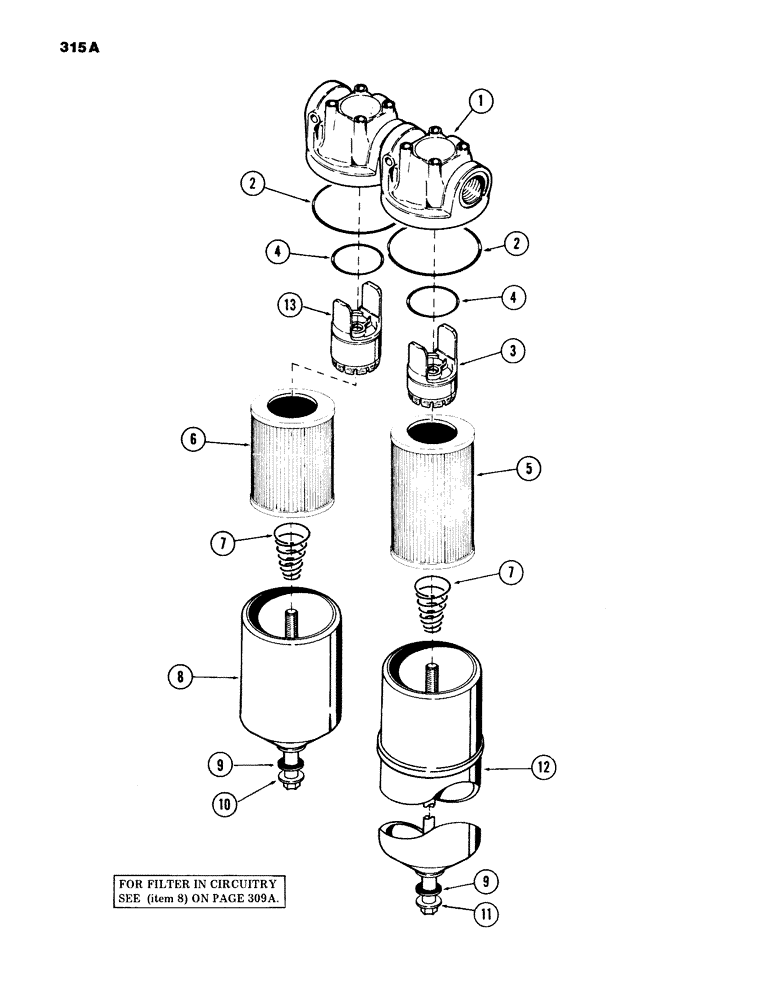

Запчасти Case 980B (315A) - HYDRAULIC OIL FILTER, (USED ON UMITS WITH PIN 6204133 AND AFTER) (07) - HYDRAULIC SYSTEM

S514150

FILTER - hydraulic oil, Includes: Ref. 1 - 13

2шт.

1

S116426

HEAD

filter, Includes: Ref. 2

1шт.

2

S107789

O-RING

2шт.

Should be S229904 per T/S 219-82.

1шт.

3

S107803

VALVE

- by-pass, Includes: Ref. 4

1шт.

4

S107967

O-RING,2.109" ID x 0.139" Width

2шт.

5

S111605

ELEMENT

- filter - (10 micron)

1шт.

6

S116427

ELEMENT

- strainer

1шт.

7

S104930

SPRING

- coil

2шт.

8

S113853

HOUSING

- filter

1шт.

9

S107793

SEALING WASHER

WASHER - gasket

2шт.

10

S111607

BOLT

- hex hd

1шт.

11

S107794

BOLT

- hex hd

1шт.

12

S116429

HOUSING

- filter

1шт.

13

S116766

VALVE

- strainer

1шт.

14

S111118

ELEMENT

- filter - (use as element to flush hydraulic system) - (NOT ILLUSTRATED)

1шт.
