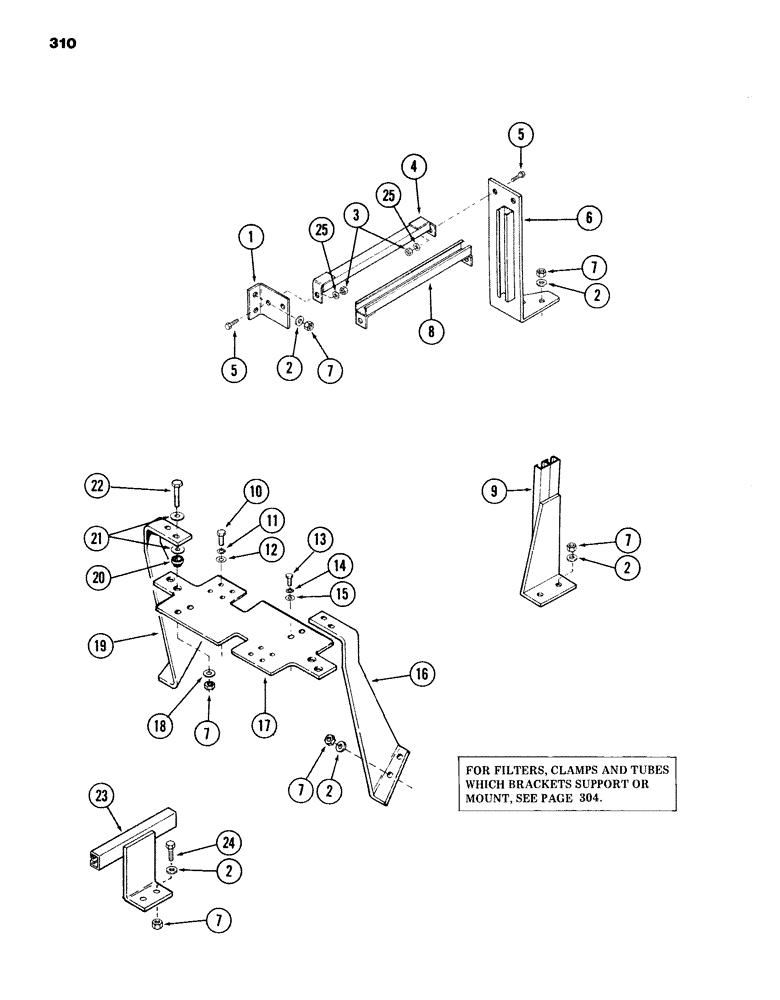

Запчасти Case 980B (310) - FILTERS AND TUBE MOUNTING BRACKETS, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

S227682

BRACKET, angle - (mounts to side of ref 19)

1шт.

2

S95569

WASHER

flat - 1/2"

1шт.

3

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

4

S229696

BRACKET

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

6

S229697

BRACKET

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

1шт.

8

S229695

BRACKET

1шт.

9

S229711

BRACKET

1шт.

10

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

(Mounts ref 8 on figure 304 to bracket) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

8шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

12

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat - 3/8"

8шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Mounts ref 17 on figure 304 to bracket Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

195-102

WASHER,1/4"

flat - 5/16"

4шт.

16

S511775

BRACKET

1шт.

17

S512143

BRACKET

PLATE, filter mounting

1шт.

18

95-8

WASHER,1/2"

flat 1/2"

4шт.

19

S511774

BRACKET

1шт.

20

S100886

MOUNT, rubber

4шт.

21

195-2260

WASHER,5/8" x 2" x .095"

flat - 1/2"

8шт.

22

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

CPSW - 1/2" - 13 NC x 2-1/2" Gr5

4шт.

23

S229716

BRACKET

1шт.

24

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

25

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat - 13/32"

4шт.
