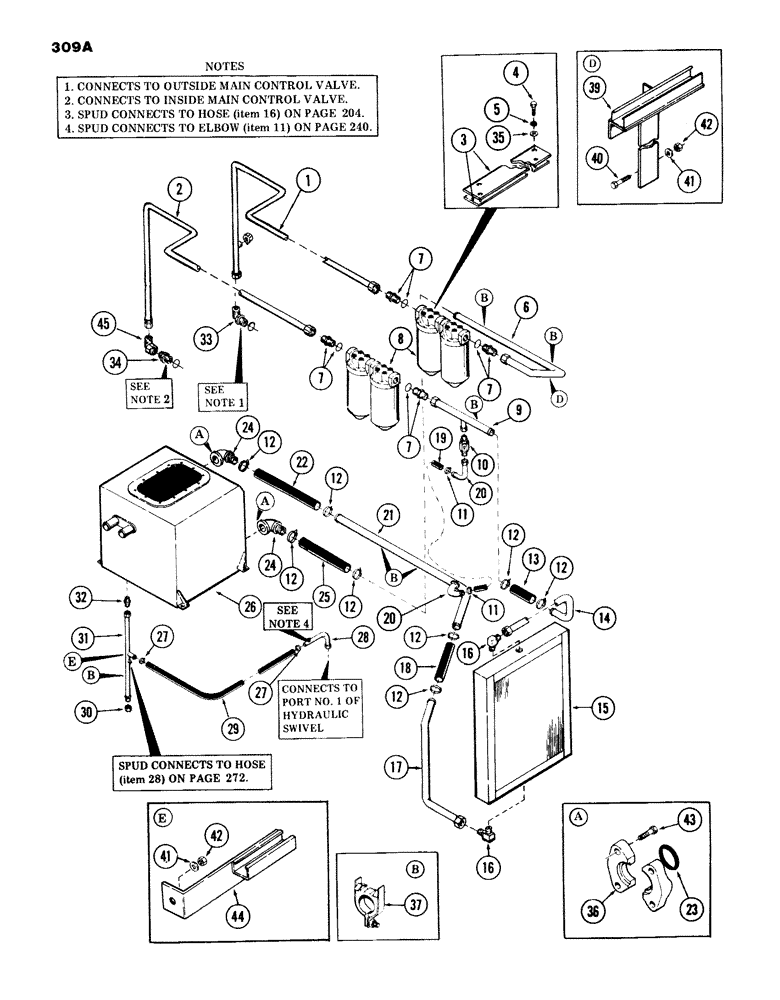

Запчасти Case 980B (309A) - MAIN VALES TO FILTERS TO TANK, AND COOLER TUBING, (USED ON UNITS WITH PIN 6204133 AND AFTER) (07) - HYDRAULIC SYSTEM

1

S614653

TUBE, hydraulic

1шт.

2

S514151

TUBE, hydraulic 1.5" OD

1шт.

3

S238226

PLATE

BRACKET, filter tie

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

6

S236720

TUBE, hydraulic 1.5" OD x 33.56, 11.34" L

1шт.

7

S7978

ROD, CONNECTING

CONNECTOR - (1-1/2" tube) - 1-7/8" - 12 male x 1-7/8" 12 male - 37 degrees flared

4шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O"RING

4шт.

8

REF

INSTRUCTION

FILTER, hydraulic oil - (for breakdown, see Figure 315A)

2шт.

9

S234838

TUBE, hydraulic

1шт.

10

S105386

VALVE

check

1шт.

11

214-371

CLAMP,1.56"-1.81", T-Bolt

hose

2шт.

12

S85429

CLAMP

hose

8шт.

13

S114935

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 18-1/2" long

1шт.

14

S229762

TUBE, hydraulic 1.5" OD x 19.15, 5.6" L

1шт.

15

REF

INSTRUCTION

COOLER, oil - (see item 8 on Figure 74)

1шт.

16

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

- 90 degrees - (1-1/4" tube) - 1-5/8" - 12 male x 1" NPT male - 37 degrees flared

2шт.

17

S234836

TUBE, hydraulic 1.5" OD

1шт.

18

S114935

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 14" long

1шт.

19

S202582

LINE

HOSE, low pressure - (BULK) - 1 piece - 1-1/4" ID x 7" long

1шт.

20

S215412

TUBE,1.25" OD x 3" L

hydraulic

2шт.

21

S512420

LINE

TUBE, hydraulic

1шт.

22

S114935

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 17" long

1шт.

23

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O"RING - 1.859" ID x 2.137" OD

2шт.

24

NLS

NO LONGER SERVICED

90 degrees

2шт.

25

S114935

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 9" long

1шт.

26

REF

INSTRUCTION

TANK, hydraulic oil - (See Figures 258 or 260)

1шт.

27

214-378

CLAMP,1.40"-1.56", T-Bolt

hose

2шт.

28

S229693

TUBE,1" OD x 3, 3.75" L

hydraulic

1шт.

29

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 75" long 1.00" ID Bulk, SAE 100R3

1шт.

30

218-760

CAP,37 Degree, 1 7/8"-12

- (1-1/2" tube) - 1-7/8" - 12 female - 37deg. flared

1шт.

31

S233846

TUBE, hydraulic

1шт.

32

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - (1-1/2" tube) - 1-7/8" - 12 male x 1-1/2" NPT male - 37 degrees flared

1шт.

33

S64372

FITTING

ELBOW - 90 degrees adjustable - (1-1/2" tube) - 1-7/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared

1шт.

S6073

RING

"O"RING

1шт.

34

S80815

FITTING

CONNECTOR - (1-1/2" tube) - 1-5/8" - 12 male x 1-7/8" 12 male - 37 degree flared

3шт.

S6073

RING

"O" RING

3шт.

35

195-104

WASHER,3/8"

- flat 3/8"

8шт.

36

A14157

FLANGE

CLAMP, half flange

4шт.

37

S98324

CLAMP

1шт.

38

S107793

SEALING WASHER

GASKET, washer

2шт.

39

S234786

BRACKET

filter mounting

2шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

41

195-530

WASHER,7/16"

flat - 1/2"

5шт.

42

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" nc

5шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2" nc x 1-1/4" Gr 5

8шт.

44

S235039

BRACKET

clamp mounting

1шт.

45

218-5236

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, 37 Degree Fem Sw

90 degree swivel - (1-1/2" tube) - 1-7/8" - 12 male x 1-7/8" - 12 female - 37 degree flared

1шт.

46

218-758

CAP,37 Degree, 1 5/16"-12

- (1" tube) - 1-5/16" - 12 female - 37 degree flared - (used only when unit is not equipped with OPTIONAL leveler)

1шт.
