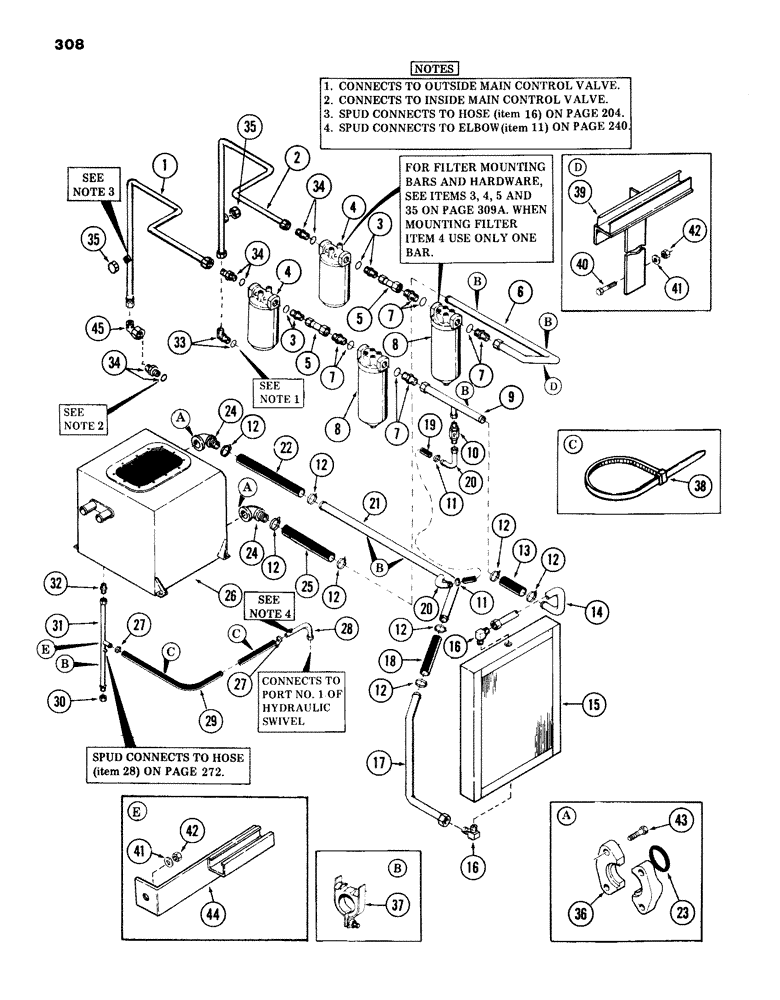

Запчасти Case 980B (308) - MAIN VALVES TO FILTERS TO TANK AND COOLER TUBING, (USED ON UNITS WITH PIN 6204051 THRU 6204132) (07) - HYDRAULIC SYSTEM

1

S512418

TUBE - main valve to hydraulic oil filter 1.5" OD

1шт.

2

S612225

TUBE - main valve to hydraulic oil filter

1шт.

3

S7976

CONNECTOR, ELEC

CONNECTOR - 1/4" tube x 1-5/8" - 12

2шт.

S6073

RING

O-RING

2шт.

4

REF

INSTRUCTION

FILTER - hydraulic oil - (See Figure 312)

2шт.

5

S229135

TUBE - hydraulic filter to hydraulic filter

2шт.

6

S236720

TUBE - hydraulic filter to oil tank 1.5" OD x 33.56, 11.34" L

1шт.

7

S7978

ROD, CONNECTING

CONNECTOR - 1-1/2" tube x 1-7/8" - 12

4шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

O-RING

4шт.

8

REF

INSTRUCTION

FILTER - hydraulic oil - (See Figure 314)

2шт.

9

S234838

TUBE - hydraulic filter to oil cooler

1шт.

10

S105386

VALVE

- check

1шт.

11

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

12

S85429

CLAMP

- hose

8шт.

13

S114935

HOSE

- hydraulic, 18-1/2" long

1шт.

14

S229762

TUBE - oil cooler 1.5" OD x 19.15, 5.6" L

1шт.

15

REF

INSTRUCTION

COOLER - oil (See reference 8 on Figure 74)

1шт.

16

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

- 90 degrees - 1-1/4" tube x 1-1/4" PT

2шт.

17

S234836

TUBE - oil cooler 1.5" OD

1шт.

18

S114935

HOSE

- hydraulic x 14" long (355 mm)

1шт.

19

S202582

LINE

HOSE - hydraulic 7" long (117 mm)

1шт.

20

S215412

TUBE,1.25" OD x 3" L

- hydraulic

2шт.

21

S512420

LINE

TUBE - oil cooler to oil tank

1шт.

22

S114935

HOSE

- hydraulic, 17" long (431 mm)

1шт.

23

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

2шт.

24

S236134

- 90 degrees

2шт.

25

S114935

HOSE

- hydraulic, 9" long (228 mm)

1шт.

26

REF

INSTRUCTION

TANK - hydraulic oil - (See Figures 258 or 260)

1шт.

27

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

28

S229693

TUBE,1" OD x 3, 3.75" L

- hydraulic

1шт.

29

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- 75" long (1.90 m) 1.00" ID Bulk, SAE 100R3

1шт.

30

218-760

CAP,37 Degree, 1 7/8"-12

- 1-1/2" tube x 1-7/8" - 12

1шт.

31

S233846

TUBE - hydraulic

1шт.

32

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

CONNECTOR - 1-1/2" tube x 1-1/2" PT

1шт.

33

S64372

FITTING

ELBOW - 90 degrees - 1-1/2" tube x 1-5/8" - 12

1шт.

S6073

RING

O-RING

1шт.

34

S80815

FITTING

CONNECTOR - 1-1/2" tube x 1-7/8" - 12

3шт.

S6073

RING

O-RING

3шт.

35

218-758

CAP,37 Degree, 1 5/16"-12

- 1" tube x 1-5/16" - 12

2шт.

36

A14157

FLANGE

CLAMP - tube

4шт.

37

S98324

CLAMP

- tube

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.

39

S234786

BRACKET

filter mounting

2шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

41

195-530

WASHER,7/16"

- flat, 1/2"

5шт.

42

131-70

NUT,1/2"-13, GB

NUT - lock, 1/2" NC hex

5шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2" x 1-1/4" NC (Grade 5)

8шт.

44

S235039

BRACKET

- clamp mounting

1шт.

45

218-5236

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, 37 Degree Fem Sw

- 90 degrees - 1-1/2" tube x 1-7/8" - 12, swivel

1шт.
