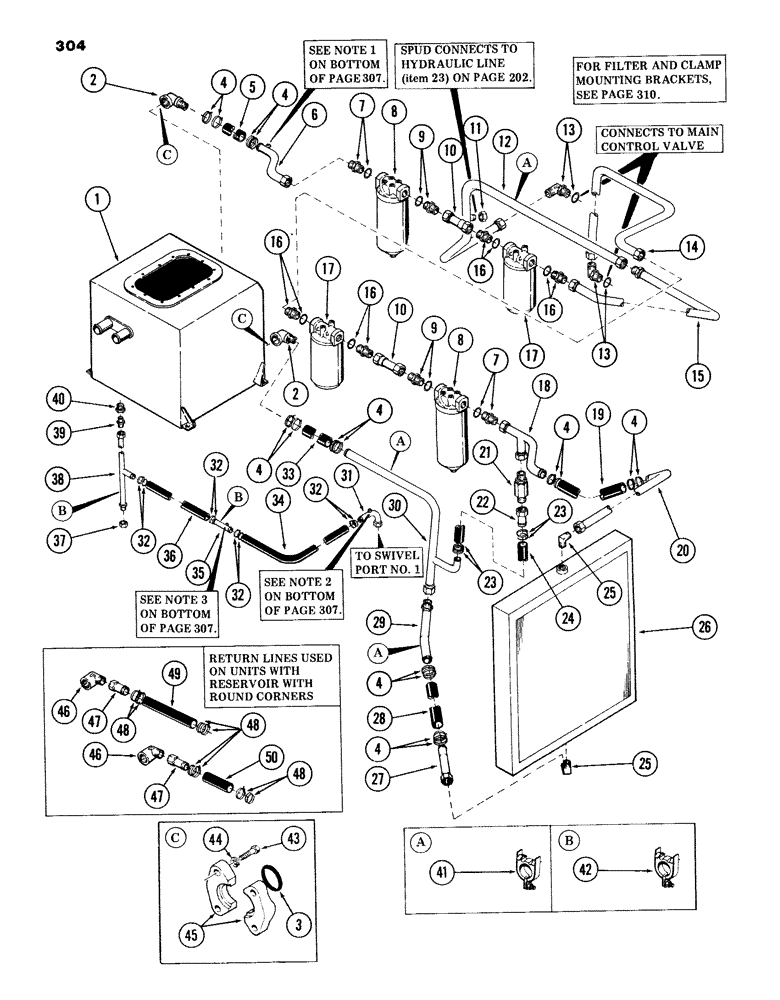

Запчасти Case 980B (304) - MAIN VALVE TO RESERVOIR AND COOLER TUBING, (USED ON UNITS PRIOR TO PIN 6204051) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR, hydraulic oil - (for breakdown, see Figures 258 or 260)

1шт.

2

NLS

NO LONGER SERVICED

90 degrees

2шт.

3

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.137" OD

2шт.

4

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

hose

1шт.

5

S112348

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 16" long

1шт.

6

S231180

LINE, hydraulic

1шт.

7

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

CONNECTOR - (1-1/2" tube) - 1-7/8" - 12 male x 1-7/8" - 12 male - 37 degrees flared

2шт.

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O" RING - 1.720" ID x 1.956" OD

2шт.

8

REF

INSTRUCTION

FILTER, hydraulic oil - (for breakdown, see Figure 314)

2шт.

S111118

ELEMENT

filter - (used only when flushing system) - (3 micron)

2шт.

9

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

CONNECTOR - (1-1/2" tube) - 1-7/8" - 12 male x 1-7/8" - 12 male - 37 degrees flared

2шт.

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O" RING - 1.720" ID x 1.956" OD

2шт.

10

S229135

LINE, hydraulic

2шт.

11

218-759

CAP,37 Degree, 1 5/8"-12

- (1-1/4" tube) - 1-5/8" - 12 female - 37 degrees flared - (used only when machine is not equipped with OPTIONAL leveler)

1шт.

12

S513667

TUBE ASSY.,1.5" OD

LINE, hydraulic

1шт.

13

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

90 degrees adjustable - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared

1шт.

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - 1.475" ID x 1.711" OD

2шт.

14

S511395

LINE, hydraulic - (used with hydraulic oil reservoir with round corners) 1.5" OD

1шт.

S513606

TUBE ASSY.,1.5" OD

LINE, hydraulic - (used with hydraulic oil reservoir with square corners)

1шт.

15

S229134

LINE, hydraulic 1.5" OD x 19.93, 12.65" L

1шт.

16

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared

4шт.

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - 1.475" ID x 1.711" OD

4шт.

17

REF

INSTRUCTION

FILTER, hydraulic oil - (for breakdown, see Figure 312)

2шт.

18

A510122

LINE, hydraulic

1шт.

19

S112348

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 17" long

1шт.

20

S232459

LINE, hydraulic 1.5" OD x 17.15, 5.6" L

1шт.

21

S105386

VALVE

check

1шт.

22

S215412

TUBE,1.25" OD x 3" L

LINE, hydraulic

1шт.

23

214-371

CLAMP,1.56"-1.81", T-Bolt

hose

2шт.

24

S202582

LINE

HOSE, low pressure - (BULK) - 1 piece - 1-1/4" ID x 7" long

1шт.

25

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

90 degrees - (1-1/4" tube) - 1-5/8" - 12 male x 1" NPT male

2шт.

26

REF

INSTRUCTION

COOLER, oil - (see page 75 for cooler and mounting hardware)

1шт.

27

S231138

LINE, hydraulic 1.5" OD x 7.42, 0.99" L

1шт.

28

S112348

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 18" long

1шт.

29

S229777

LINE, hydraulic 1.5" OD x 14.87, 8.24" L

1шт.

30

S510964

LINE, hydraulic

1шт.

31

S229693

TUBE,1" OD x 3, 3.75" L

LINE, hydraulic

1шт.

32

214-378

CLAMP,1.40"-1.56", T-Bolt

hose

8шт.

33

S112348

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 14" long

1шт.

34

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 40" long 1.00" ID Bulk, SAE 100R3

1шт.

35

S229691

LINE, hydraulic 1" OD x 8" L

1шт.

36

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 34" long 1.00" ID Bulk, SAE 100R3

1шт.

37

218-758

CAP,37 Degree, 1 5/16"-12

- (1" tube) - 1-5/16" - 12 male - 37 degrees flared

1шт.

38

S229760

LINE, hydraulic

1шт.

39

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (1" tube) - 1-5/16" - 12 male x 3/4" - 11 NPT male - 37 degrees flared

1шт.

40

221-1613

BUSHING

reducer - 1-1/2" - 11-1/2" NPT male x 3/4" - 14 NPT female

1шт.

41

S98324

CLAMP

1шт.

42

S91602

CLAMP

1шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

CPSW - 1/2" - 13 NC x 1-1/4" Gr 5

8шт.

44

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

45

A14157

FLANGE

CLAMP, half flange

4шт.

46

218-520

ELBOW, 90 degrees - (1-1/2" tube) - 1-7/8" - 12 male x 1-1/2" NPT female - 37 degrees flared 90º, 1 7/8"-12, 37º x 1 1/2"-11 1/2, Fem NPTF

2шт.

47

S213720

TUBE,1.5" OD x 4" L

LINE, hydraulic

2шт.

48

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

hose

1шт.

49

S112348

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 12" long

1шт.

50

S112348

HOSE

low pressure - (BULK) - 1 piece - 1-1/2" ID x 10" long

1шт.
