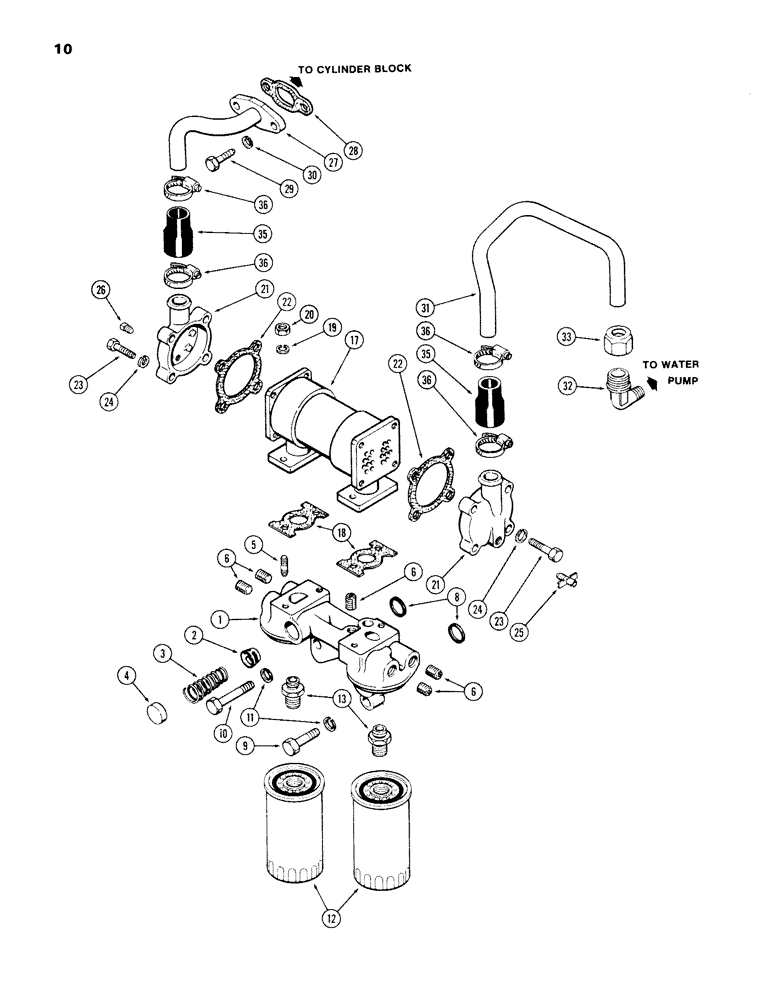

Запчасти Case 980B (010) - OIL FILTER AND COOLER, 504BDT DIESEL ENGINE (01) - ENGINE

1

A64107

BASE

ASSY - oil filter, Includes: Ref. 2 - 6

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type (31.75 mm)

1шт.

5

G102128

BOLT

- heat exchanger to base, 3/8" NC x 4-1/2"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, square socket head

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block, 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 mm)

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base, 1/2 x 3" NC hex

1шт.

11

195-33

WASHER,1/2"

- 1/2 x 1-1/16 x 13 gauge

2шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Order A44081)

2шт.

12

A44081

ENGINE OIL FILTER

ELEMENT - oil filter (For Service)

2шт.

For dual engine filter element, dealer must change filter adapter, P/N A63916, as well.

1шт.

13

A63916

ADAPTER

- filter to base (Replaces A64454)

2шт.

17

A63917

COOLER

HEAT EXCHANGER - oil

1шт.

18

A65359

GASKET

- heat exchanger to filter base

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

21

A64349

HOOD

COVER - heat exchanger ends

2шт.

22

A63920

GASKET

- end cover

2шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- end cover, 3/8 x 1-1/2" NC hex

8шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

271-107

DRAINCOCK - heat exchanger

1шт.

26

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" PT, square head

1шт.

27

A64350

TUBE

- heat, Serial Range: exchanger-block

1шт.

28

A58670

GASKET

- tube

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- tube to block, 1/2 x 2-1/4" NC hex

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

A65844

TUBE

- heat exchanger to water pump

1шт.

32

222-5038

ELBOW,90 Degree, 1 5/16"-12 x 3/4" NPT, Hi-seal

ASSY - tube to water pump, Includes: Ref. 33

1шт.

33

222-4935

NUT - for 1" tube (25.4 mm)

1шт.

35

A64353

HOSE

- end, Serial Range: covers-tubes

2шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

4шт.
