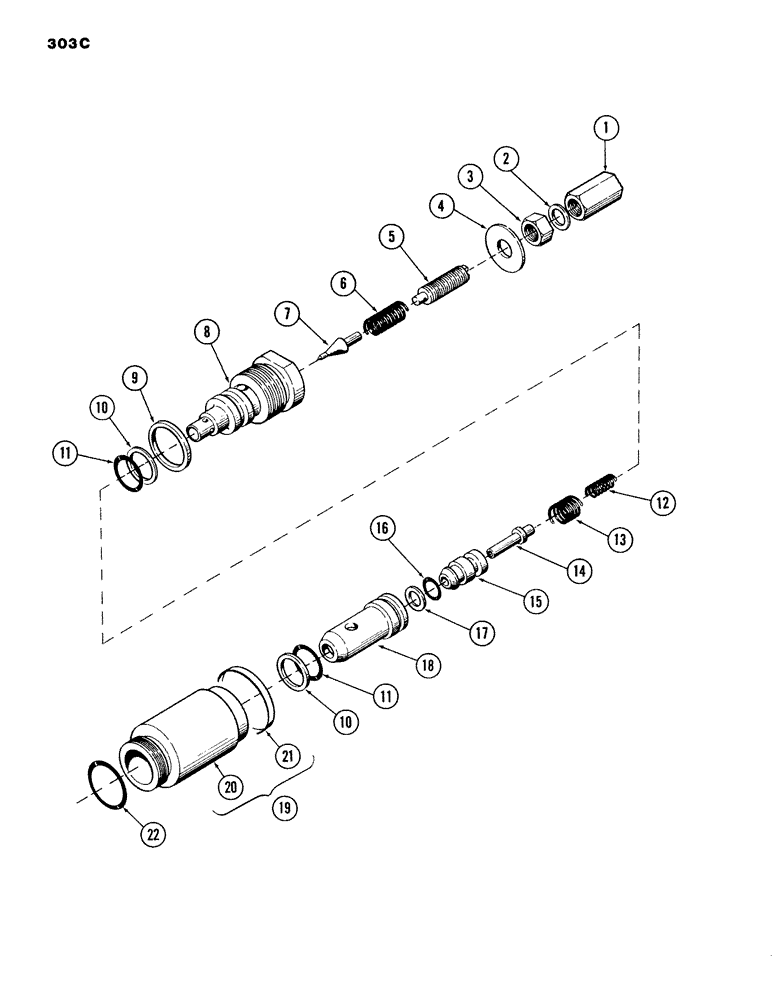

Запчасти Case 980B (303C) - PORT RELIEF CARTRIDGE, (HYDRECO) (07) - HYDRAULIC SYSTEM

S107656

VALVE

CARTRIDGE - port relief - set at 3200 PSI, Includes: Ref. 1 - 22

6шт.

S107657

CARTRIDGE - port relief - set at 2500 PSI, Includes: Ref. 1 - 22

6шт.

1

L32299

NUT

- acorn

1шт.

2

D26763

WASHER

2шт.

3

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam

1шт.

4

S116740

SEAL - washer

1шт.

5

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

- adjusting

1шт.

6

D24763

SPRING

1шт.

7

S116729

POPPET

1шт.

8

S116732

CAP

1шт.

9

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING

1шт.

10

S116737

BACK-UP RING

RING - backup

1шт.

11

S116739

O-RING

"O" RING

2шт.

12

S116733

SPRING

1шт.

13

S116734

SPRING

1шт.

14

S116728

SEAT

1шт.

15

S116731

CHECK

1шт.

16

S116738

O-RING

"O" RING

1шт.

17

S116735

BACK-UP RING

RING - backup

1шт.

18

S116730

CHECK

1шт.

19

S116445

CAP

ASSEMBLY, Includes: Ref. 20 - 22

1шт.

20

S116446

CAP

1шт.

21

S116447

SLEEVE

1шт.

22

S116736

O-RING

"O" RING

1шт.

IF USING P/N S117202 FOR SEAL REF#4 IT IS NSS.

1шт.
