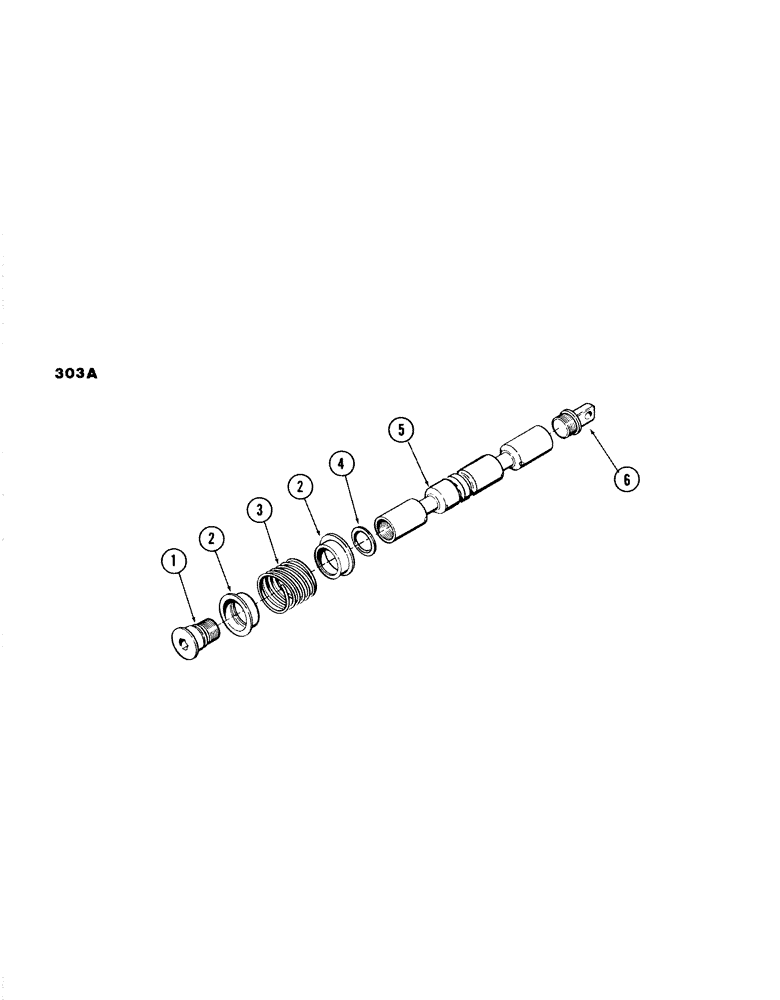

Запчасти Case 980B (303A) - PLUNGER ASSEMBLIES FOR:, MAIN CONTROL VALVES, (HYDRECO) (07) - HYDRAULIC SYSTEM

1

S116791

CAP

- end - Plunger (Used on right track, left track, crowd and tool functions of valve)

1шт.

2

S116790

SUPPORT

RETAINER - spring - Plunger (Used on right track, left track, crowd and tool functions of valve)

2шт.

3

S116794

SPRING

- Plunger (Used on right track, left track, crowd and tool functions of valve)

1шт.

4

S116793

SPACER - Plunger (Used on right track, left track, crowd and tool functions of valve)

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - Plunger (Used on right track, left track, crowd and tool functions of valve)

1шт.

6

S116792

EYE - plunger - Plunger (Used on right track, left track, crowd and tool functions of valve)

1шт.

1

S116791

CAP

- end - Plunger (Used on fast hoist, leveler or auxiliary functions of valve)

1шт.

2

S116790

SUPPORT

RETAINER - spring - Plunger (Used on fast hoist, leveler or auxiliary functions of valve)

2шт.

3

S116794

SPRING

- Plunger (Used on fast hoist, leveler or auxiliary functions of valve)

1шт.

4

S116793

SPACER - Plunger (Used on fast hoist, leveler or auxiliary functions of valve)

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - Plunger (Used on fast hoist, leveler or auxiliary functions of valve)

1шт.

6

S116792

EYE - Plunger (Used on fast hoist, leveler or auxiliary functions of valve)

1шт.

1

S116791

CAP

- end - Plunger (Used on swing and hoist functions of valves)

1шт.

2

S116790

SUPPORT

RETAINER - Plunger (Used on swing and hoist functions of valves)

2шт.

3

S116794

SPRING

- Plunger (Used on swing and hoist functions of valves)

1шт.

4

S116793

SPACER - Plunger (Used on swing and hoist functions of valves)

1шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - Plunger (Used on swing and hoist functions of valves)

2шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - Plunger (Used on swing and hoist functions of valves)

1шт.

7

S116788

BACK-UP RING

RING - backup - Plunger (Used on swing and hoist functions of valves)

1шт.

8

S116787

O-RING

"O" RING - Plunger (Used on swing and hoist functions of valves)

1шт.

9

S116785

CHECK - Plunger (Used on swing and hoist functions of valves)

1шт.

10

S116786

SPRING - check - Plunger (Used on swing and hoist functions of valves)

1шт.

11

S116792

EYE - plunger - Plunger (Used on swing and hoist functions of valves)

1шт.
