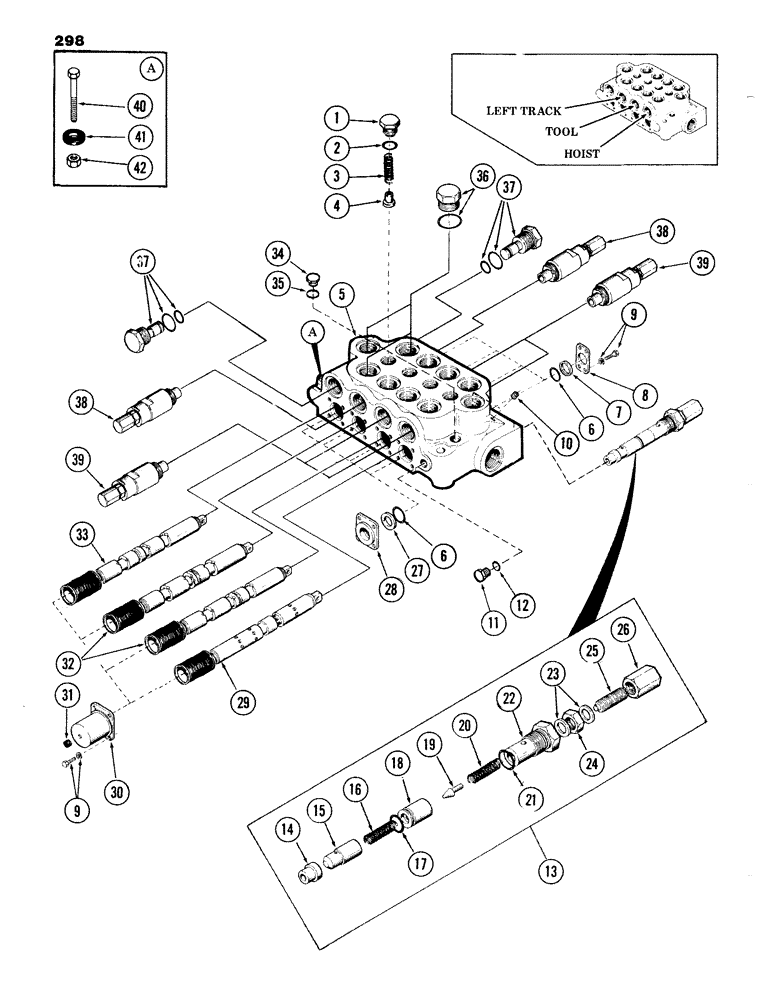

Запчасти Case 980B (298) - 4-SPOOL MAIN CONTROL VALVE, (OUTSIDE), (WITHOUT LEVELER), (HYDRECO) (07) - HYDRAULIC SYSTEM

S514200

VALVE

- 4-spool main control, Includes: Ref. 1 - 39

1шт.

S610388

VALVE - basic, Includes: Ref. 1 - 35

1шт.

1

S116121

CAP

4шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

4шт.

3

S116126

SPRING

4шт.

4

S116120

VALVE, CHECK

CHECK

4шт.

5

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

6

S116131

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

8шт.

P/N S116131 HAS ID OF 1.290/1.302.

1шт.

7

S116127

SEAL

- wiper

4шт.

8

S116122

PLATE

4шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

32шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

32шт.

10

S116124

PLUG - orifice

1шт.

11

S116444

CAP

1шт.

12

S116443

O-RING

1шт.

13

S116442

KIT

VALVE - main relief, Includes: Ref. 14 - 26

1шт.

14

S116119

SEAT

- relief

1шт.

15

D72745

VALVE

CHECK

1шт.

16

D82724

SPRING

1шт.

17

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

18

S116118

VALVE POPPET

POPPET

1шт.

19

D24762

VALVE

POPPET

1шт.

20

D24763

SPRING

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

22

S82718

CAP

1шт.

23

D26863

WASHER

2шт.

24

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam

1шт.

25

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

- adjustable

1шт.

26

L32299

NUT

- acorn

1шт.

27

S116125

RING

- back up

4шт.

28

S116123

PLATE

4шт.

29

REF

INSTRUCTION

PLUNGER - (See Figure 303A)

2шт.

30

S116130

COVER

4шт.

31

D83096

PLUG

- bleeder

4шт.

32

REF

INSTRUCTION

PLUNGER - (See Figure 303A)

2шт.

33

REF

INSTRUCTION

PLUNGER - (See Figure 303A)

1шт.

34

S116129

CAP

1шт.

35

S116128

O-RING,0.949" OD x 0.097" Width

1шт.

36

S8985

PLUG

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

3шт.

37

REF

INSTRUCTION

VALVE - relief - (Set at 2500 PSI) - (See Figure 303C)

2шт.

38

REF

INSTRUCTION

VALVE - relief - (Set at 3200 PSI) - (See Figure 303C)

4шт.

39

S237978

PLUG

2шт.

S116368

O-RING

2шт.

S116369

O-RING

2шт.

40

S113428

CASE

BOLT - 1/2" x 5-1/4" NC hex (valve mounting)

3шт.

Replaced by S113432

1шт.

41

S115695

SPACER

- (below valve)

3шт.

42

131-70

NUT,1/2"-13, GB

NUT - lock - 1/2" NC hex

3шт.
