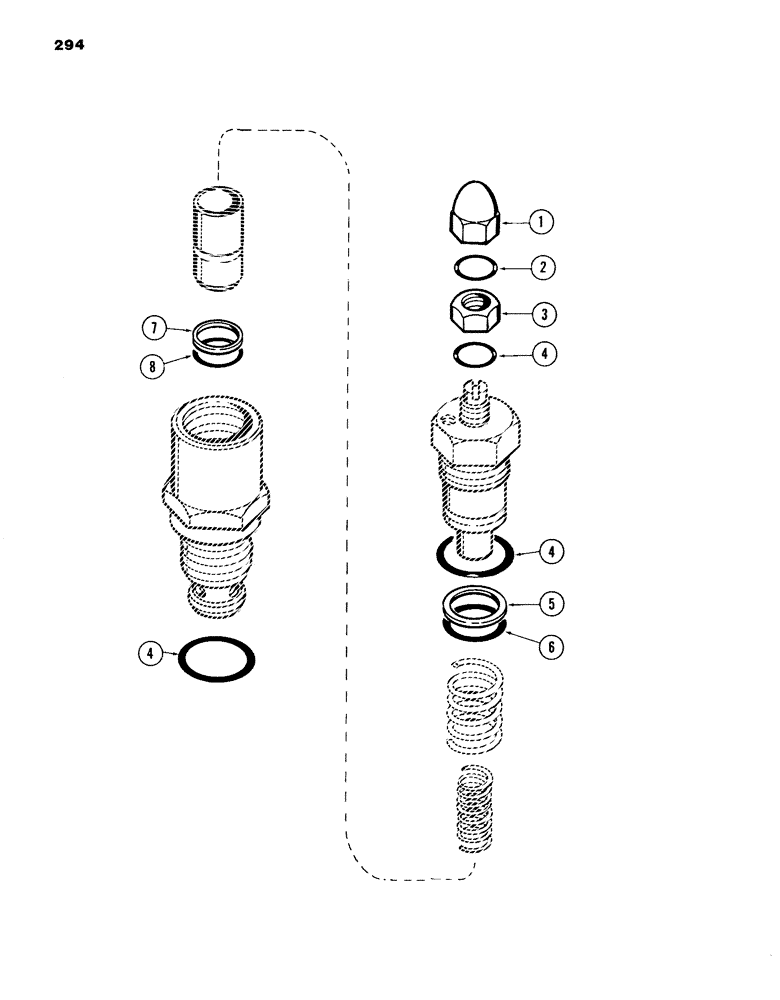

Запчасти Case 980B (294) - MAIN RELIEF CARTRIDGE, (USED ON UNITS WITH PIN 6204004 & 6204006 & AFTER), (HUSCO) (07) - HYDRAULIC SYSTEM

S237784

VALVE, PRESSURE RELI

CARTRIDGE, main relief -set at 3000 PSI, Includes: Ref. 1 - 8

1шт.

1

S116073

CAP

NUT, acorn

1шт.

2

S116070

O-RING

2шт.

3

S116072

JAM NUT

jam

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

Part of seal kit, P/N S117194

1шт.

5

S84155

BACK-UP RING,76mm ID x 0.45mm Width

back up

1шт.

Part of seal kit, P/N S117194

1шт.

6

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

1шт.

Part of seal kit, P/N S117194

1шт.

7

C11865

RING

back up

1шт.

8

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.

Part of seal kit, P/N S117194

1шт.

9

S117194

SEAL KIT

seal, Includes: Ref. 4 thru 8

1шт.
