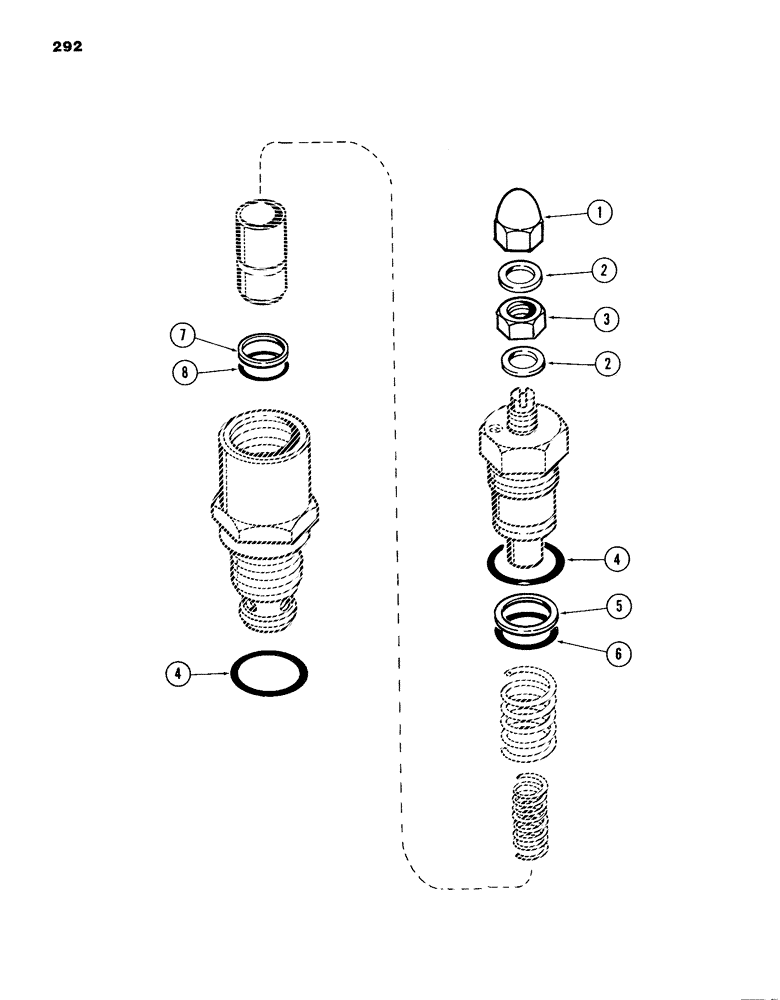

Запчасти Case 980B (292) - MAIN RELIEF VALVE, (USED ON UNITS PRIOR TO PIN 6204004 AND 6204005), (HUSCO) (07) - HYDRAULIC SYSTEM

NSS

NOT SOLD SEPARAT

VALVE, main relief - set at 3000 PSI - (for complete replacement order S237784 on Figure 294), Includes: Ref. 1 - 8

2шт.

1

129-536

NUT,Crown, 9/16"-18

acorn

1шт.

2

S93370

WASHER

2шт.

3

S93371

NUT

1шт.

4

S109966

O-RING

2шт.

5

S84155

BACK-UP RING,76mm ID x 0.45mm Width

back up

1шт.

6

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

1шт.

7

C11865

RING

back up

1шт.

8

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.
