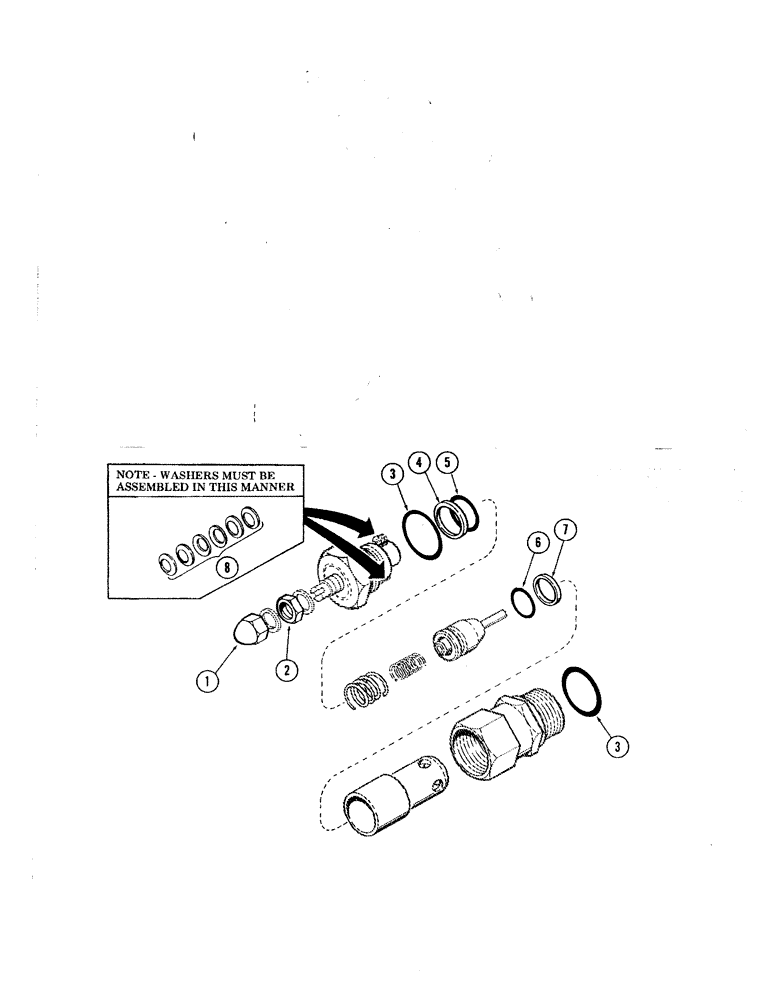

Запчасти Case 980B (290[01]) - PORT RELIEF ("R" SERIES) (HUSCO) (07) - HYDRAULIC SYSTEM

S239123

SPARE PART CARTRIDGE "R" series port relief valve - set at 3200 PSI, Includes: Ref. 1 - 8 1.5" OD x 2.62" L

3шт.

1

S116073

CAP

NUT - acorn

1шт.

2

S116072

JAM NUT

NUT - jam

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

Part of seal kit, P/N S117193

1шт.

4

S83071

BACK-UP RING

RING, back up

1шт.

Part of seal kit, P/N S117193

1шт.

5

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

O-RING

1шт.

Part of seal kit, P/N S117193

1шт.

6

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

O-RING

1шт.

Part of seal kit, P/N S117193

1шт.

7

S84098

BACK-UP RING,1/2" ID x 11/16" OD

RING - back up

1шт.

Part of seal kit, P/N S117193

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER

12шт.

9

S117193

SEAL KIT

KIT - seal, Includes: Ref. 3 - 7

1шт.
