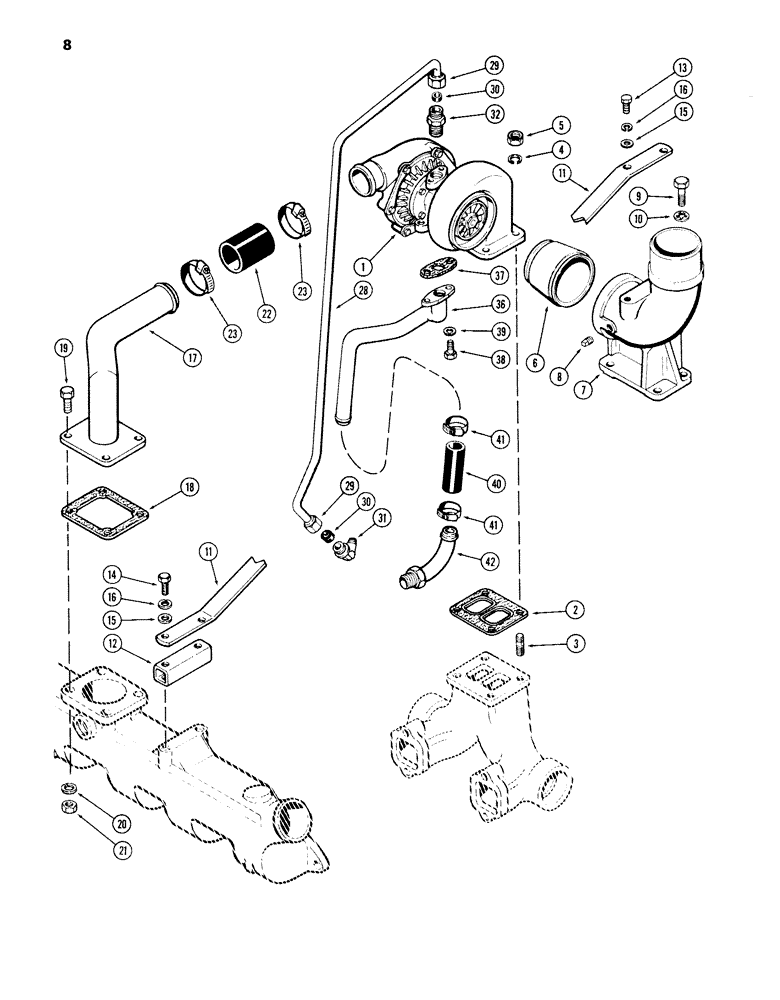

Запчасти Case 980B (008) - TURBO-CHARGER SYSTEM, 504BDT DIESEL ENGINE (01) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

980B Crawler Exc.SN 6203751 & Aft.

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBO-CHARGER ASSY - (rebuilt unit)

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, Turbo-Charger Assy - (Do not use this part no. for ordering. This part no. is to be used only in requesting return authority on used turbo-chargers to be returned for credit)

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbo-charger-manifold

1шт.

3

G102128

BOLT

STUD - turbo to manifold, 3/8" NC x 1-7/16"

4шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC HEX, Seez-Pruf

4шт.

6

A65554

TUBE

CONNECTOR - exhaust elbow to turbo, no gaskets or packings are used

1шт.

7

A61941

ELBOW

ELBOW - exhaust

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - elbow, 1/4" PT, square head

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Elbow Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

11

A61944

BRACE

BRACE - exhaust elbow to intake manifold

1шт.

12

A67057

SPACER

SPACER - brace

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Brace to elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - brace to spacer, 3/8 x 2-1/2" NC hex

2шт.

15

95-6

WASHER,3/8"

WASHER - 3/8 x 1 x 1/16"

4шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

17

A150450

ELBOW

ELBOW - turbo to intake manifold (Replaces A77242)

1шт.

18

A58910

GASKET

GASKET - elbow

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - elbow to manifold, 3/8 x 1-1/2" NC hex

4шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

4шт.

22

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

Elbow to turbo (Replaces A58894)

1шт.

23

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, (33.34 to 57.15 mm) #28, 1.31/2.25 Type F Worm

2шт.

28

A66037

TUBE

TUBE ASSY - oil supply, Includes: Ref. 29 and 30

1шт.

Does not have a 90 degree bend in it where it goes into turbo, as illustrated. If tube from machine has 90 degree bend, it is A64375. See straight 980 catalog for correct illustration of parts.

1шт.

29

222-114

NUT,5/8"-24

NUT - for 3/8" tube (9.53 mm)

2шт.

30

222-154

SLEEVE,3/8" Tube

SLEEVE - for (9.53 mm) 3/8" Tube

2шт.

31

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - 90 degrees (in filter head)

1шт.

32

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - (tube to elbow)

1шт.

36

A62518

TUBE

TUBE - oil drain

1шт.

37

A58892

GASKET,1.59mm Thk

GASKET - drain tube

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Tube to turbo Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

39

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

40

A58893

HOSE

HOSE - drain tube, 1/4" ID x 3-1/2" (6.35 x 88.9mm)

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

2шт.

42

A58897

FITTING

FITTING -, Serial Range: hose-block

1шт.
