Запчасти Case 980B (286) - 4-SPOOL MAIN CONTROL VALVE, (OUTSIDE VALVE), (HUSCO) (07) - HYDRAULIC SYSTEM

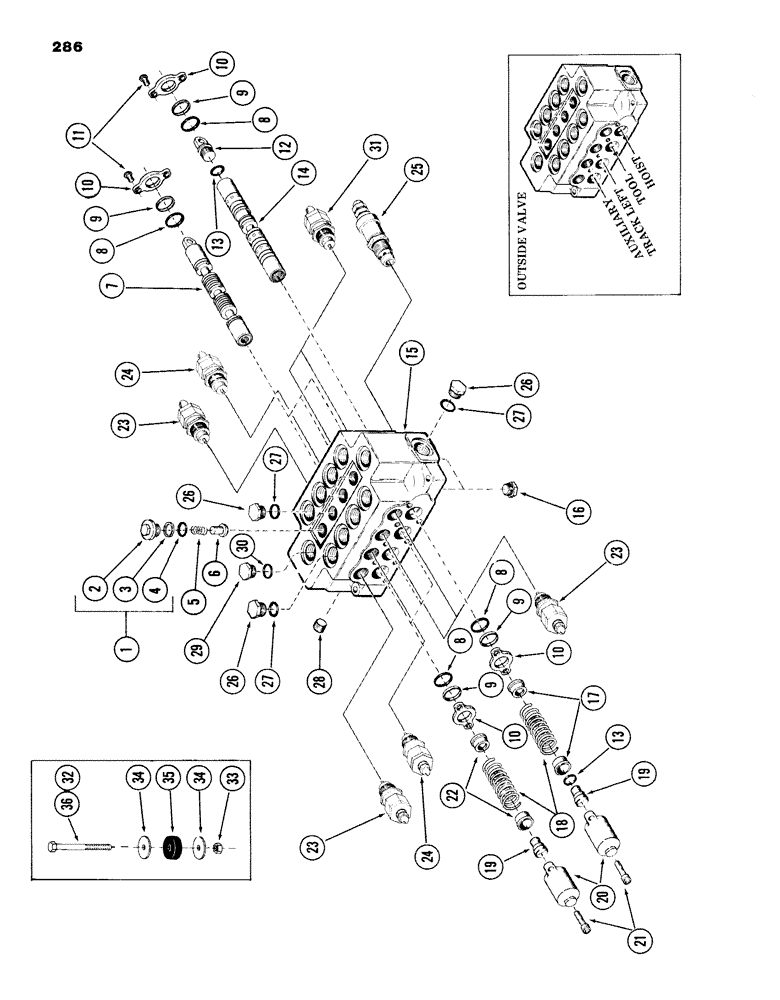

Схема запчастей Case 980B - (286) - 4-SPOOL MAIN CONTROL VALVE, (OUTSIDE VALVE), (HUSCO) (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

S514783

VALVE

- 4-spool main control - (used without OPTIONAL leveler), Includes: Ref. 1 - 31

1шт.

S514784

VALVE

- 4-spool main control - (used with OPTIONAL leveler), Includes: Ref. 1 - 31

1шт.

S606891

VALVE

- basic, Includes: Ref. 1 - 22

1шт.

1

S105062

PLUG

ASSEMBLY, Includes: Ref. 2 - 4

4шт.

2

S105094

PLUG

1шт.

3

S105095

RING

- backup

1шт.

4

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1шт.

5

S13715

SPRING

4шт.

6

S13716

VALVE POPPET

POPPET

4шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

8

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

8шт.

9

S62092

WIPER

8шт.

10

S13829

PLATE

- seal

8шт.

11

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - machine 3/8" x 1/2" NC

8шт.

12

S62289

END

- plunger

1шт.

13

S6061

O-RING,0.639" ID x 0.09" Width

.644" ID x .818" OD

2шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

16

S105060

PLUG

- pipe

2шт.

17

S107817

SEAT

- spring

2шт.

18

S109959

SPRING

4шт.

19

S62290

BOLT

4шт.

20

S62278

CAP

- plunger

4шт.

21

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" x 1" NC hex hd Grade 8

8шт.

22

S62288

SEAT

- spring

6шт.

23

REF

INSTRUCTION

CARTRIDGE - port relief - set at 3200 PSI - (See Figure 290)

4шт.

24

REF

INSTRUCTION

CARTRIDGE - port relief - set at 2500 PSI - (See Figure 290)

2шт.

25

REF

INSTRUCTION

CARTRIDGE - main relief - set at 3000 PSI - (See Figures 292 or 294)

1шт.

26

S8985

PLUG

- 1-5/16" male, Includes: Ref. 27

3шт.

27

S6069

O-RING,1.171" ID x 0.116" Width

- 1.171" ID x 1.403" OD

3шт.

28

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe - 1" NPT male hex socket (used with S514784 valve only)

1шт.

Used with S514784 valve only

1шт.

29

S8985

PLUG

- pipe - 1-5/16" male - (used with S514783 valve only), Includes: Ref. 30

1шт.

Used with S514783 valve only

1шт.

30

S6069

O-RING,1.171" ID x 0.116" Width

- 1.171" ID x 1.403" OD

1шт.

Used with S514783 valve only

1шт.

31

REF

INSTRUCTION

CARTRIDGE - hoist and tool port relief - "R" series - set at 3200 PSI - (See Figure 290)

1шт.

32

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- 1/2" - 13 NC x 4-1/4" Gr 5 - (used on units with PIN 6204051 and after)

2шт.

113-2428

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

Used on units prior to PIN 6204051 Hex, 1/2"-13 x 5 1/4", G5

2шт.

S955796 (COMPLETE SWING REDUCER) SUBBED TO S956942.

1шт.

33

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

3шт.

34

196-10

WASHER,.521" x 2" x .134", HDN

flat - 1/2" - (used on units prior to PIN 6204051)

6шт.

35

S110886

MOUNTING PARTS

MOUNT, lord - (used on units prior to PIN 6204051)

3шт.

36

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(Used on units with PIN 6204051 and after) Hex, 1/2"-13 x 3", G5

1шт.

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- 1/2" - 13 NC x 3-3/4" Gr 5 - (used on units prior to PIN 6204051)

1шт.

Выбрано товаров: 45
