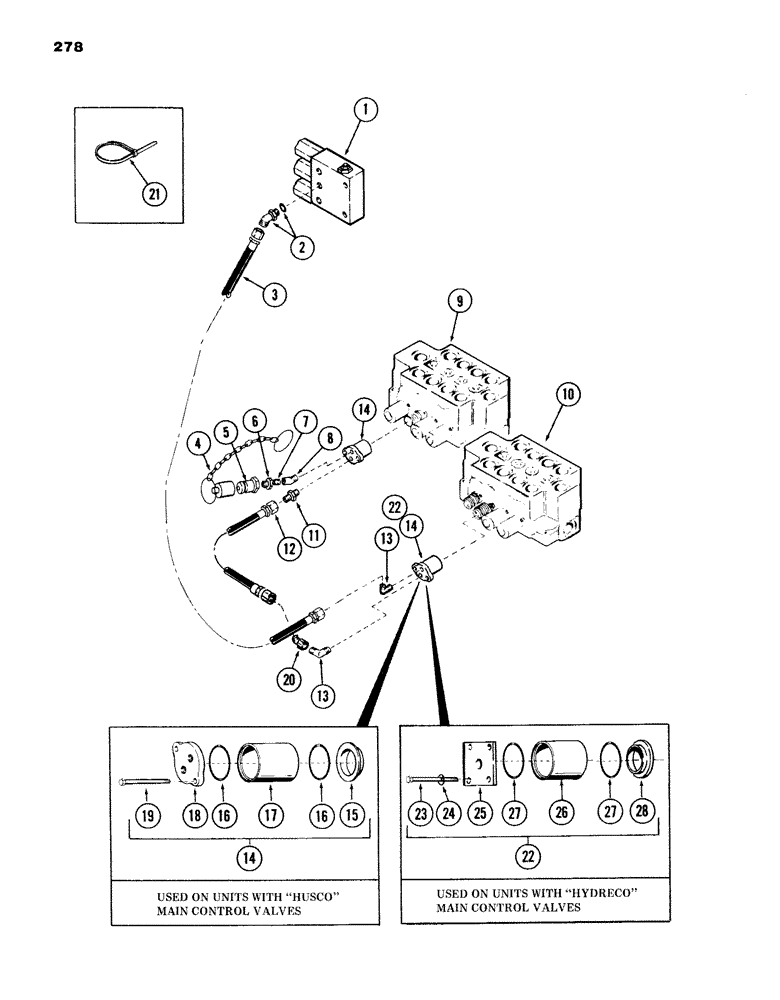

Запчасти Case 980B (278) - DRIVE LOCK TUBING, (USED ON UNITS WITH PIN 6204051 AND AFTER) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - solenoid monoblock (See Figure 282)

1шт.

2

S11252

ELBOW

- 45 degrees - 3/8" tube x 9/16" - 18 adjustable

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

S227396

HOSE ASSY.

HOSE - solenoid valve to main control valve

1шт.

4

S206608

CAP

- dust

1шт.

5

S206607

DISC

COUPLER - quick

1шт.

6

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer - 1/4" PT x 1/8" PT

1шт.

7

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - pipe - 1/8" PT

1шт.

8

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

9

REF

INSTRUCTION

VALVE - 4 spool main control (See Figure 296)

1шт.

10

REF

INSTRUCTION

VALVE - 4 spool main control (See Figure 298)

1шт.

11

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , 3/8" tube 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

12

S227395

HOSE

- main control valve to main control valve

1шт.

13

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees - 3/8" tube x 1/8" PT

2шт.

14

S232345

KIT

- spool end cap - (used on units with HUSCO control valves), Includes: Ref. 15 - 19

2шт.

15

S111267

WASHER

1шт.

16

S6394

O-RING

2шт.

17

S111268

SLEEVE

TUBE - cylinder

1шт.

18

S111269

HEAD

1шт.

19

S95658

BOLT

- 3/8" x 3-1/4" NC (Grade 8)

2шт.

20

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degrees - 3/8" tube x 9/16" - 18

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

4шт.

22

S614908

CAP

KIT - spool end cap - (used on units with HYDRECO control valves), Includes: Ref. 23 - 28

2шт.

23

13-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

- 1/4" x 3-1/2" NC (Grade 5)

4шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

25

S238444

CAP

- end

1шт.

26

S238445

SLEEVE

1шт.

27

S5728

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2шт.

28

S238446

BACK-UP RING

RETAINER

1шт.
